5.7.1.2 Editing machine name
To edit the machine name, use
f/g to highlight the context menu item ‘Enter
name’. Confirm selection by pressing

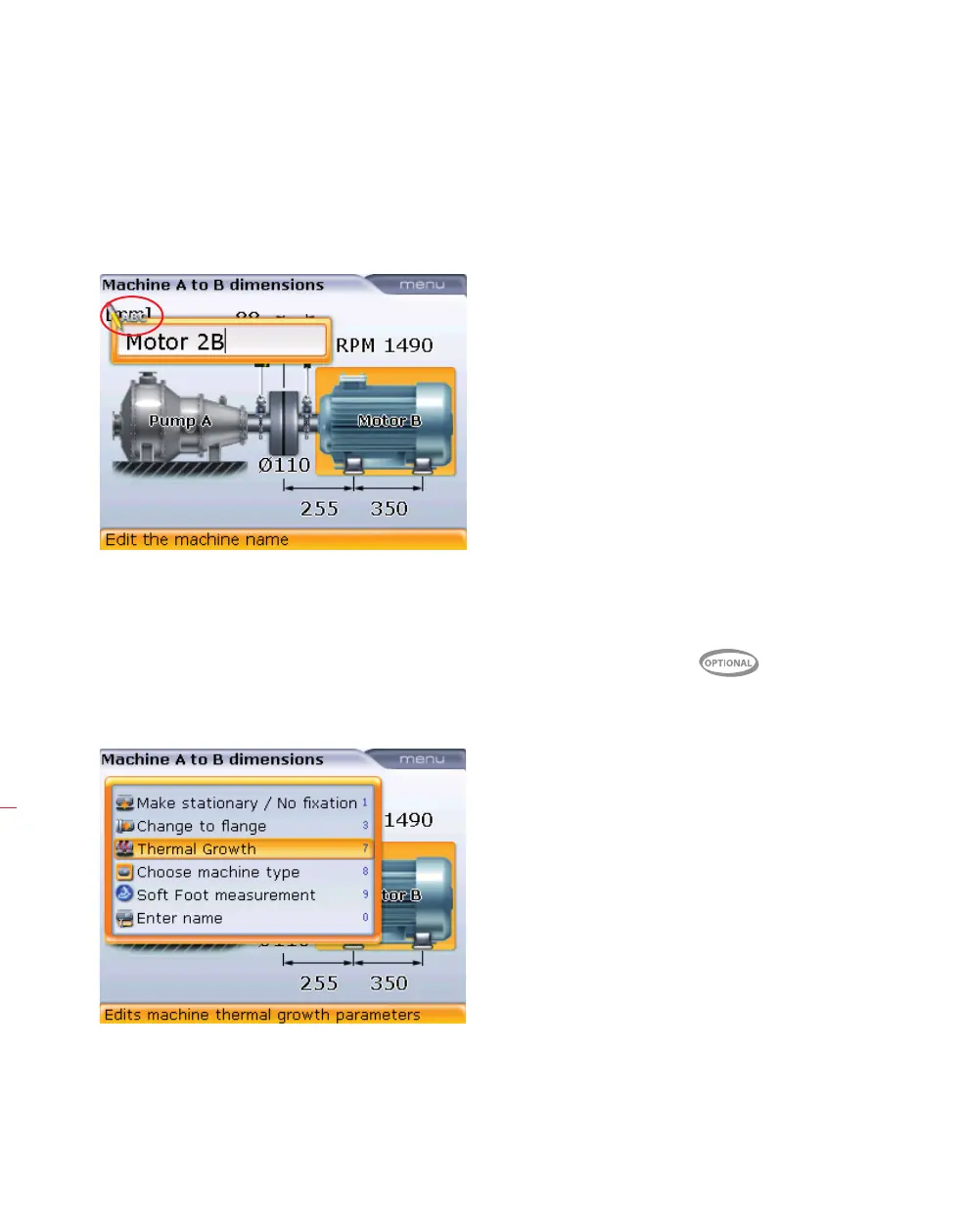

e. The editing box appears and the machine
name may be edited.
Use the data entry keys to edit the machine name.
5.7.2 Thermal growth
Thermal growth values can be entered only when the machine is defined as moveable.
To enter thermal growth values, highlight the context menu item ‘Thermal Growth’
using either
f or g.
Press
e. The “Thermal growth” screen appears.
When entering names that
contain both upper and lower
case characters as well as
numerals, use
o to cycle
through the three options.
Press and hold down
o while
observing the status indicator at
the top left corner of the editing
box. This displays the type of
character to be entered.
Empty spaces are entered by
pressing
0.
Note: To be able to enter
thermal growth values,
coupling target values
and dial gauge values, an
optional firmware module
is necessary. Please order
part number ALI 12.713
[Targets, Thermal Growth
and Dial Gauge Target
Input] to activate the
features.
