PRÜFTECHNIK OPTALIGN smart RS5 BT User Manual

Horizontal shaft alignment
51

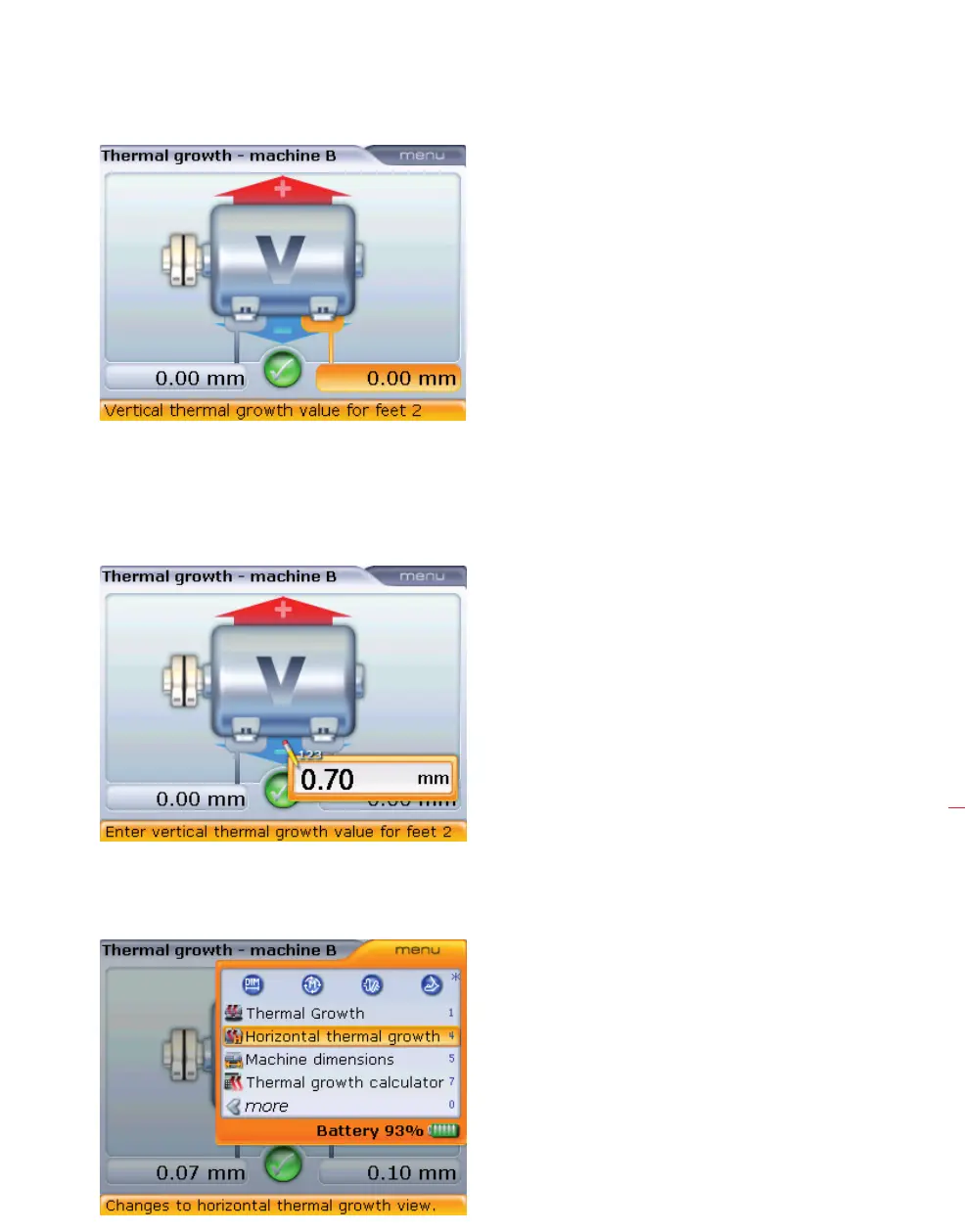

Use the navigation keys to highlight the ‘feet pair’ where thermal growth is to be
entered. The editing box appears when any data entry key is pressed. Use the data
entry keys to enter the thermal growth value in the vertical orientation, cycling
through the feet pairs using the navigation keys.
To enter values in the horizontal orientation, press
q while in the “Thermal growth”
screen. The context menu as shown below appears.
