OPTALIGN smart RS5 BT handbook
36
Both vertical and horizontal results show the foot position relative to the centerline of
machine designated stationary.
Positive values indicate that feet of machine designated movable are upwards or
away from viewer. Negative values indicate that feet of machine designated movable
are downwards or towards the viewer. The alignment condition is indicated by the
tolerance symbol and the corresponding lit OPTALIGN smart computer alignment
condition LED.

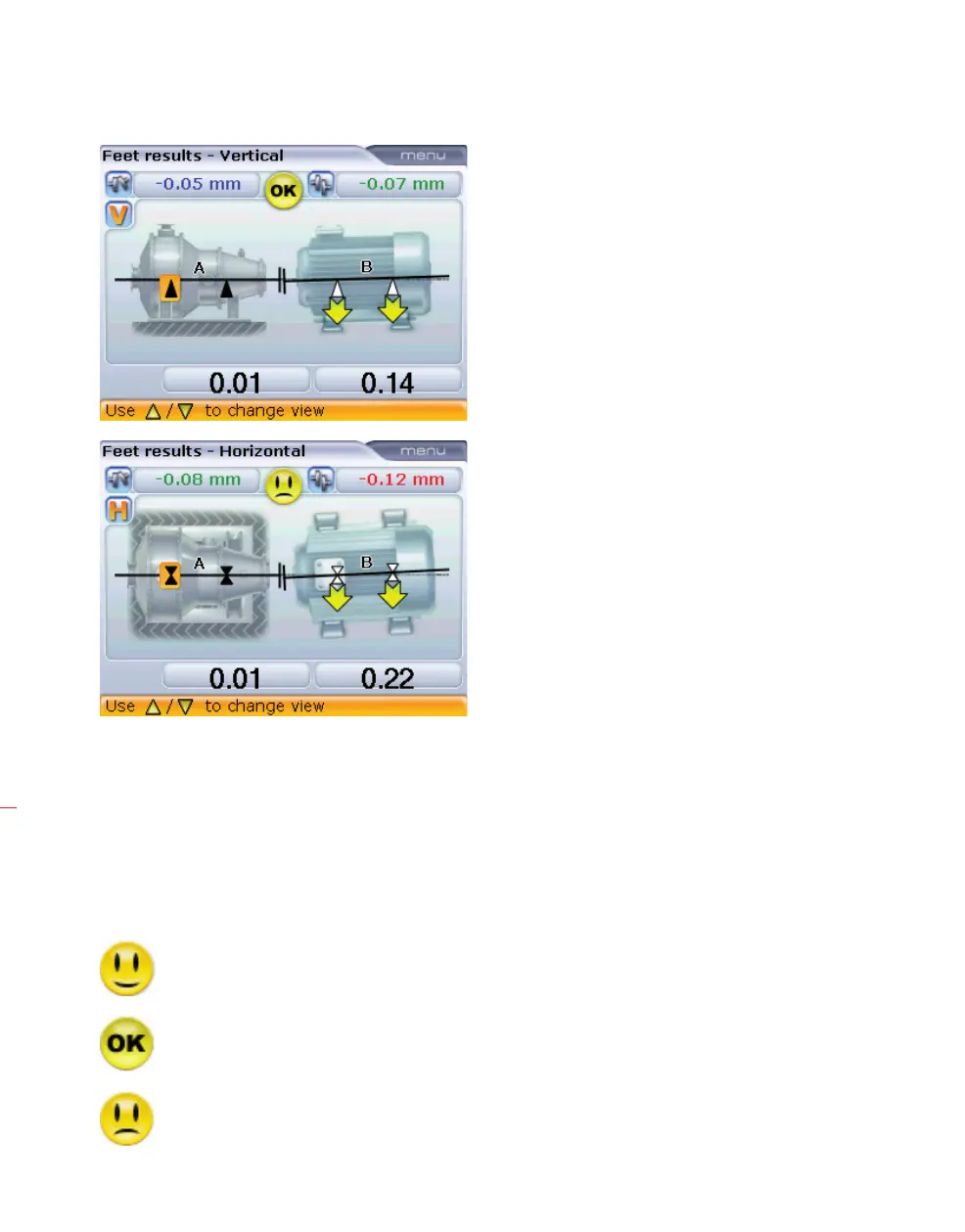

Vertical position results
( the ‘OK’ smiley indicates
alignment within tolerance
but can be improved by
aligning the machine to
obtain a happy smiley )
Horizontal position results
( a sad “smiley” indicates
alignment out of tolerance)
A happy smiley (with blue LED lit): values within excellent
tolerances
An “OK” icon (with green LED lit): values in acceptable
tolerances
A sad smiley (with red LED lit): values out of tolerance
