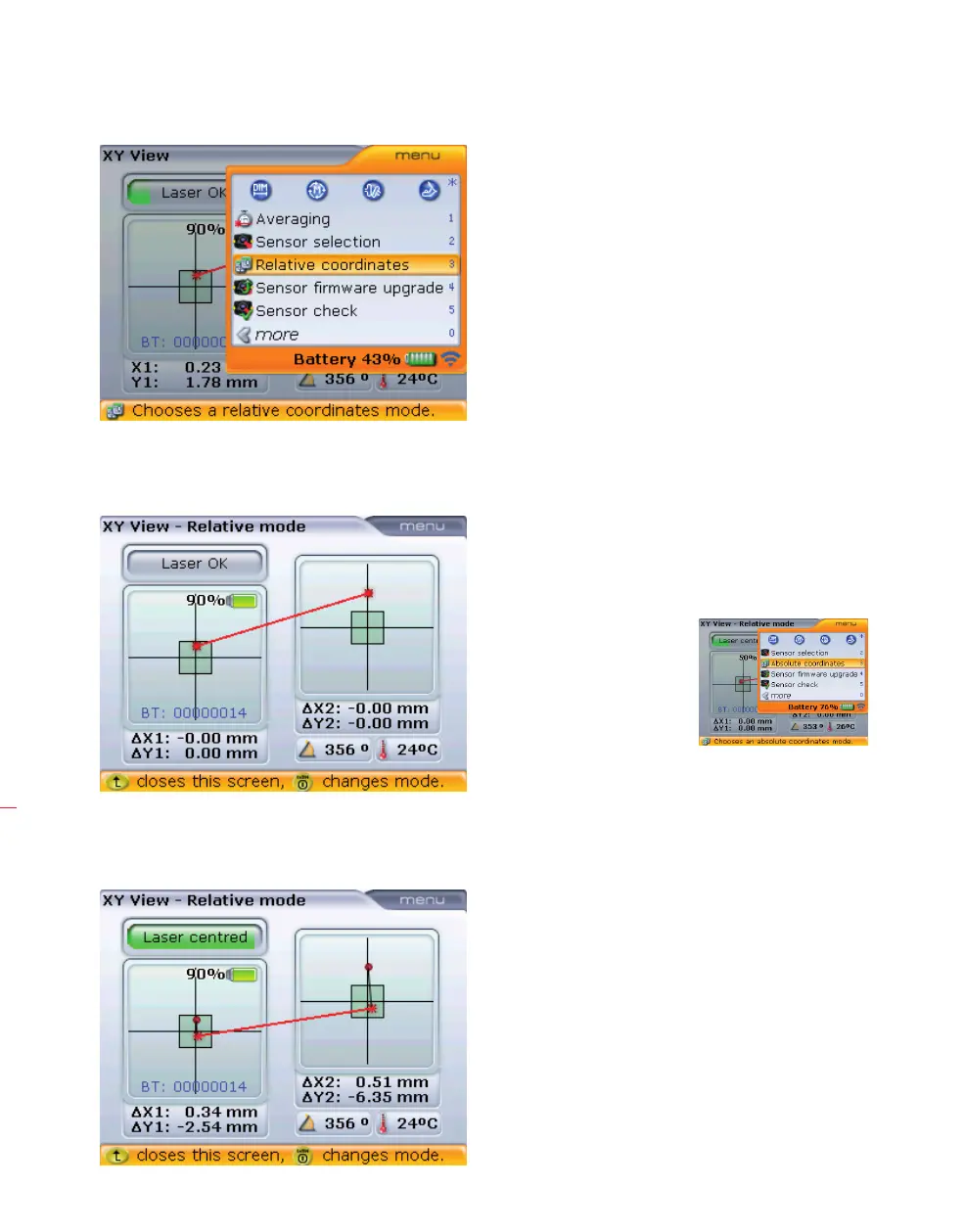

Use g/f to highlight ‘Relative coordinates’. Pressing e to confirm selection
sets the current laser dot position at 0,0 on both detectors.
If the laser beam dot is adjusted while in the “Relative mode” screen, it traces a path
showing the laser dot movement:
The adjusted beam position
is set to ‘0,0‘ on both
detectors to serve as a
reference.
Press
e to toggle
between the reference and
the absolute values. This can
also be done via the “XY
View” screen context menu
item ‘Absolute coordinates’.
The new absolute positions
are ‘0.3, -2.5’ and
‘0.5, -6.4’.
