OPTALIGN smart RS5 BT handbook
150

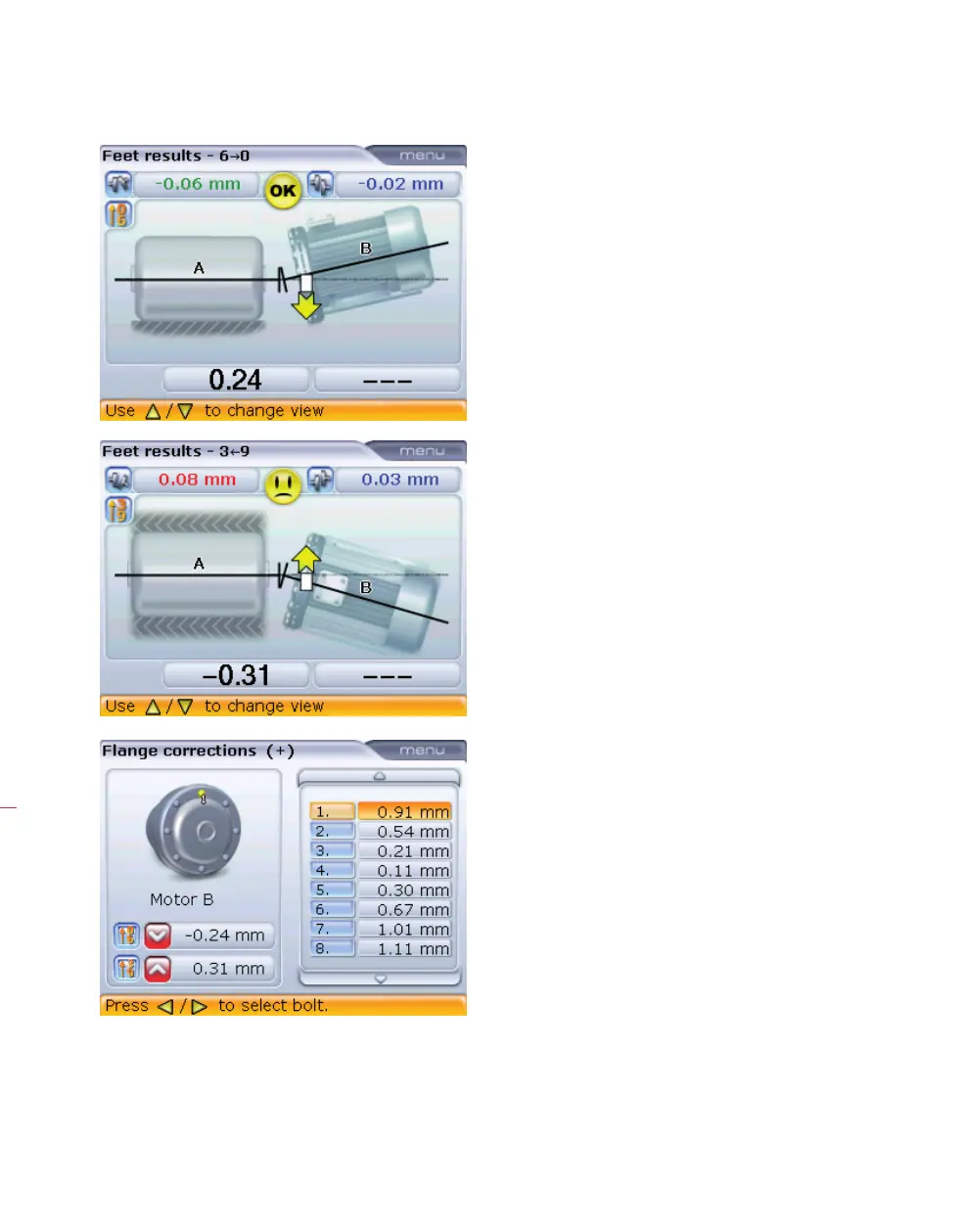

The shim corrections are numbered to correspond with the bolt positions. The bolt
position corresponding to the currently highlighted calculated shim correction value
appears numbered and highlighted with a yellow dot.
Use
i/h to cycle through the shim values.
In this example, the sad face
smiley indicates that the
flange needs to be adjusted
in the 0-6 direction.
The shimming correction
value (0.91 mm) and
the corresponding bolt
(position 1) are highlighted
automatically as shown.
