9.2.1 Checking sensor charge capacity
The charge capacity of the sensor is checked from the “Measurement” screen. Use
i/h and highlight ‘Exit’. Press e to confirm selection and exit the update wizard.
In the “Measurement” screen, the sensor charge capacity is displayed by the battery
icon and the percentage.
Charge the sensor if not fully charged.
9.2.2 Proceeding with the sensor firmware update

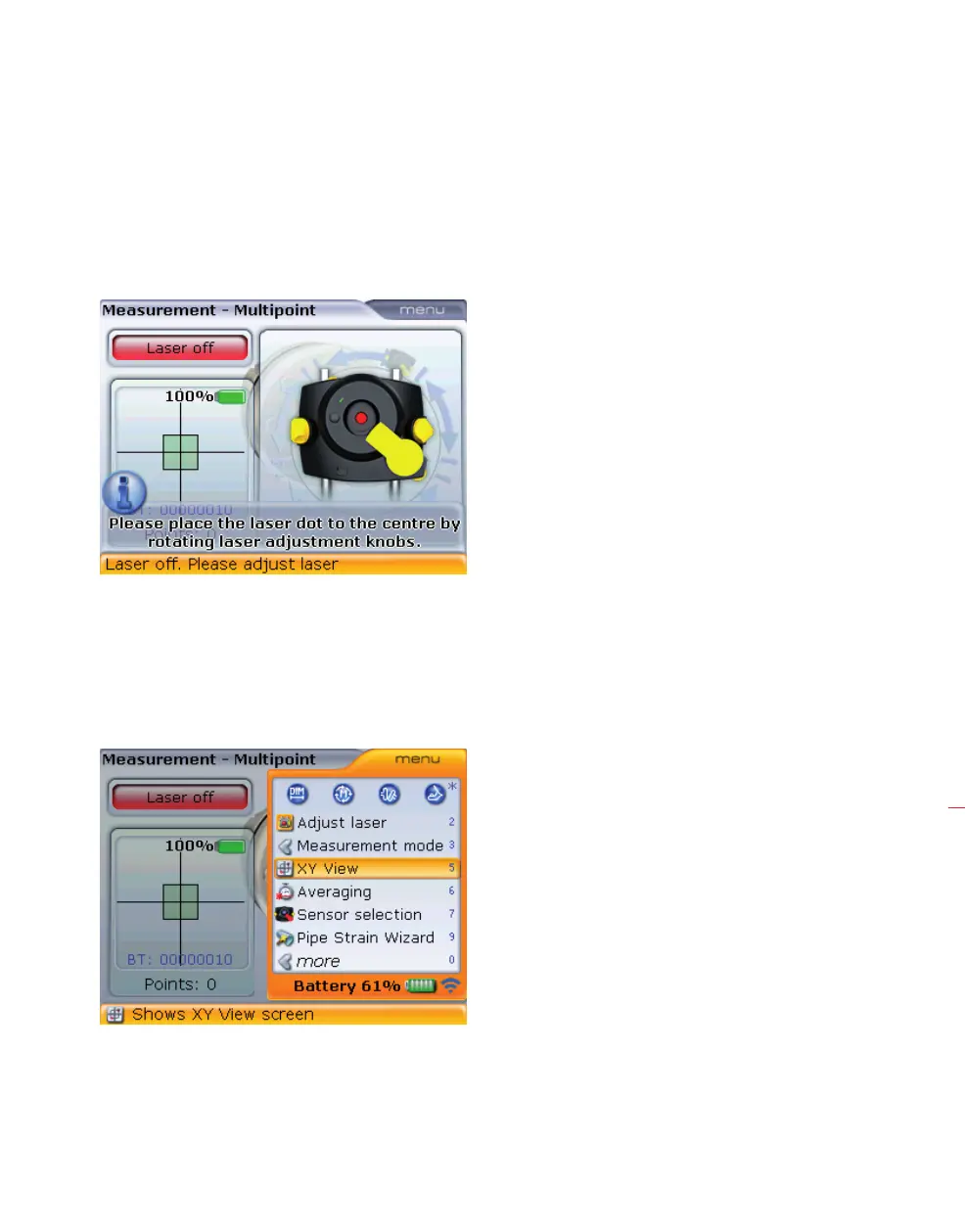

To proceed with the update after exiting the wizard, press q while in the
“Measurement screen then use g/f and highlight the menu item ‘XY View’.
Press e to confirm selection. The “XY View” screen opens. Press q while in the
“XY View” screen then use g/f and highlight the menu item ‘Sensor firmware
upgrade’.
