Appendix
183

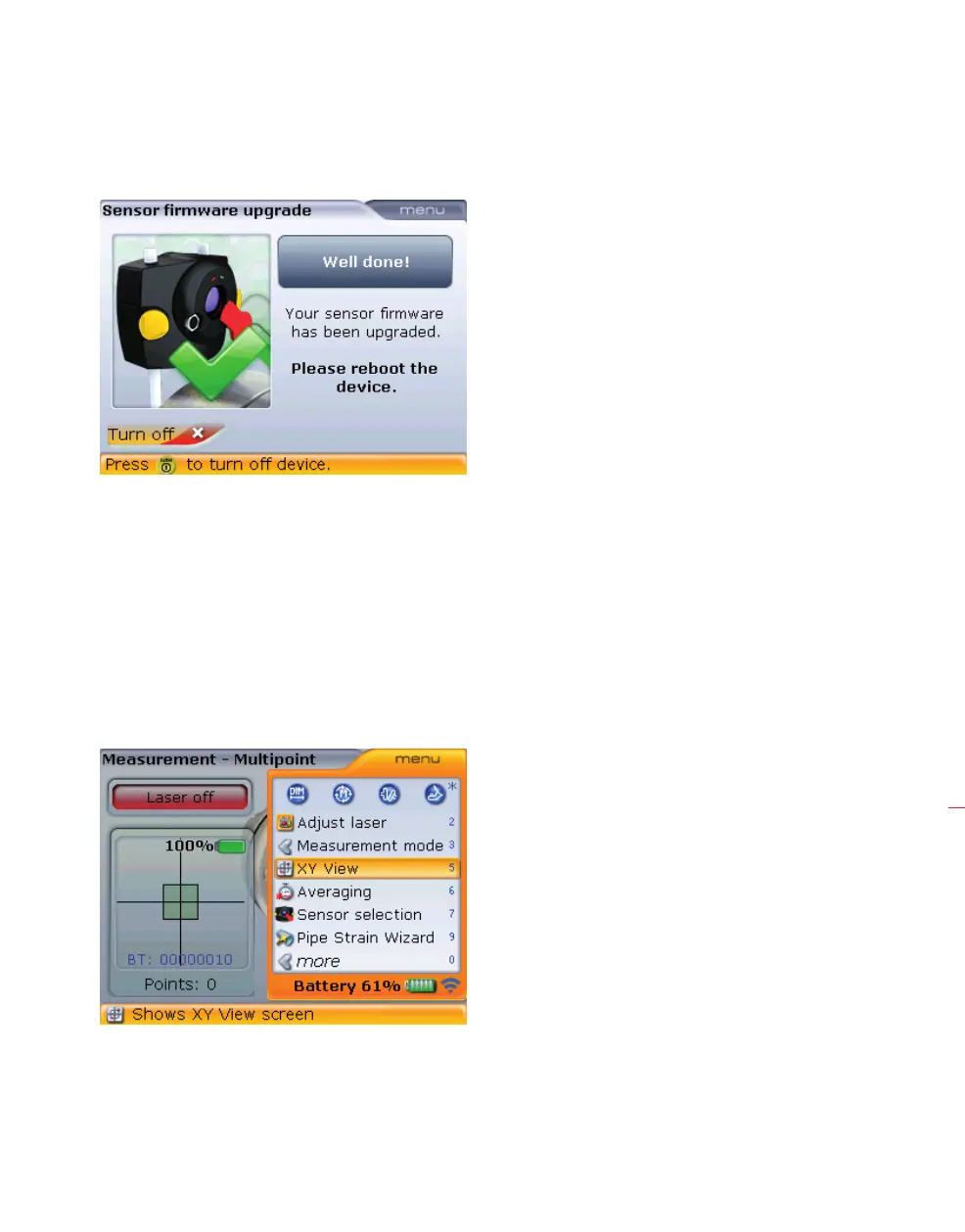

After successful completion of the sensor update, the following screen appears.
Reboot the OPTALIGN smart computer to resume with measurement.
9.2.3 Checking sensor firmware version
The firmware version of the RS5 BT sensor may be checked at any time. To do this,
proceed as follows.
1. Switch the sensor on.
2. Press
m to access the measurement screen. While in the measurement screen,
press
q to display the context menu.
3. With the context menu displayed, use
f/g and highlight “XY View”.
4. Press
e to confirm selection. The XY View screen appears.
5. With the XY View screen displayed, press
q to display the context menu. Use
f/g to highlight the menu item “Sensor check”.
