OPTALIGN smart RS5 BT handbook
186
Spacer shafts and
membrane (disk)
couplings

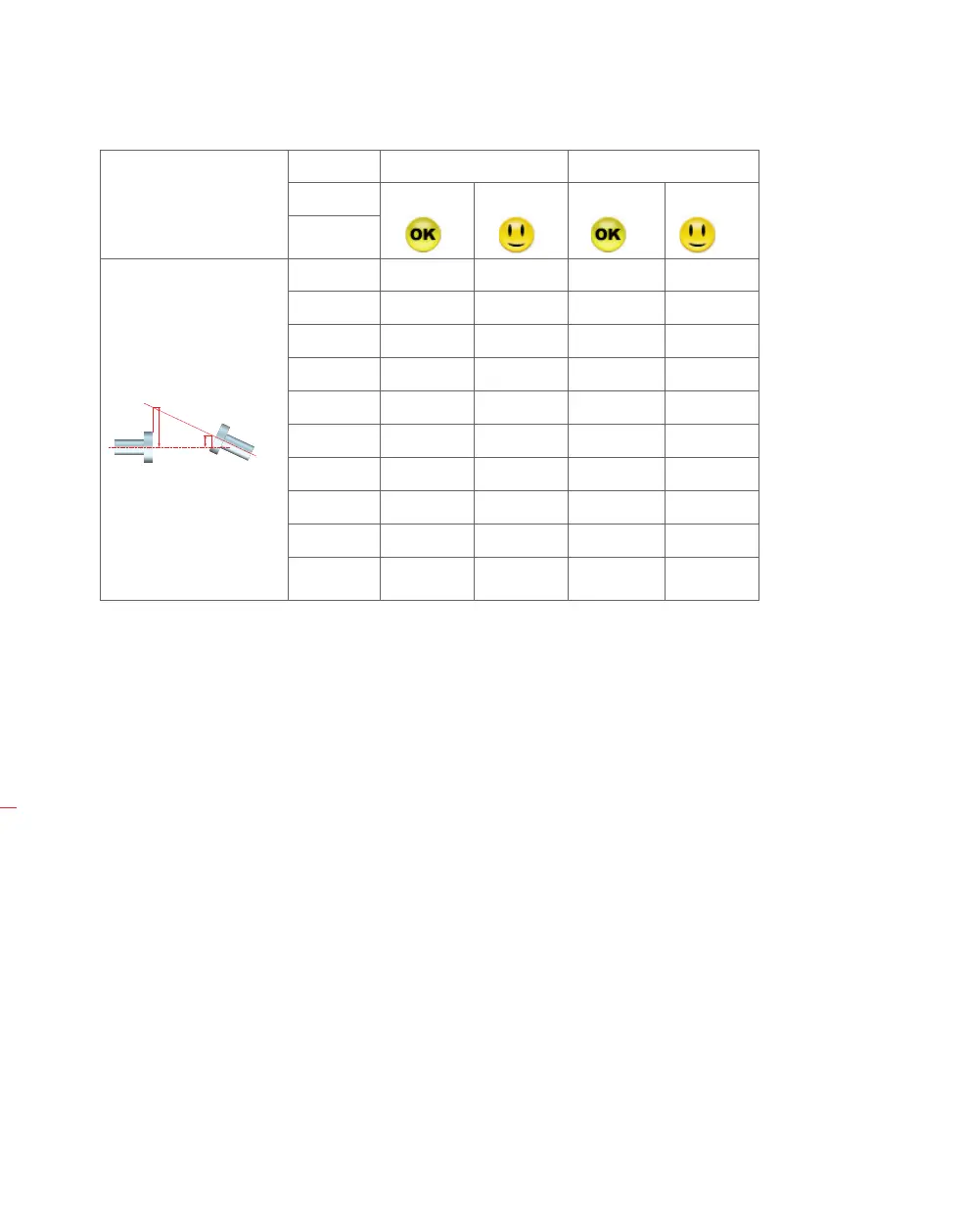

[RPM] metric [mm] inch [mils]
Acceptable Excellent Acceptable Excellent
OFFSET
(per 100 mm spacer
length or per inch of
spacer length)
600 3.0 1.8
750 0.25 0.15
900 2.0 1.2
1200 1.5 0.9
1500 0.12 0.07
1800 1.0 0.6
3000 0.07 0.04
3600 0.5 0.3
6000 0.03 0.02
7200 0.3 0.2
