5.7.4 Coupling properties

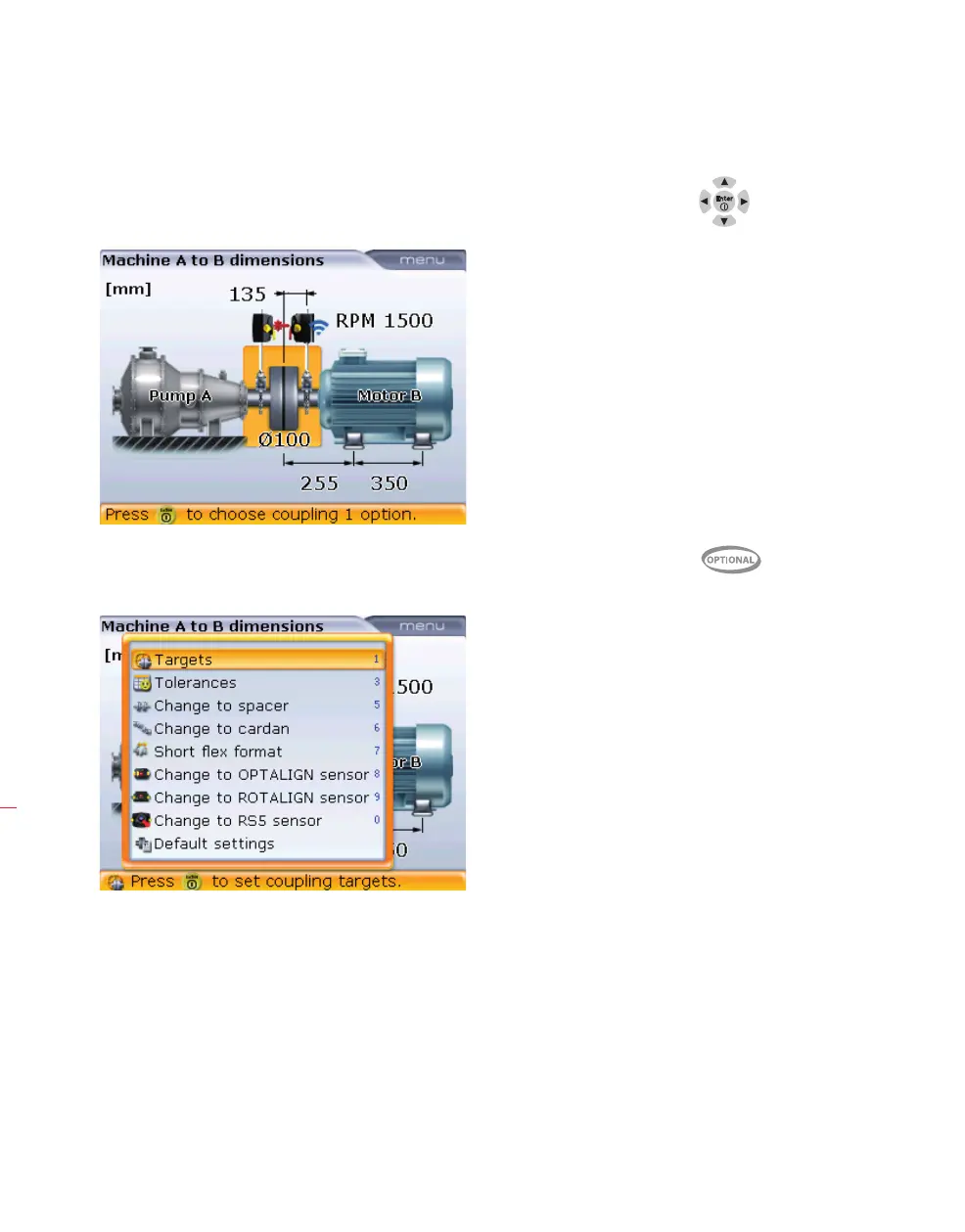

Coupling properties are entered and edited in the same manner as machine properties.
Use the navigation keys to highlight the coupling.
With the coupling highlighted, pressing
e reveals the coupling parameters that can
be edited.
The menu may also be
used to reset the coupling
settings to default, i.e rpm is
1500, coupling diameter is
100 mm and the tolerance
table is based on 50 Hz.
Coupling parameters that
can be edited include:
 coupling targets
 user defined tolerance
values
 type of coupling [types
available are short flex,
cardan and spacer
shaft]
 sensor type option
