Horizontal shaft alignment
87

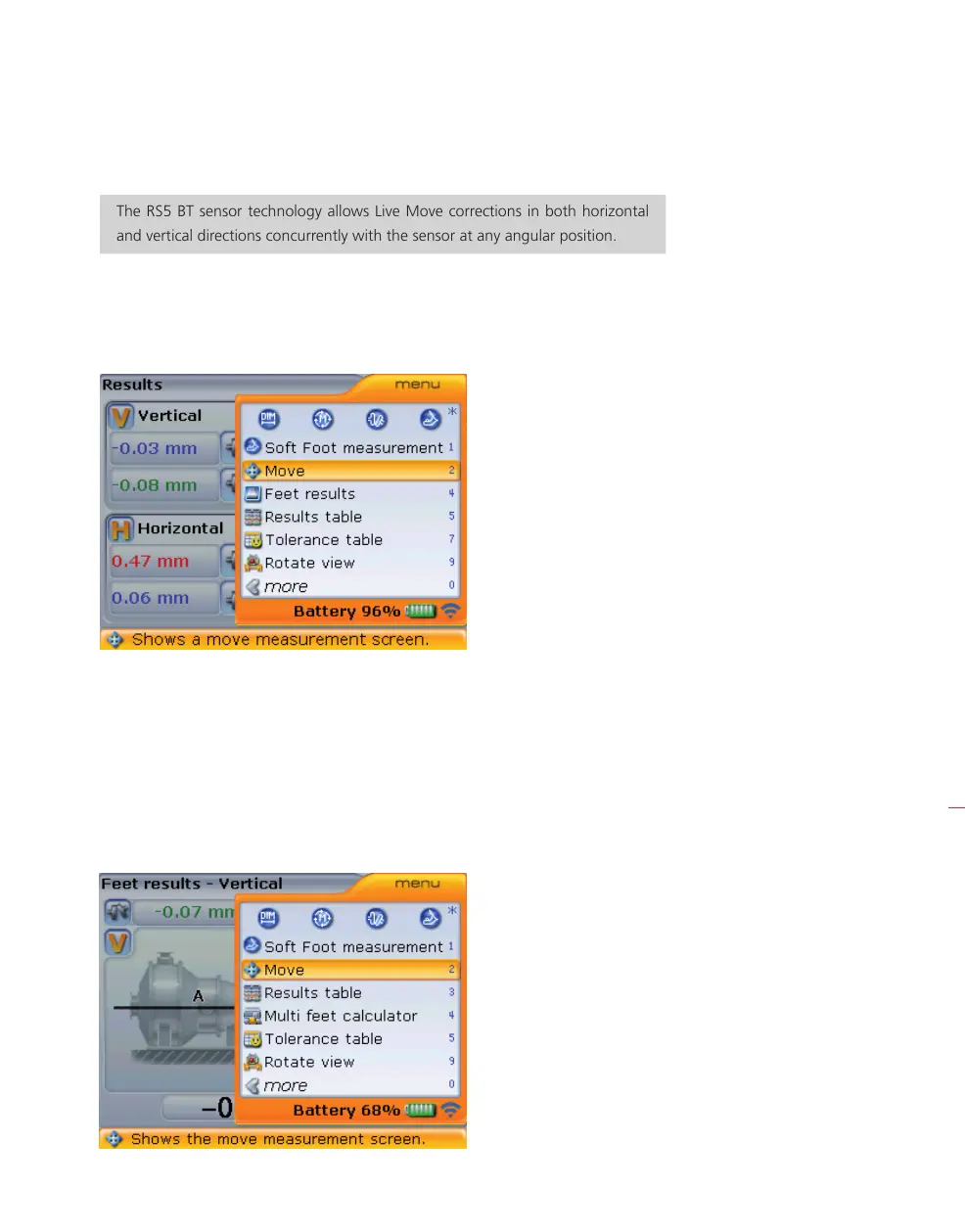

5.13.3 Horizontal and vertical Live Move
The RS5 BT sensor technology allows Live Move corrections in both horizontal
and vertical directions concurrently with the sensor at any angular position.
The alignment corrections involving shimming and the lateral positioning of the
machines can be followed in a real-time interactive display. From the results screen,
press
q. The context menu appears.
Use
f / g to highlight ‘Move’ then press e to confirm selection. If Live
Move is initiated from the “all-in-one” results screen or the horizontal results screen,
the prompted Move direction will be Horizontal. Vertical Move direction may be
prompted by initiating Live Move in the vertical results screen.
If the laser beam is centered Live Move starts automatically. Proceed to carry out Live
Move in one direction (say Vertical shimming first) then in the other direction (say
Horizontal Move).
HNote
