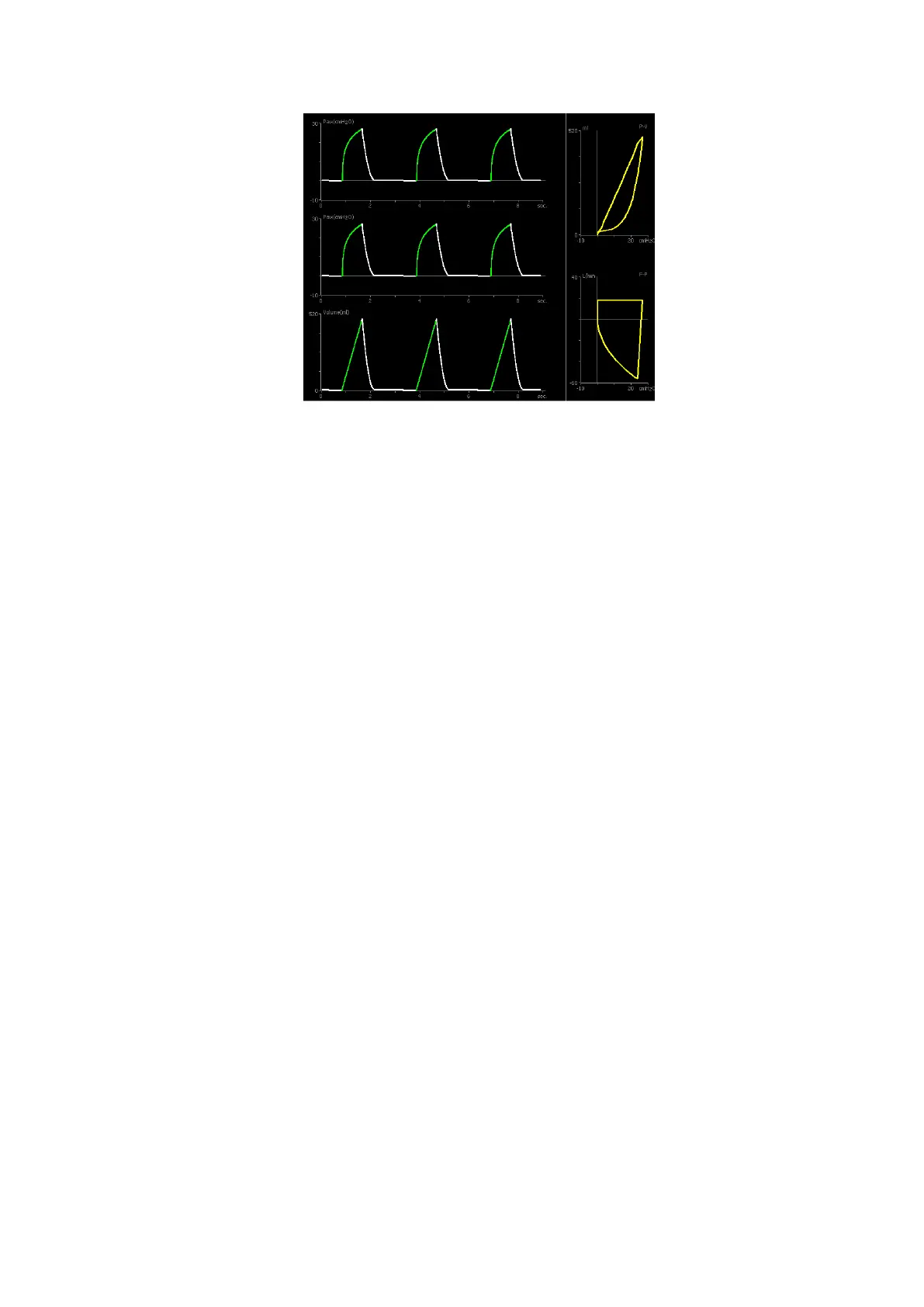

Figure 5-10 Waveform + Loop view
In System Setting screen, there are two loop options for you to select:
1） The 1st loop options:
- P-V
- F-P
- F-V
- V-CO
2
(optional)
2） The 2st loop options:
- F-P
- P-V
- F-V
- V-CO
2
(optional)
If 【Trend】is selected, the main screen can display six trends.
The time of trend:
- 1 h
- 4 h
- 8 h
- 12 h
- 24 h
If【Big Font】is selected, the main screen can display one waveform and the current big
font monitoring values.
