Field / Entity
Description / Function
 Digital BT.601 xvYCC
 Digital BT.709 xvYCC
Note: Several options are not shown and are not applicable to HDMI.
Sync Type
Not used for HDMI
Sets the sync type of the format. The following are the selections:
 (0) None
 (1) DSS - Digital Separate Sync
 (2) DCS - Digital Composite Sync
 (3) ACS - Analog Composite Sync
 (4) ACS, DSS - Analog Composite Sync, Digital Separate Sync
 (5) ACS, DCS - Analog Composite Sync, Digital Composite Sync
 (6) ACS, DCS, DSS - Analog Composite Sync, Digital Composite Sync
and Digital Separate Sync
 (7) DPMS OFF
 (8) DPMS Suspend
 (9) DPMS Standby
 (10) DPMS ON
Note: Several options are not shown and are not applicable to HDMI.
ACS Type (Not used)
Not used for DP
DCS Type (Not used)
Not used for DP
SubCarrier (Not used)
Not used for DP
7.3.7 New Format - General Tab (Right Panel)

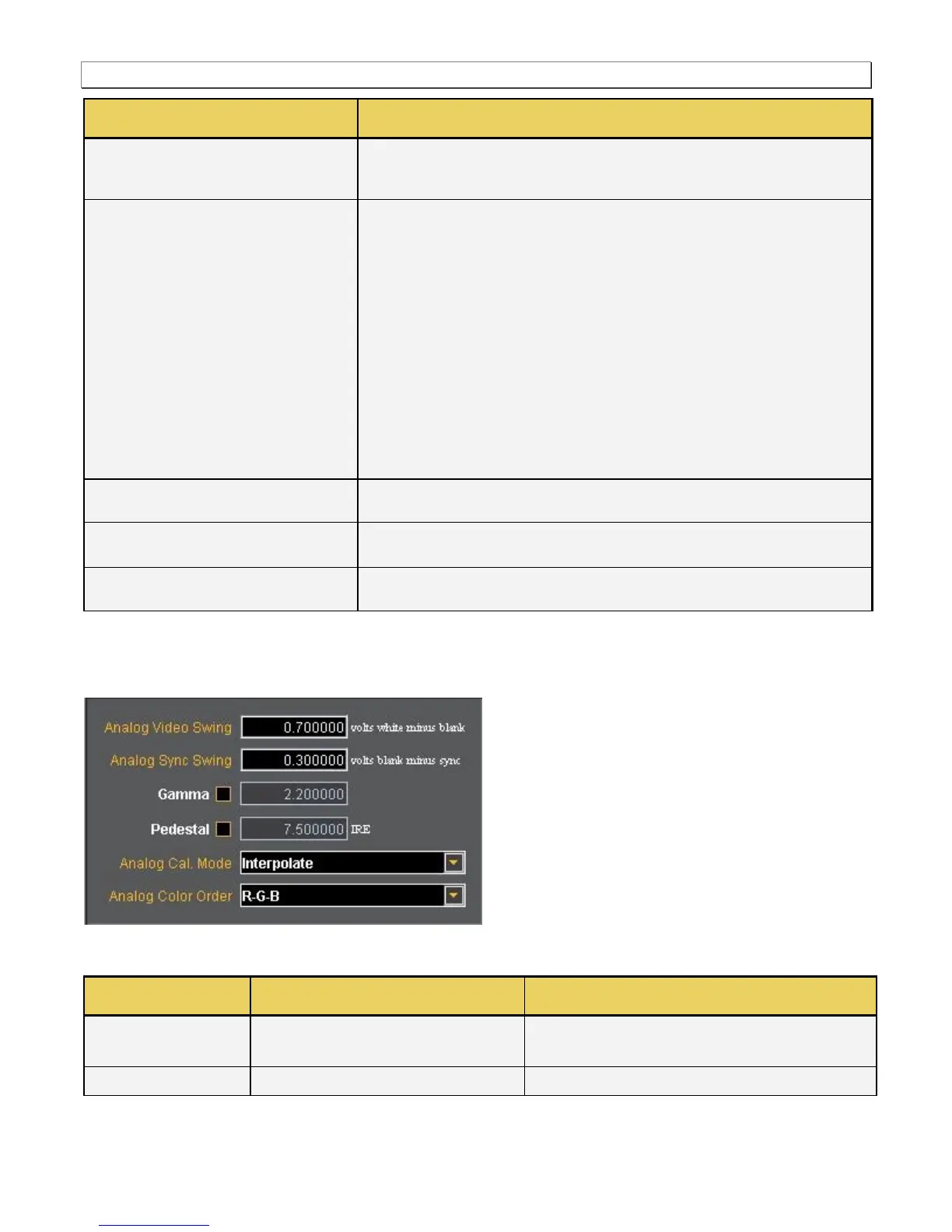

The right panel of the General tab in the Format Editor is shown below.
The table below describes the entities and fields of the right-side panel of the General tab.
Field / Entity
Entity Type
Description / Function
Analog Video Swing
Not used for HDMI
Entry field
Sets the analog video swing.
Analog Sync Swing
Entry field
Sets the analog sync swing.
