78 QXS G2 Hardware Installation and Maintenance Guide
5U84 One Server/One HBA/Dual Path

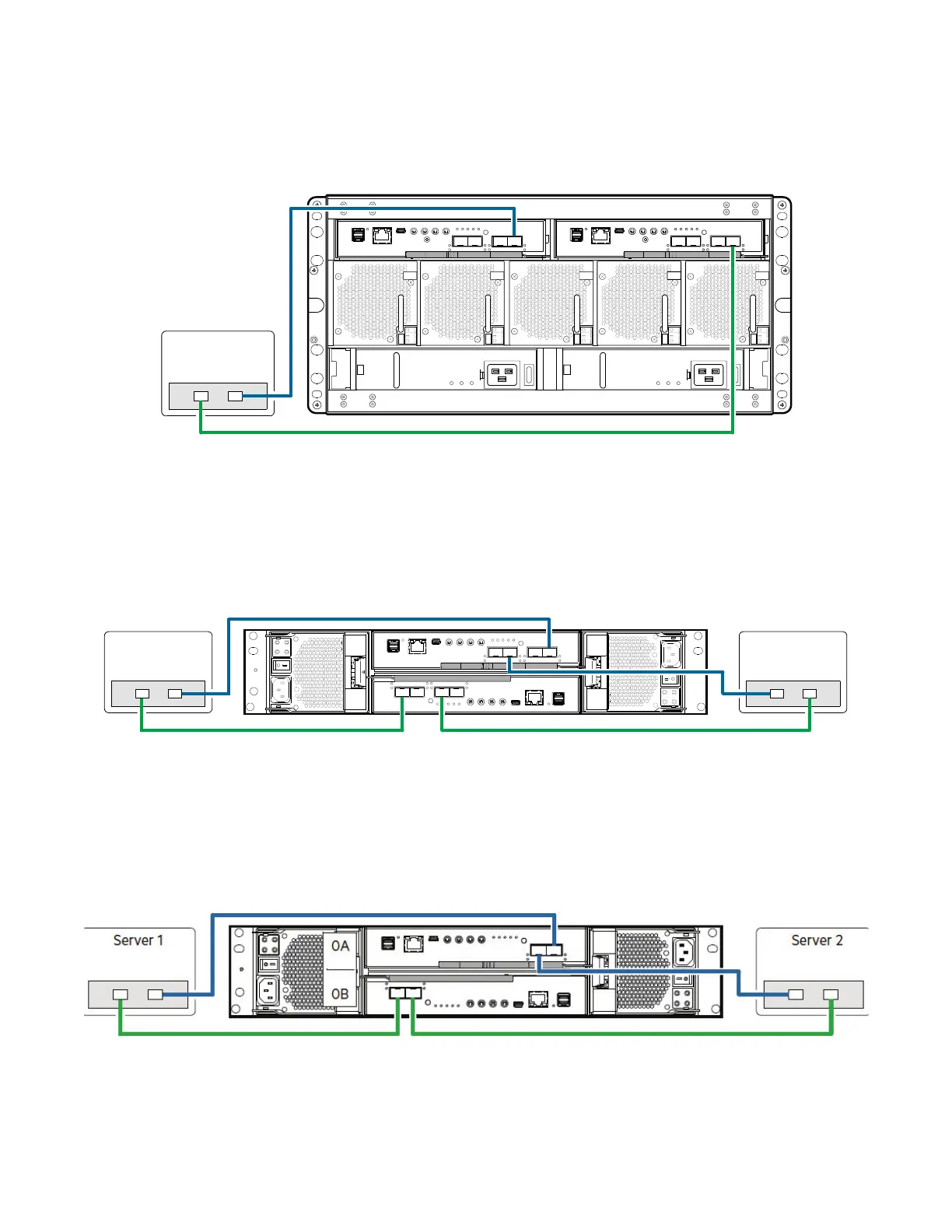

Figure 71 provides an illustration of connecting a 5U84 to one server/one HBA with dual path.
Figure 71 5U84 One Server/One HBA/Dual Path
2U12/2U24 (4-Host Ports) Two Servers/One HBA Per Server/Dual Path
Figure 72 provides an illustration of connecting a 2U12/2U24 to two servers/one HBA per server, with
dual path.
Figure 72 2U12/2U24 Two Servers/One HBA Per Server/Dual Path
2U12/2U24 (2-Host Ports) Two Servers/One HBA Per Server/Dual Path
Figure 73 provides an illustration of connecting a 2U12/2U24 to two servers/one HBA per server, with
dual path.
Figure 73 2U12/2U24 Two Servers/One HBA Per Server/Dual Path
