Quectel 5G Series Hardware Design

5G Module Series
RM500Q-GL Hardware Design
RM500Q-GL_Hardware_Design 66 / 85

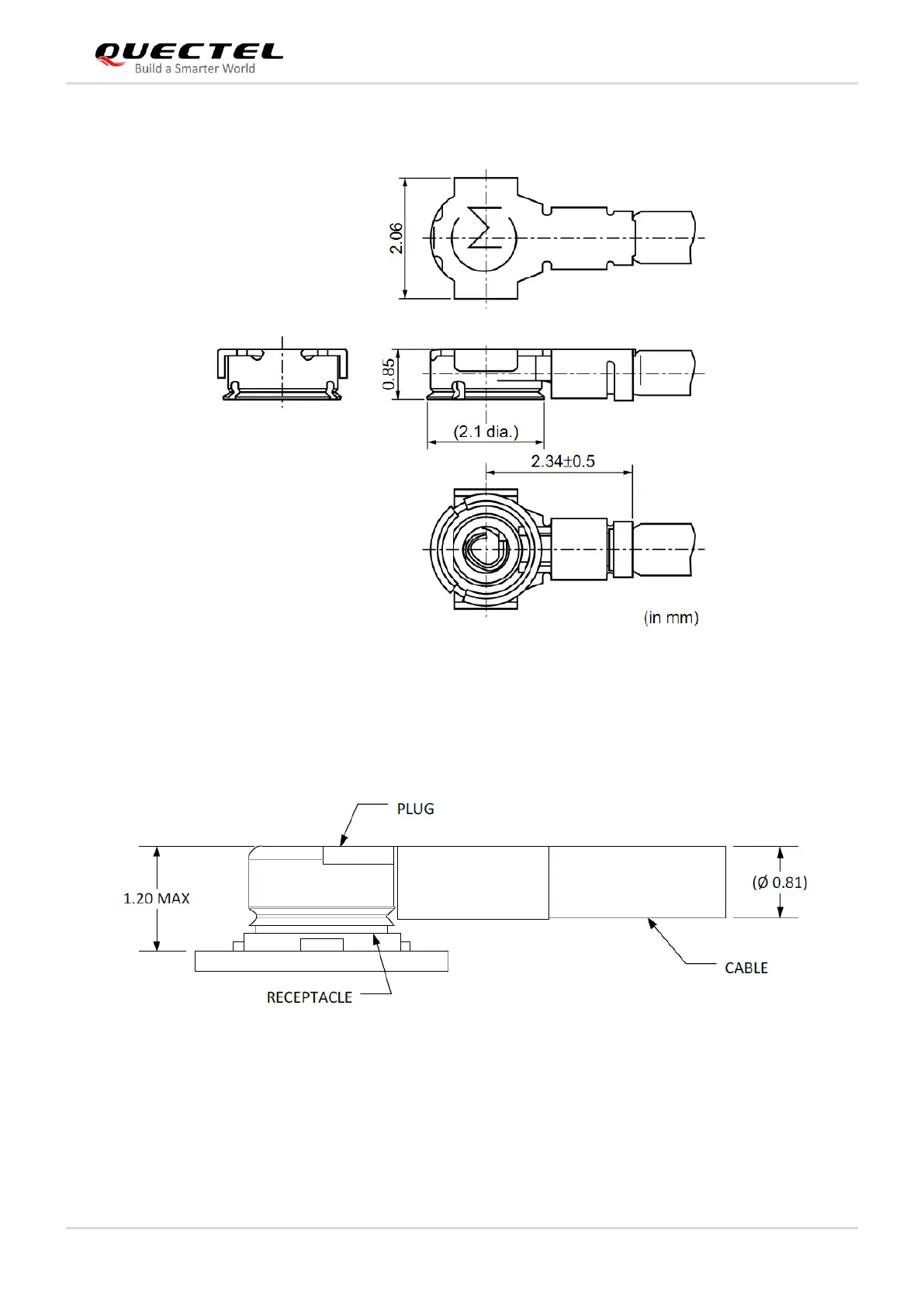

The following figure shows the specifications of mating plugs using Ø 0.81 mm coaxial cables.
Figure 30: Specifications of Mating Plugs Using Ø 0.81 mm Coaxial Cables
The following figure illustrates the connection between the receptacle RF connector on RM500Q-GL and
the mating plug using a Ø 0.81 mm coaxial cable.
Figure 31: Connection between RF Connector and Mating Plug Using Ø 0.81 mm Coaxial Cable
