The connector dimensions are illustrated by the figure below:

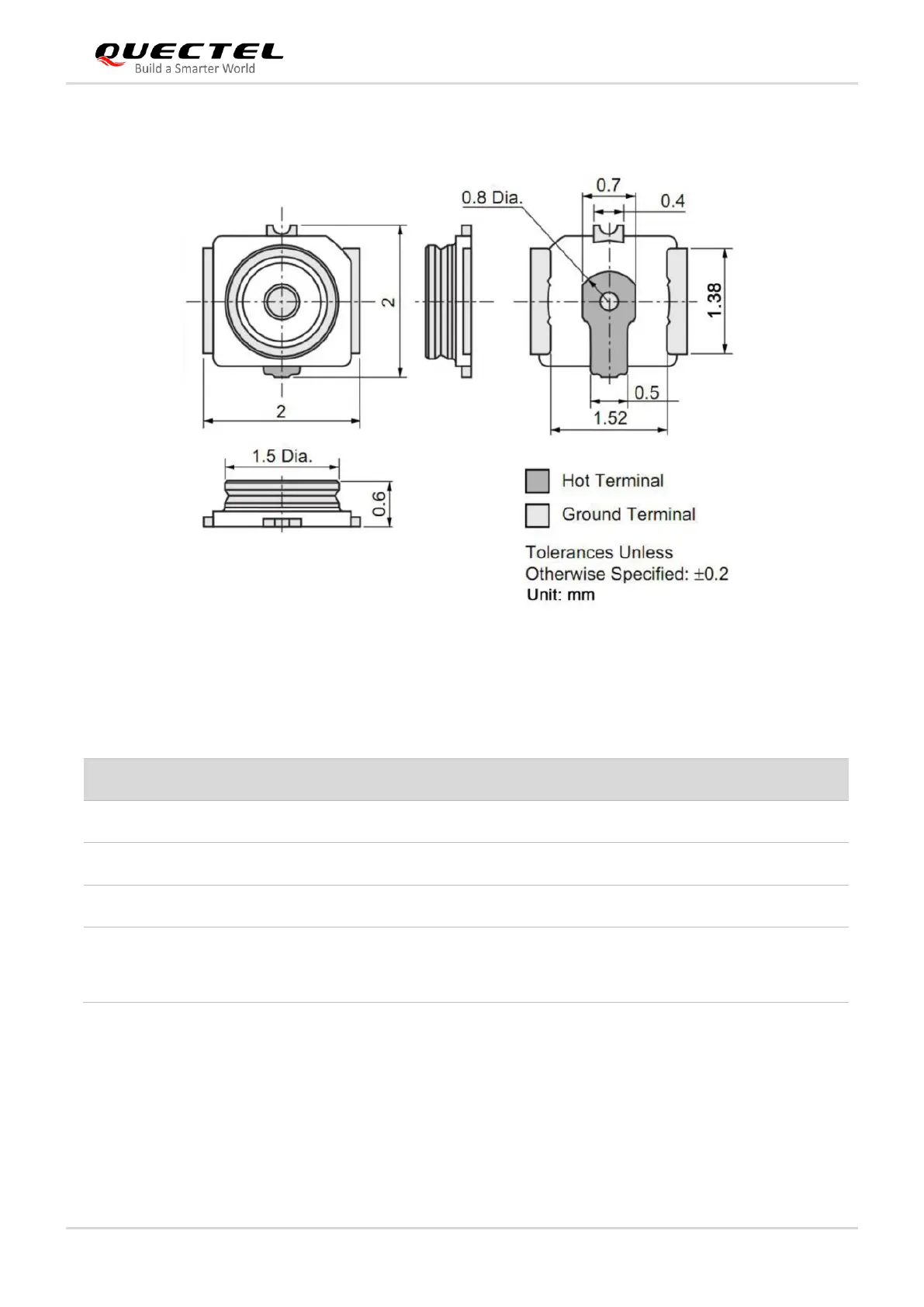

Figure 29: RM500Q-GL RF Connector Dimensions (Unit: mm)
Table 37: Major Specifications of the RF Connector
5.3.3. Antenna Connector Installation
The receptacle RF connector used in conjunction with RM500Q-GL will accept two types of mating plugs
that will meet a maximum height of 1.2 mm using a Ø 0.81 mm coaxial cable or a maximum height of 1.45
mm utilizing a Ø 1.13 mm coaxial cable.
Item
Specification
Nominal Frequency Range
DC to 6 GHz
Nominal Impedance
50 Ω
Temperature Rating
-40 °C to +85 °C
Voltage Standing Wave Ratio (VSWR)
Meet the requirements of:
Max. 1.3 (DC–3 GHz)
Max. 1.45 (3–6 GHz)
