7.4. Packaging

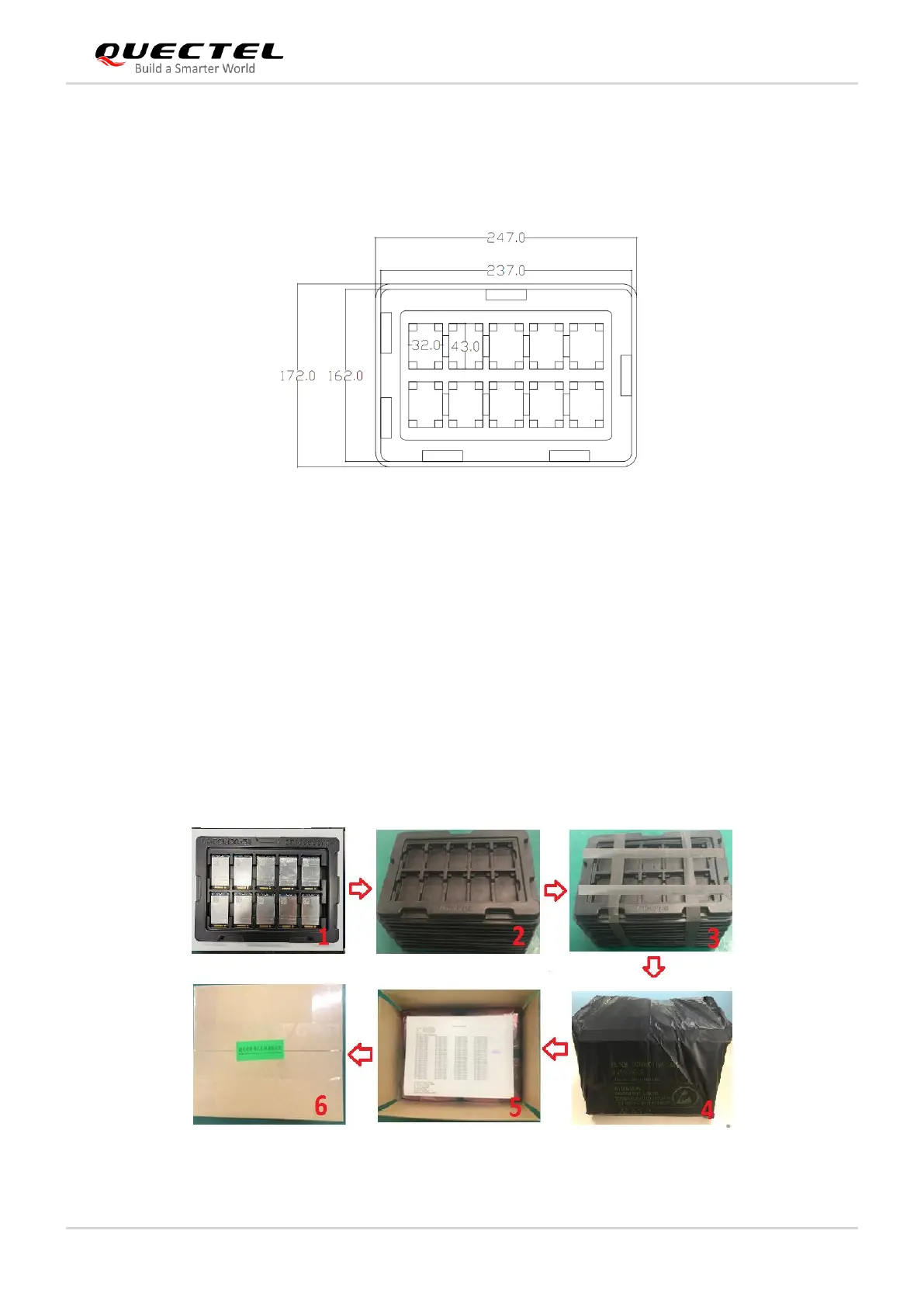

RM500Q-GL modules are packaged in trays. The following figure shows the tray size.
Figure 39: Tray Size (Unit: mm)
Each tray contains 10 modules. The smallest package contains 100 modules. Tray packaging procedures
are as below.
1. Use 10 trays to package 100 modules at a time (tray size: 247 mm × 172 mm).
2. Place an empty tray on the top of the 10-tray stack.
3. Fix the stack with masking tape in “#” shape as shown in the following figure.
4. Pack the stack with conductive bag, and then fix the bag with masking tape.
5. Place the list of IMEI No. into a small carton.
6. Seal the carton and then label the seal with sealing sticker (small carton size: 250 mm × 175 mm ×
128 mm).
Figure 40: Tray Packaging Procedure
