RM500Q-GL_Hardware_Design 67 / 85
The following figure illustrates the connection between the receptacle RF connector on RM500Q-GL and
the mating plug using a Ø 1.13 mm coaxial cable.

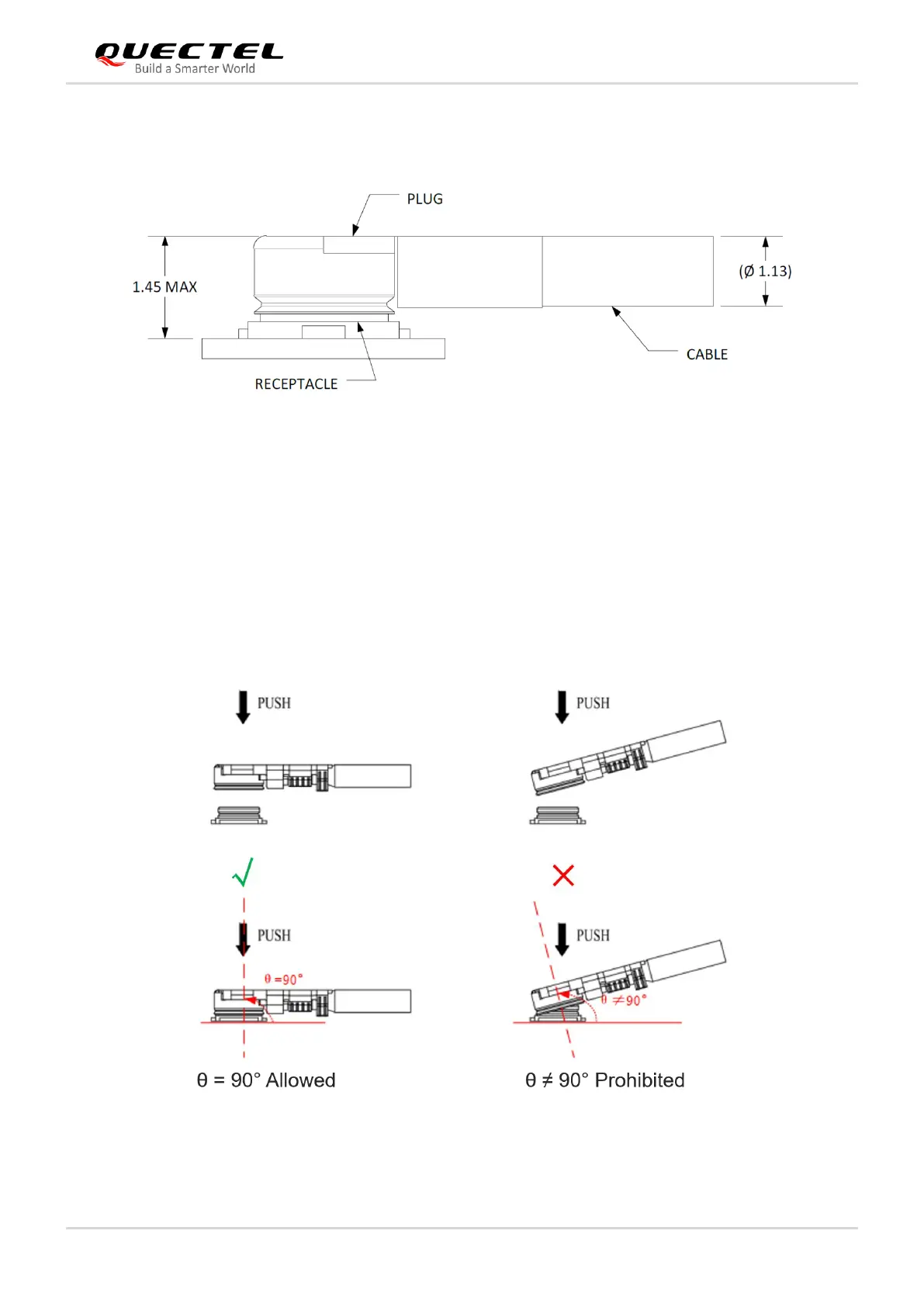

Figure 32: Connection between RF Connector and Mating Plug Using Ø 1.13 mm Coaxial Cable
5.3.4. Recommended RF Connector for Installation
5.3.4.1. Assemble Coaxial Cable Plug Manually
The illustration for plugging in a coaxial cable plug is shown below, θ = 90° is acceptable, while θ ≠ 90° is
not.
Figure 33：Plug in a Coaxial Cable Plug
