Assembly
© Radiodetection 2016 9 RD1500 Operation Manual
Attach the Display Cable to the back of the Display Unit with the jackscrews.

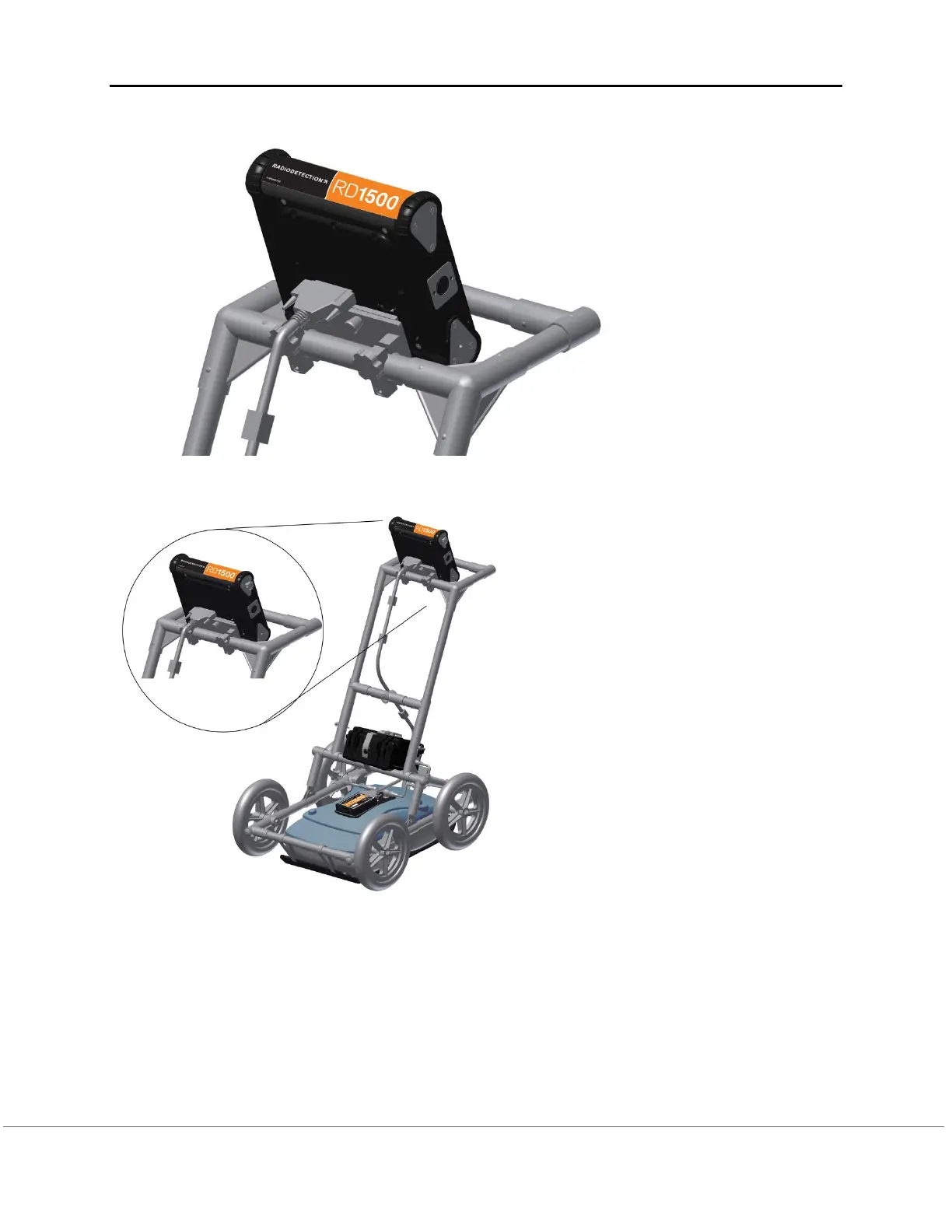

Connect the other end of the cable to the Sensor. Ensure the cable is routed as shown below.
Attach the Odometer and Battery Cables. The Odometer Cable connects to the closest
receptacle on the Sensor. Attach the Battery Cable to the Sensor and the Battery. The system is
now set up and ready to use.
