Tools & Setup
RD1500 Operation Manual 26 © Radiodetection 2016

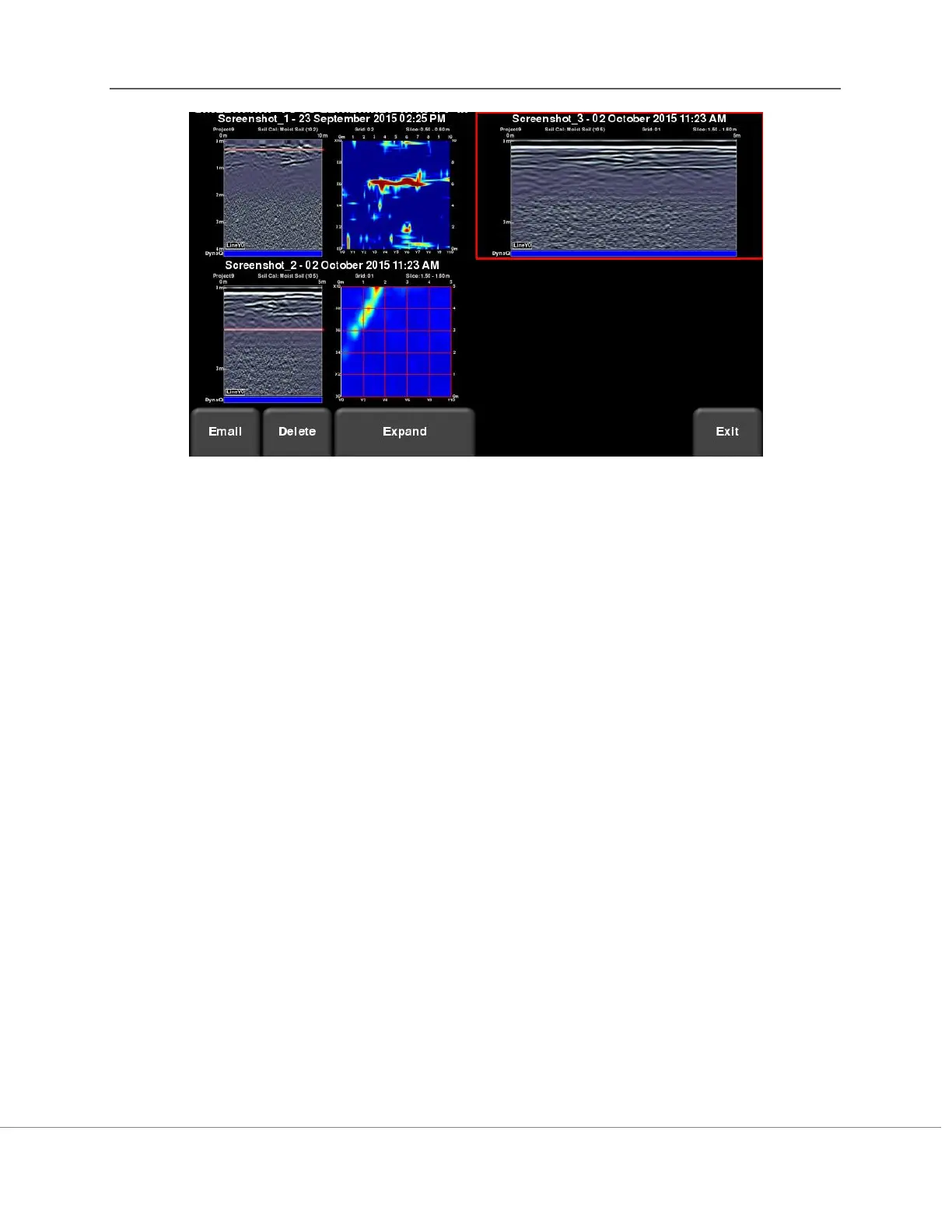

Figure 6-7: Tile View in Screenshot Gallery
From the Tile View, the user has the following options:
Email Emails the selected screenshot (provided you are connected to a wireless
network and have setup a Gmail account to send from, see Section 6.2. WiFi Settings
for details). You will be prompted to enter an email address, or you may use the most
recent one which will be listed by default.
Delete Deletes the displayed screenshot.
Expand Shows the selected screenshot as a full screen image. On the subsequent
screen, press Tile View to return to the screen that displays four screenshots per page.
Delete All Saved Data
Pressing this will delete all data saved on the system. There is a confirmation window asking if
you are sure; press Yes to continue deleting, press No to cancel.
Delete Project (Enhanced system)
Pressing this will delete the current project number. There is a confirmation window asking if
you are sure; press Yes to continue deleting, press No to cancel.
Map View (Enhanced system)
Pressing this will display a map view for all the data (lines & grids) in a given Project (Figure 6-
8). Map View is only enabled if a GPS was on during data collection. Map View shows the
