Tools & Setup
© Radiodetection 2016 25 RD1500 Operation Manual
6.3 File Management
Press File Management to enter this sub-menu. From here, the user can view screenshots,
export data and delete all data. If you have the regular RD1500, you will see the image in
Figure 6-6a. If you have the RD1500 Enhanced system, you will see the image in Figure 6-6b.

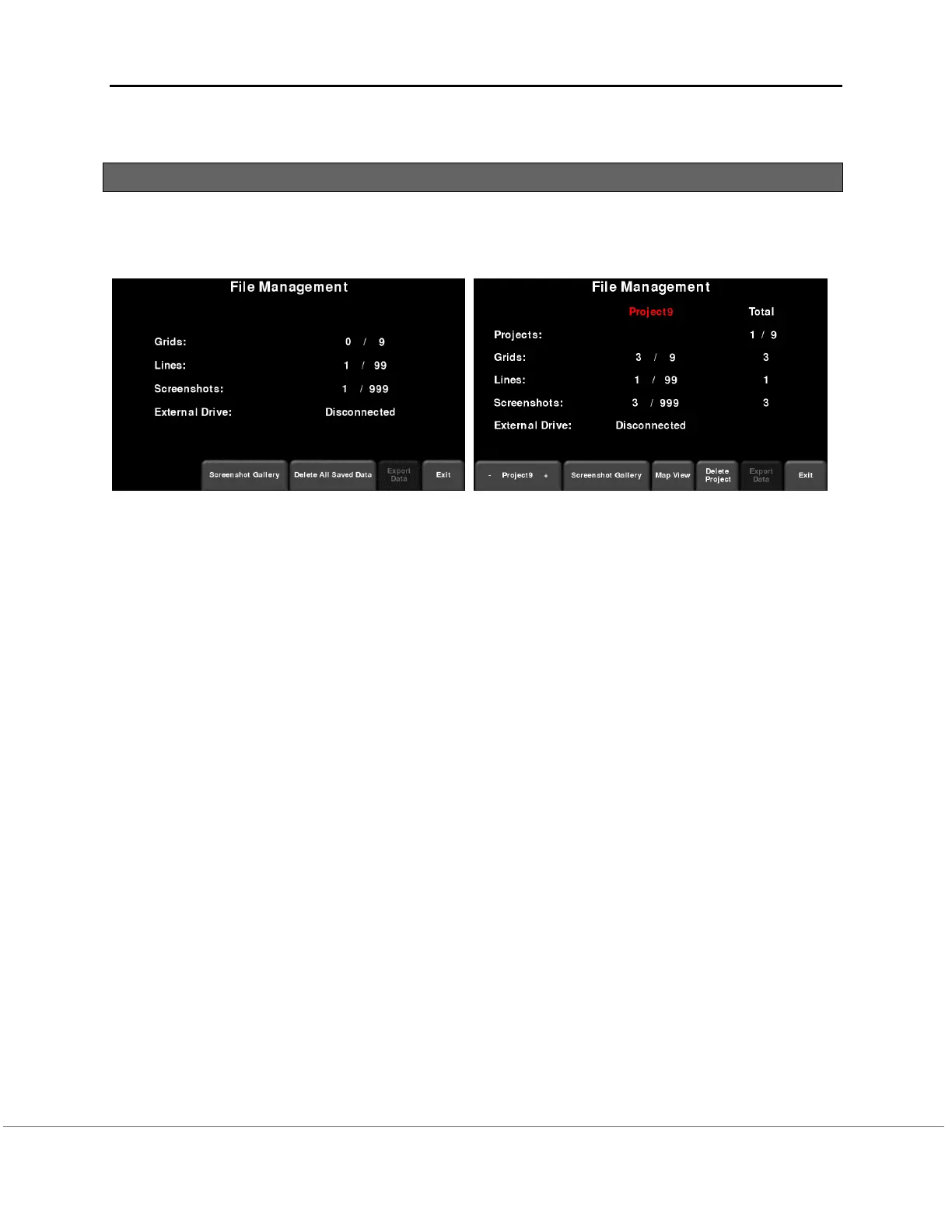

Figure 6-6: a) RD1500 system on left, displays the total number of lines, grids and screenshots
saved on the system. b) The RD1500 Enhanced system on the right displays the lines, grids
and screenshots for a given project in the middle column. The right column displays the total for
each that are saved on the system.
A description of each of the buttons is given below:
Screenshot Gallery
This allows the user to view all screenshots that were saved by pressing the Camera button
(see Section 12.1 Capturing Screens). The display will show a Tile View of four screenshots
per page (Figure 6-7). If there are more than four screenshots saved, swipe the screen to the
right and left to view the rest. Alternatively, you can also use the Left and Right arrow keys on
the 4-way directional keypad.
