Getting Started
RD1500 Operation Manual 16 © Radiodetection 2016
5.4 Swipe Down menu

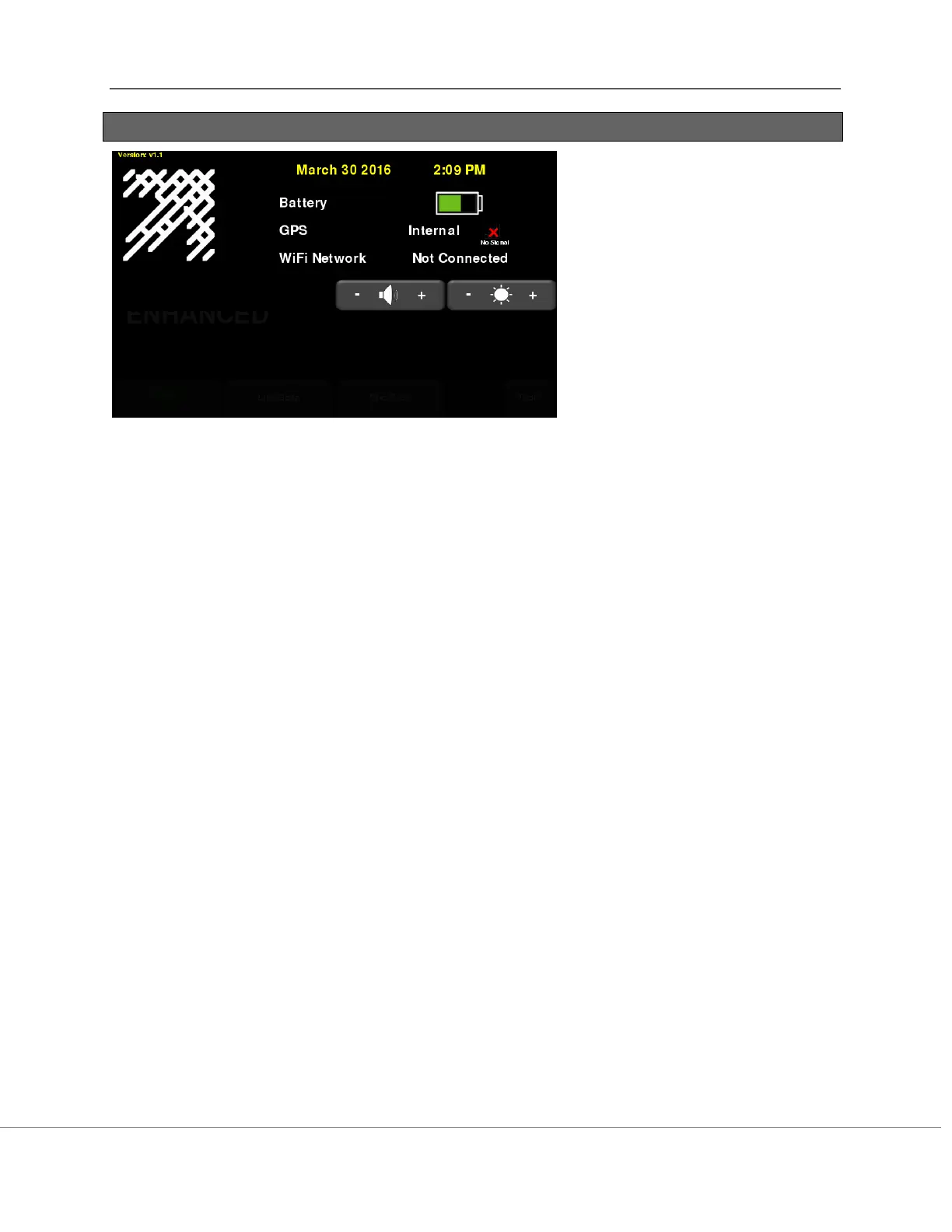

Figure 5-4: Swipe-Down menu
When the Display Unit is powered on (except during data acquisition), you can “swipe” your
finger from the top of the screen towards the bottom, to bring up a drop-down menu (Figure 5-4)
with the following items:
Date and Time: The current date and time (12 hour clock).
NOTE: The time needs to be changed in areas that observe daylight-savings-time.
Battery: The battery icon displays the amount of power remaining in the battery. If the battery
power is getting low, the icon will change color to orange and red to match the LED color on the
keypad.
GPS: Shows which GPS is being used (Internal or External) and the signal strength.
WiFi Network: Indicates if the system is connected to a wireless network and, if so, the name of
the network. See WiFi Settings in Section 6.2 for details on connecting the system to a
wireless network.
Volume: The Volume + and - buttons are used to increase and decrease speaker volume.
Brightness: The Brightness + and - buttons are used to increase and decrease the screen
brightness. For example, increasing the Brightness setting may improve the visibility of the
screen in bright sunlight.
