Upon completion, it displays the screen in Figure 6-13. The new calibration value is shown to
the right of the arrow in number 1. You can either accept the new value (by pressing ‘1’ on the
keypad) or revert back to the previous value (by pressing ‘8’ on the keypad). If the new value is
significantly out of range, the test will fail.
The odometer calibration value is stored in the Display Unit. If the Display Unit is changed, or
swapped out, you will need to run the Odometer Calibration test again.

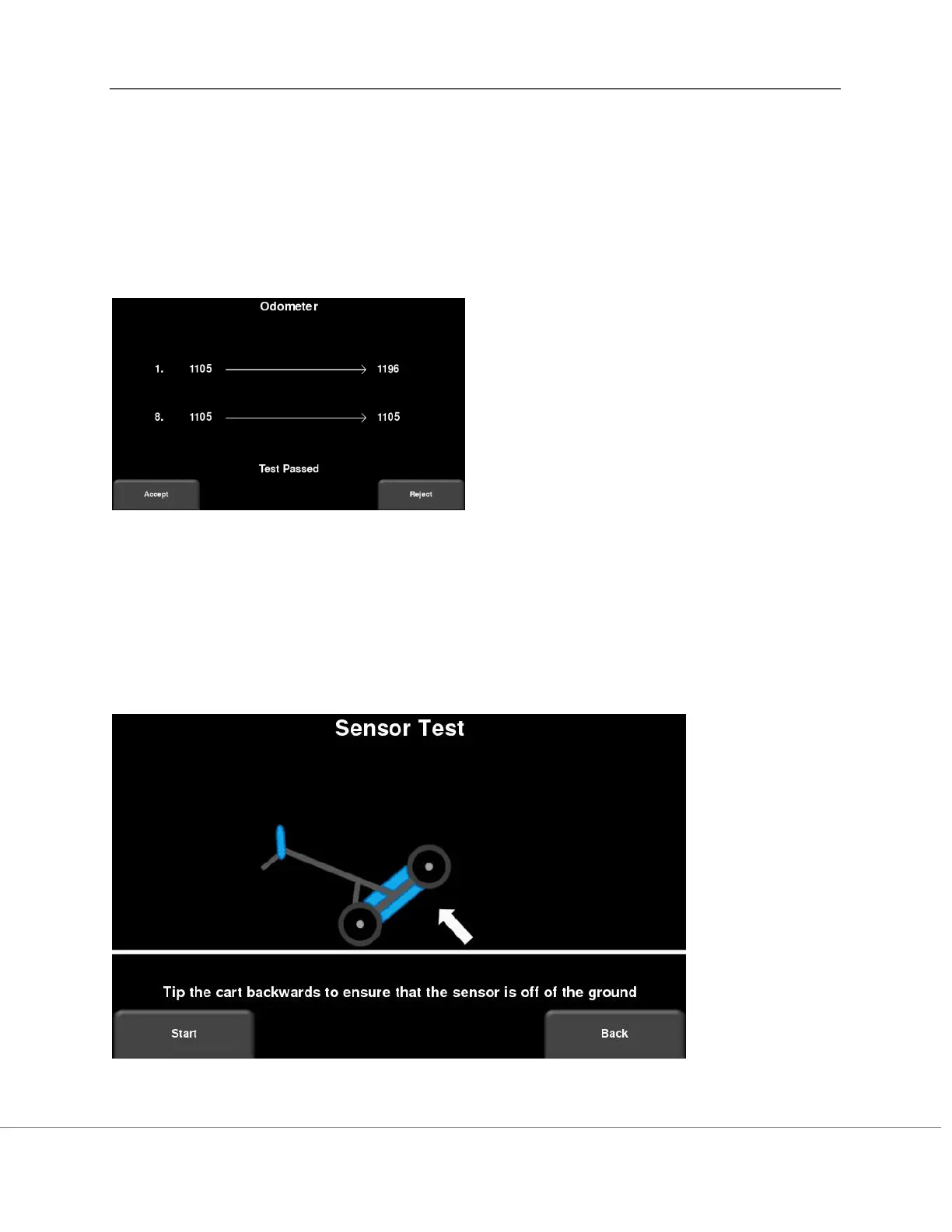

Figure 6-13: Results of Odometer Test
Sensor Test
This test checks proper operation of the GPR sensor, including the amplitude of the pulse.
Once the cart is tipped backwards and start is pressed, it will conduct the test (Figure 6-14). If
there are any irregularities, the test will indicate failure.
Figure 6-14: Sensor Test
