Installing procedure:
1. Unplug the scale from mains;
2. Unscrew and take off the back wall of the housing;
3. Install your module in J3 on the main board;
4. During installation turn your attention to plastic columns. They
should be placed one side in mounting holes in the main board
and the other side in the mounted module PK1;
5. Led the PT0016 cable through one of plugged glands;
6. Connect the PT0016 cable to J2 connector on the PCB according
to the description below;
7. The cable connect to the group of wires (unhook band clips
fastening the group of wires, lay the cable and hook the band clips).
Band clips of multiple usage;
8. Screw down the back wall.

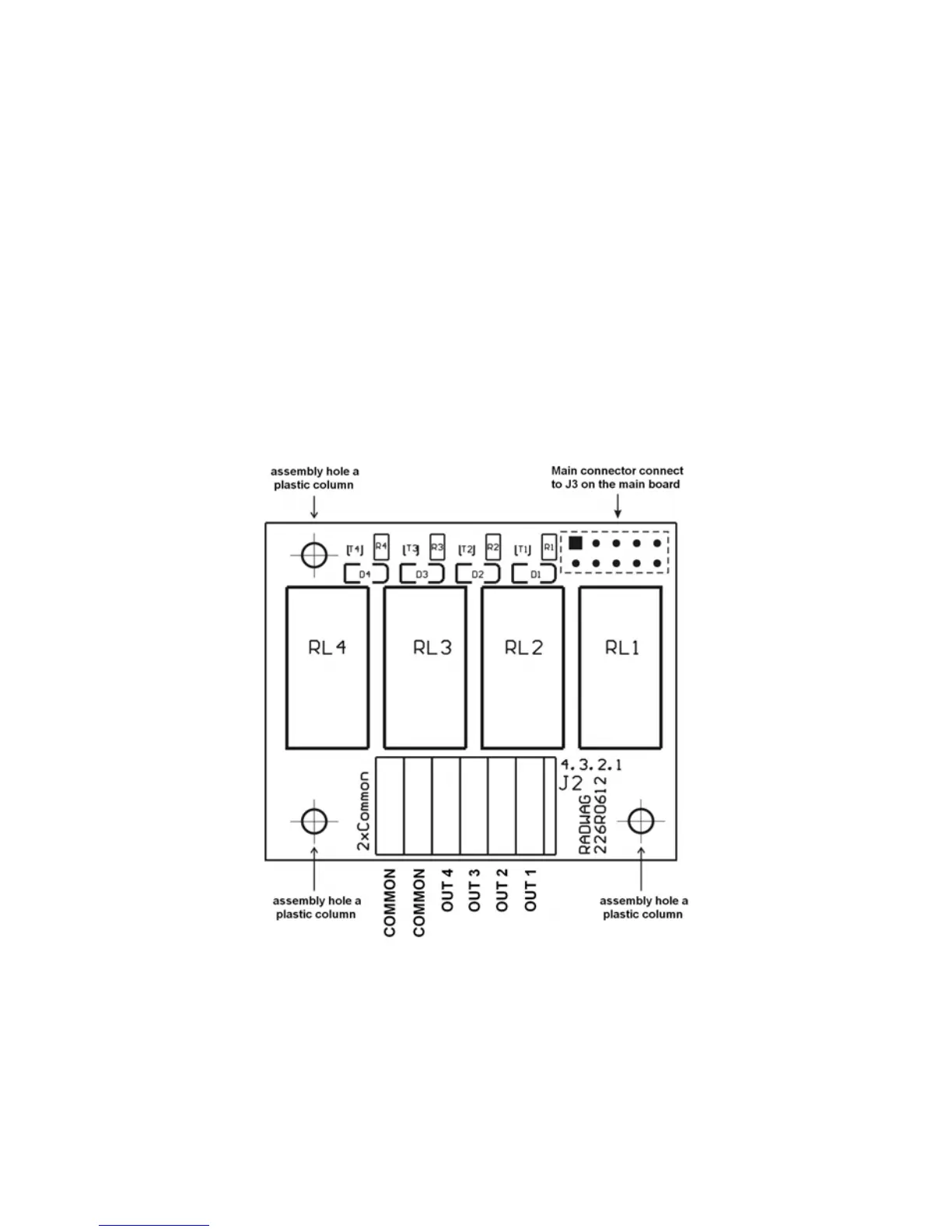

Installing a PK1 module on the main board of PUE C41H
- 141 -
