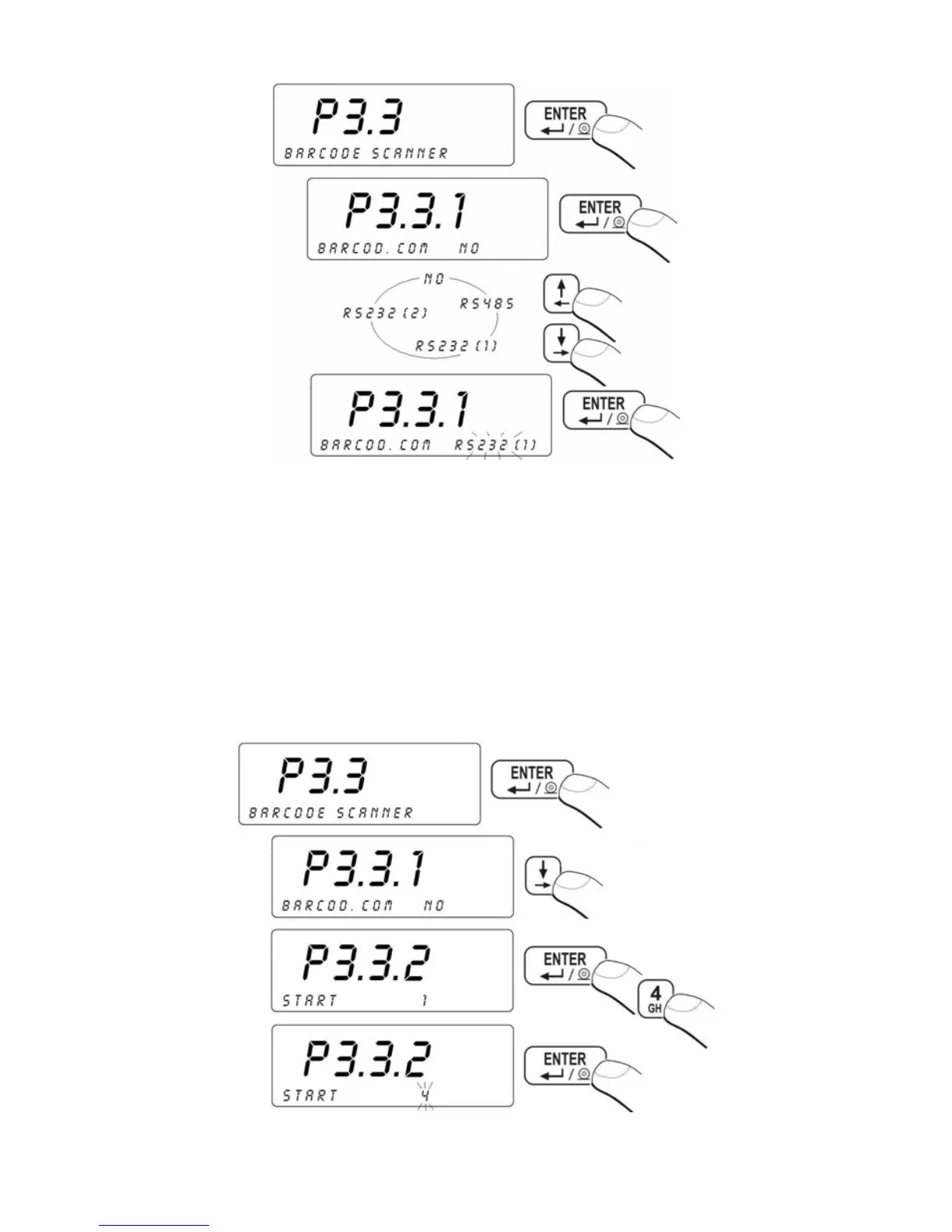

15.3.2. Setting the START parameter

Procedure:

• Enter <P3.3 BARCODE SCANER> and then set the START

parameter – a character number in barcodes that is to be

analysed during the assortment database search:

- 45 -
