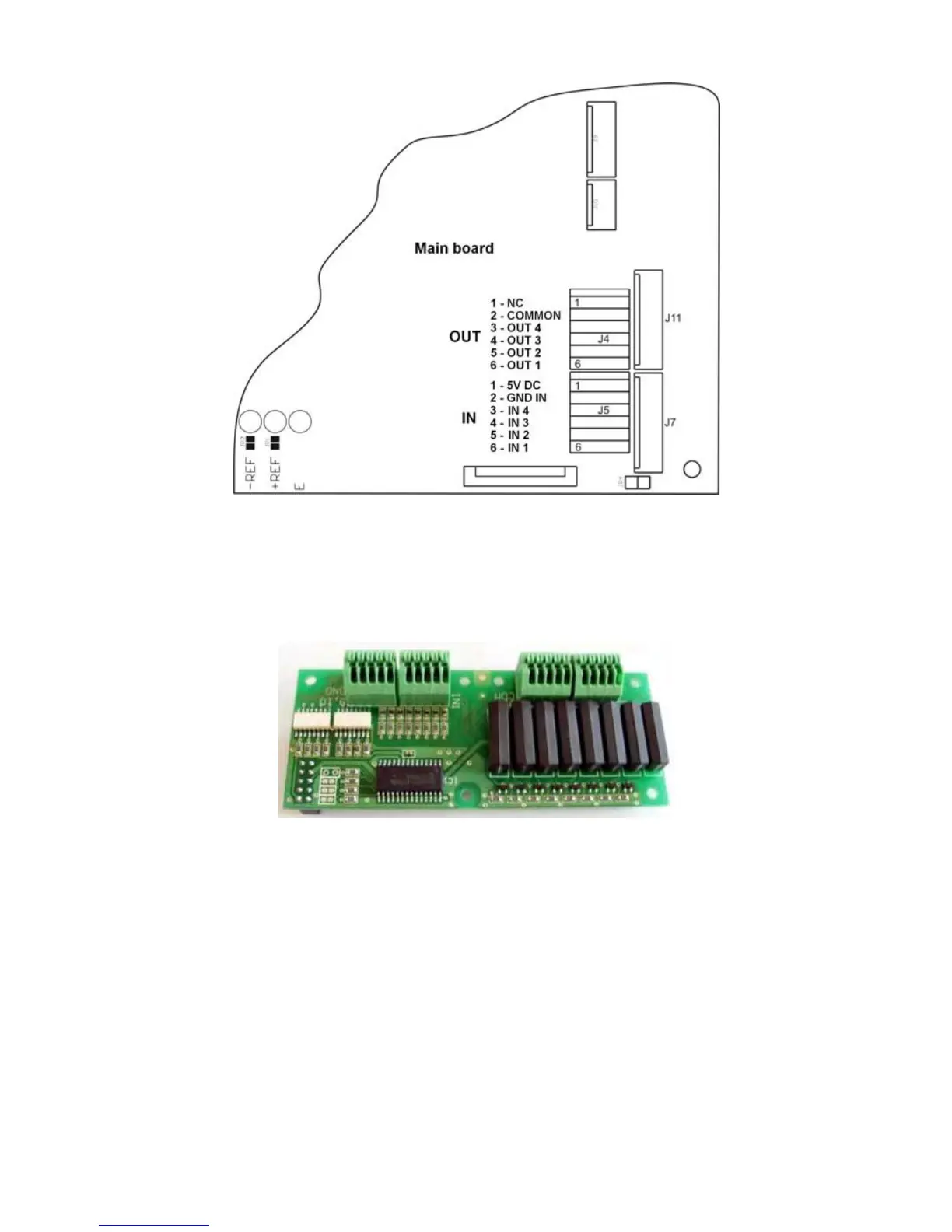

Installing WE4 modules on the main board of PUE C41H
27.5. WE 8 - 8 inputs / 8 outputs module
8 inputs / 8 outputs PCB - WE 8
WE 8 modules can be connected as an alternative to the module of
analogue output and relay module. Its task is to expand the functionality
of an indicator for 8 inputs and 8 outputs freely configurable. It expands
functionality of terminals. It comprises on board optoinsulated inputs
and outputs freely configurable from the level of indicator.
Caution:
If WE 8 module is installed in it does not allow to install AN analogue
output module and/or PK 1 module of relays.
- 144 -
