ESP-Me Advanced User Manual
Station Expansion Modules
Additional Station Modules can increase the number of
available stations up to 22.
The ESP-Me Controller comes standard with a base module
that supports four stations. If more stations are required, up
to three additional Station Modules (not included) can be
installed.
NOTE: 6-Station module is compatible only with the
ESP-Me. They are not backwards compatible with the
previous vintage controller.
Module Options
3-STATION
(ESPSM3)
VT MV COM
6-STATION
(ESPSM6)
Expansion Modules
(sold separately)
Base Module
(included)
4-STATION
Programming Dial
Rotate the dial to select
programming functions.
Program Select Button
Select Watering Program
A, B, C, or D.
Alarm Indicator
Illuminates solid or
ashes when an alarm
condition exists.
Back/Next Buttons
Select programming
options.
– / + Buttons
Adjust program settings.
(Press and HOLD - or + to
accelerate adjustments).
Hold to Start
Manual irrigation.

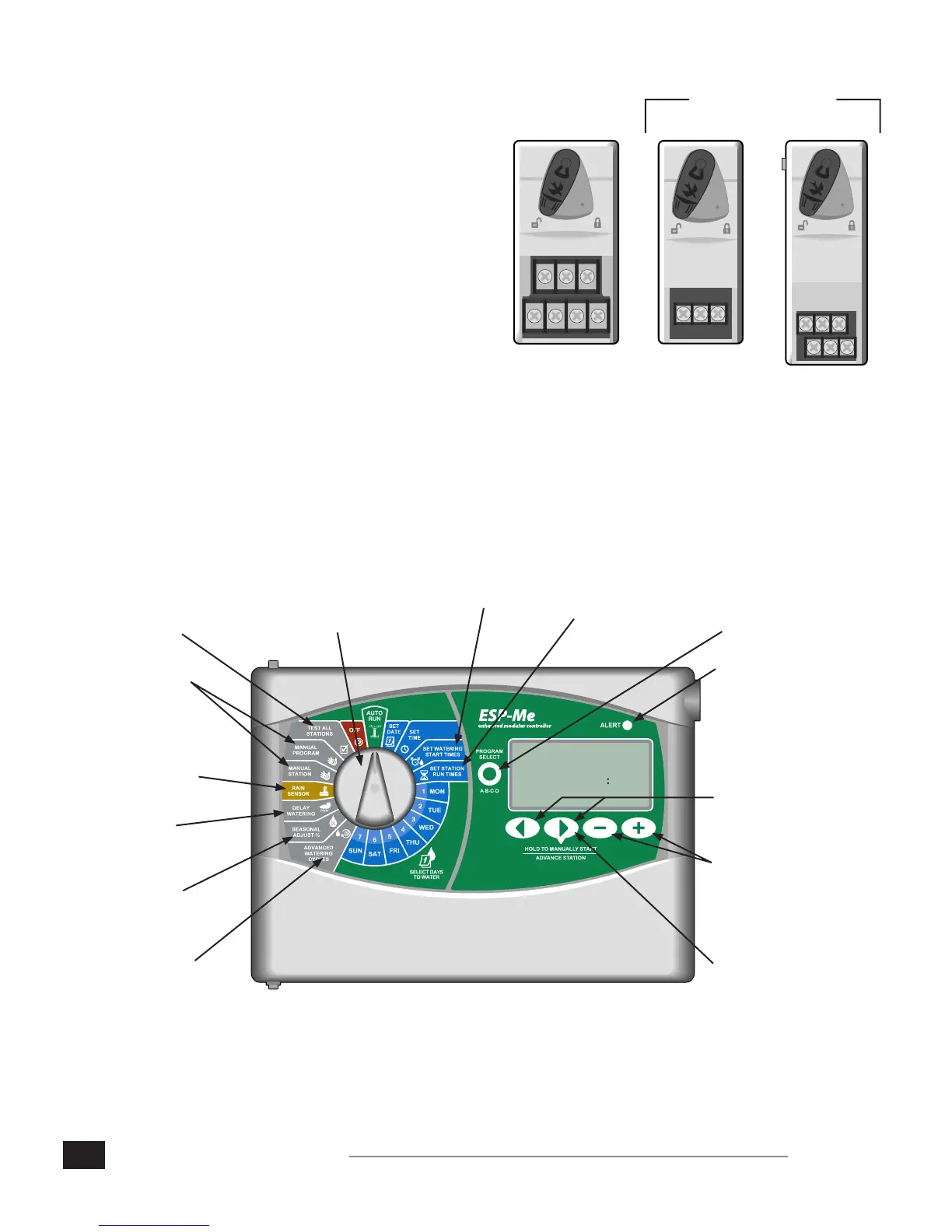

ESP-Me Controller Front Panel
Test All Stations
Manual Watering
Rain Sensor
Applies to all programs
but can be set to bypass
individual stations.
Delay Watering
Up to 14 days.
Seasonal Adjust
Adjust value from 5% up
to 200%
Water Day(s) Options
By Day, Odd, Even or
Cyclic.
Water Start Times
Up to 6 per program
Set Station Run Times
1 minute to 6 hours
Controls and Indicators
Key operational features of the ESP-Me Controller:
