ISCOM5508 (B) Hardware Description
1 Product overview
Raisecom Technology Co., Ltd.
2
When installing the chassis to the 19-inch 600-mm cabinet, you need to purchase
brackets applicable to the cabinet.
1.2 Appearance and slots
1.2.1 Appearance of chassis
The ISCOM5508 is a cartridge device, which is flexible to be deployed. Dimensions of the
chassis are: 440 mm (Width) × 266 mm (Depth) × 44 mm (Height) (without brackets).

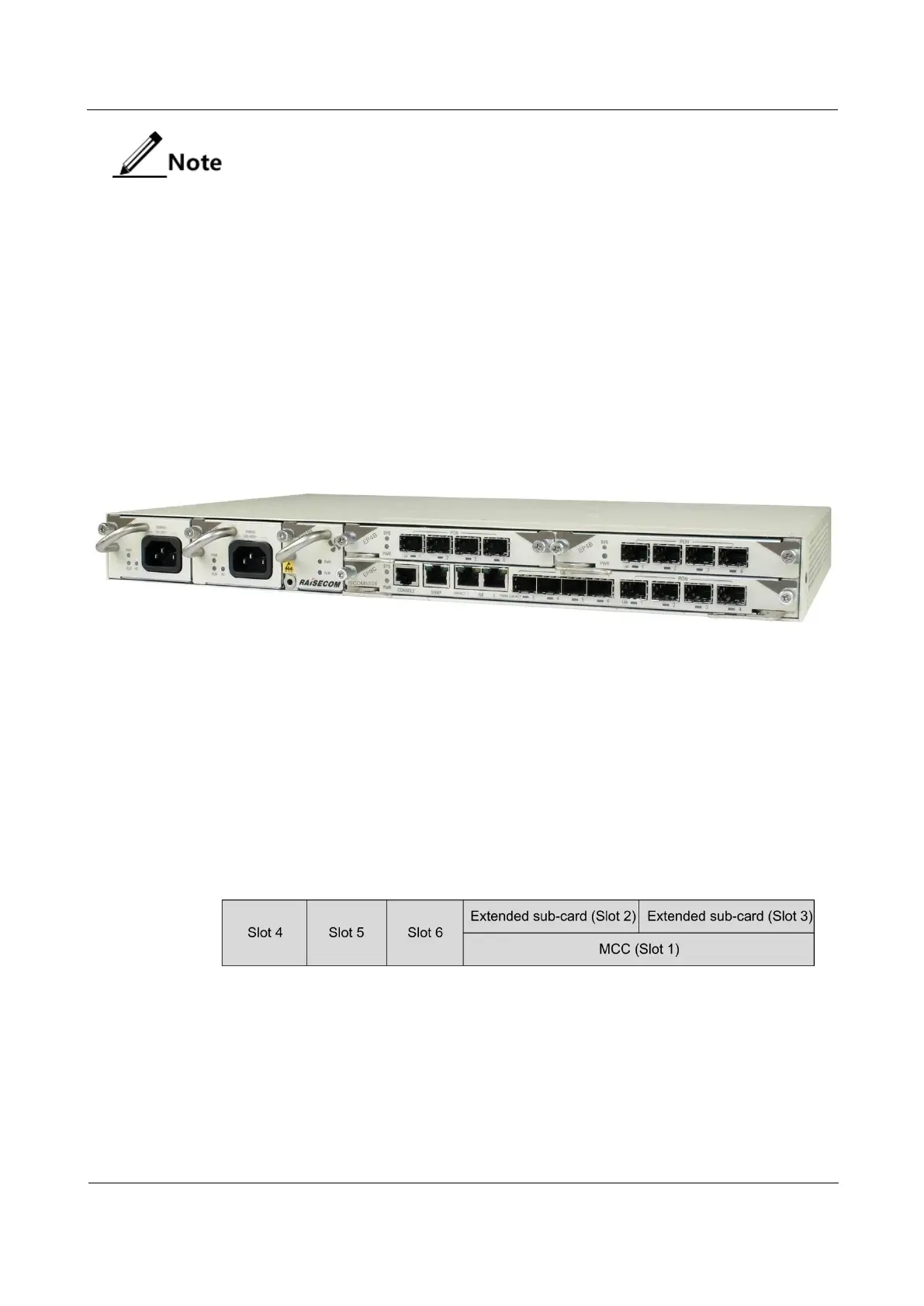

Figure 1-1 shows the appearance of the ISCOM5508 chassis.
Figure 1-1 Appearance of the ISCOM5508 chassis
1.2.2 Distribution of slots
The ISCOM5508 provides the following 6 slots:

1 Main Control Card (MCC) slot (slot 1)

2 extended sub-card slots (slot 2 and slot 3)

1 fan module slot (slot 6)

2 power module slots (slot 4 and slot 5)
Figure 1-2 shows distribution of slots on the ISCOM5508.
Figure 1-2 Distribution of slots on the ISCOM5508
1.3 Physical parameters
Table 1-1 lists physical parameters of the ISCOM5508.
