ISCOM5508 (B) Hardware Description
3 Fiber and cables
Raisecom Technology Co., Ltd.
22
When connecting or removing the LC/PC fiber connector, align the connector with the optical
interface, and do not rotate the fiber. Operate as below:

To connect the fiber, align the head of the fiber with the optical interface and insert the
fiber into the interface gently.

To remove the fiber, press down the clamping connector, and push the fiber head
inwards, and then pull the fiber out.
SC/PC fiber connector
Figure 3-2 shows the appearance of the SC/PC fiber connector.

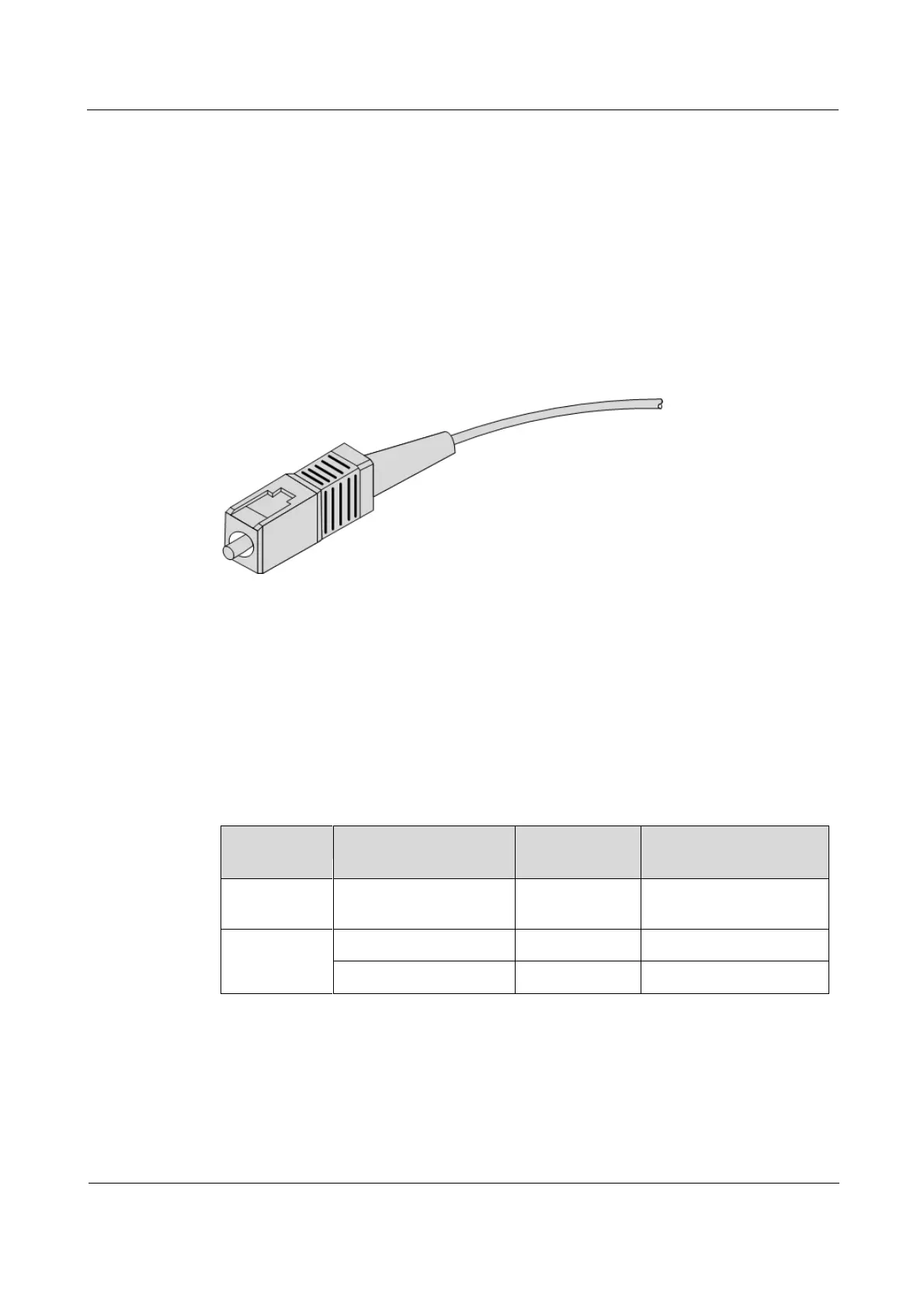

Figure 3-2 SC/PC fiber connector
When connecting or removing the SC/PC fiber connector, align the connector with the optical
interface, and do not rotate the fiber. Operate as below:

To connect the fiber, align the head of the fiber r with the optical interface and insert the
fiber into the interface gently.

To remove the fiber, push the fiber head inwards, and then pull the fiber out.
3.1.3 Wiring scheme
Table 3-3 lists wiring of the fiber.
Table 3-3 Wiring of the fiber
Wiring
Local optical interface
Direction of
optical signals
Peer optical interface
Single-fiber
connection
Optical interface
<->
Optical interface
Dual-fiber
connection
Optical interface Tx
->
Optical interface Rx
Optical interface Rx
<-
Optical interface Tx
