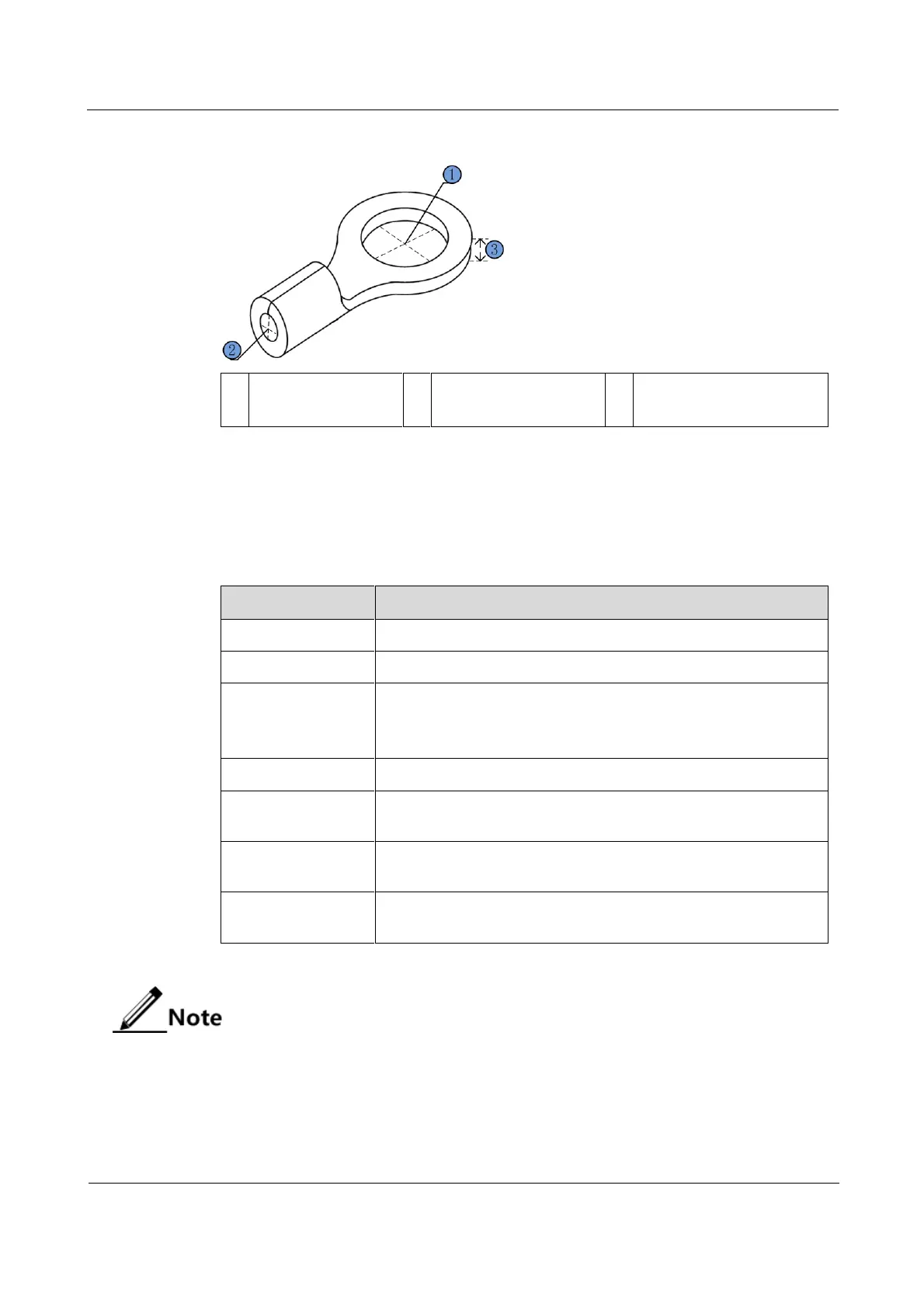

Figure 3-13 OT terminal
1
Inner radius of
soldering lug
2
Inner radius of sheath
3
Thickness of soldering lug
3.6.3 Technical specifications
Table 3-12 lists technical specifications of the grounding cable.
Table 3-12 Technical specifications of the grounding cable
Item
Description
Model
PIL-grounding cable-Φ4-D/RoHS
Standard
Comply with the UL standard and meet RoHS requirements.
Conducting wire
Yellow/Green multi-strand copper-core conducting wire 16 AWG
(1.25 mm
2
)
Electronic wire UL1007 or UL1005 is used.
Stripped end
10 mm long and plated with tin
Insulating sheath
3.5/1.75 black heat-shrink tubing, which is a 20 mm plastic tube
and shrinks when heated
Welding technology
The conducting wire and OT terminals adopt solderless pressed
connection.
Error in length of
conducting wire
±5 mm
The letter D in the model indicates the length, which is customized. For example, if
the customer requires 2-meter cables, they are named PIL-grounding cable-Φ4-
2m/RoHS.
Table 3-13 lists technical specifications of the OT terminal.
