ISCOM5508 (B) Hardware Description
3 Fiber and cables
Raisecom Technology Co., Ltd.
26
Table 3-5 Technical specifications of the Ethernet cable
Item
Description
Name
CBL-ETH-RJ45/RJ45-D
Color
Dark grey
Cable type
Cat 3 or Cat 5 UTP cable, or STP cable
Connector type
RJ45 connector
Number of cores
8
Length
The letter D indicates the length, which is customized. For example,
if the customer requires 2-meter cables, they are named CBL-ETH-
RJ45/RJ45-2m.
3.3 Configuration cable
3.3.1 Introduction
The configuration cable is used to connect the Console interface of the ISCOM5508 and the
RS-232 serial interface of the maintenance console, and transmit configuration data signals.
The maintenance console troubleshoots and maintains the ISCOM5508 through the Console
interface.
The configuration cable is an 8-core UTP cable. Connectors at the two ends are:

RJ45 connector: connect the Console interface of the ISCOM5508.

DB9 female connector: connect the RS-232 serial interface of the maintenance console.
3.3.2 Appearance

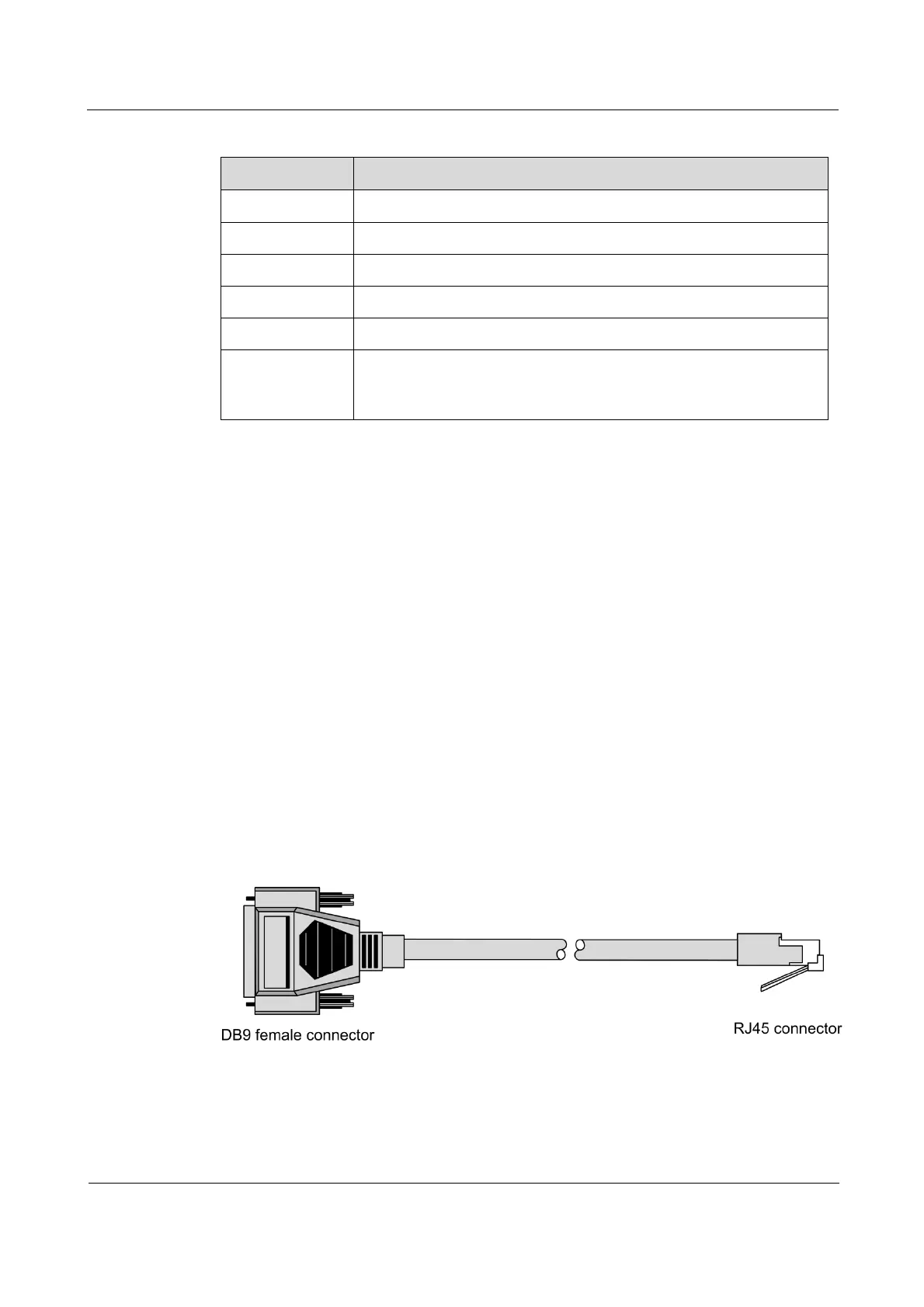

Figure 3-7 shows the appearance of the configuration cable.
Figure 3-7 Configuration cable
