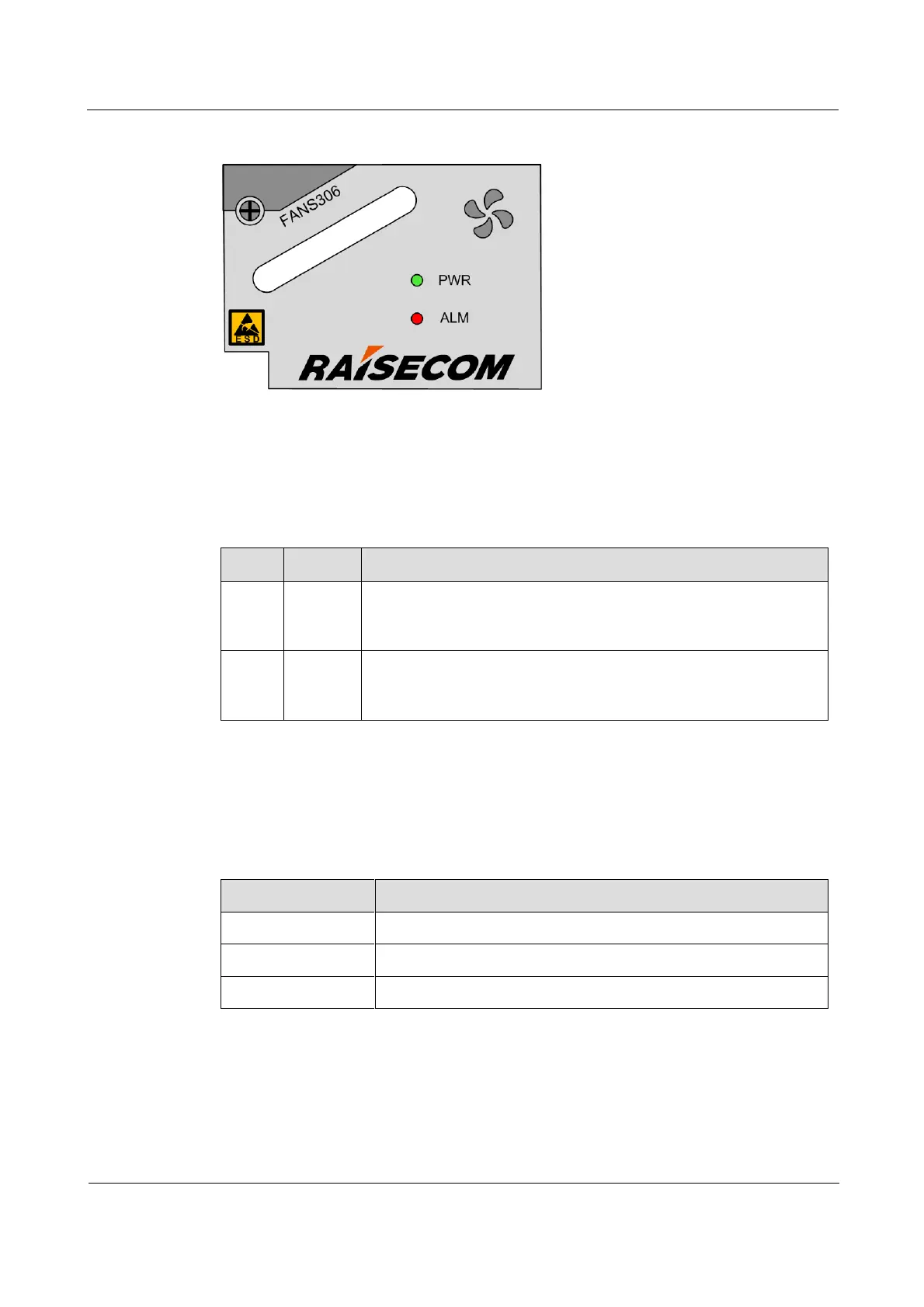

Figure 2-12 Panel of the FANS306 module
2.7.3 LEDs
There are 2 LEDs on the FANS306 module.
Table 2-22 lists LEDs on the FANS306 module.
Table 2-22 LEDs on the FANS306 module
LED
Status
Description
PWR
Green
Power LED

Green: the power supply is working properly.

Off: the power supply is working improperly.
ALM
Red
Alarm LED

Red: the module is working improperly and an alarm is generated.

Off: the module is working properly.
2.7.4 Technical specifications
Table 2-23 lists technical specifications of the FANS306 module.
Table 2-23 Technical specifications of the FANS306 module
Item
Description
Dimensions
41.9 mm (Width) × 230.1 mm (Depth) × 41.1 mm (Height)
Weight
0.3 kg
Power consumption
3 W
