ISCOM5508 (B) Hardware Description
3 Fiber and cables
Raisecom Technology Co., Ltd.
24
Connector 1 (RJ45)
EIA/TIA568B
Connector 2 (RJ45)
EIA/TIA568B
PIN 7
White/Brown
PIN 7
White/Brown
PIN 8
Brown
PIN 8
Brown

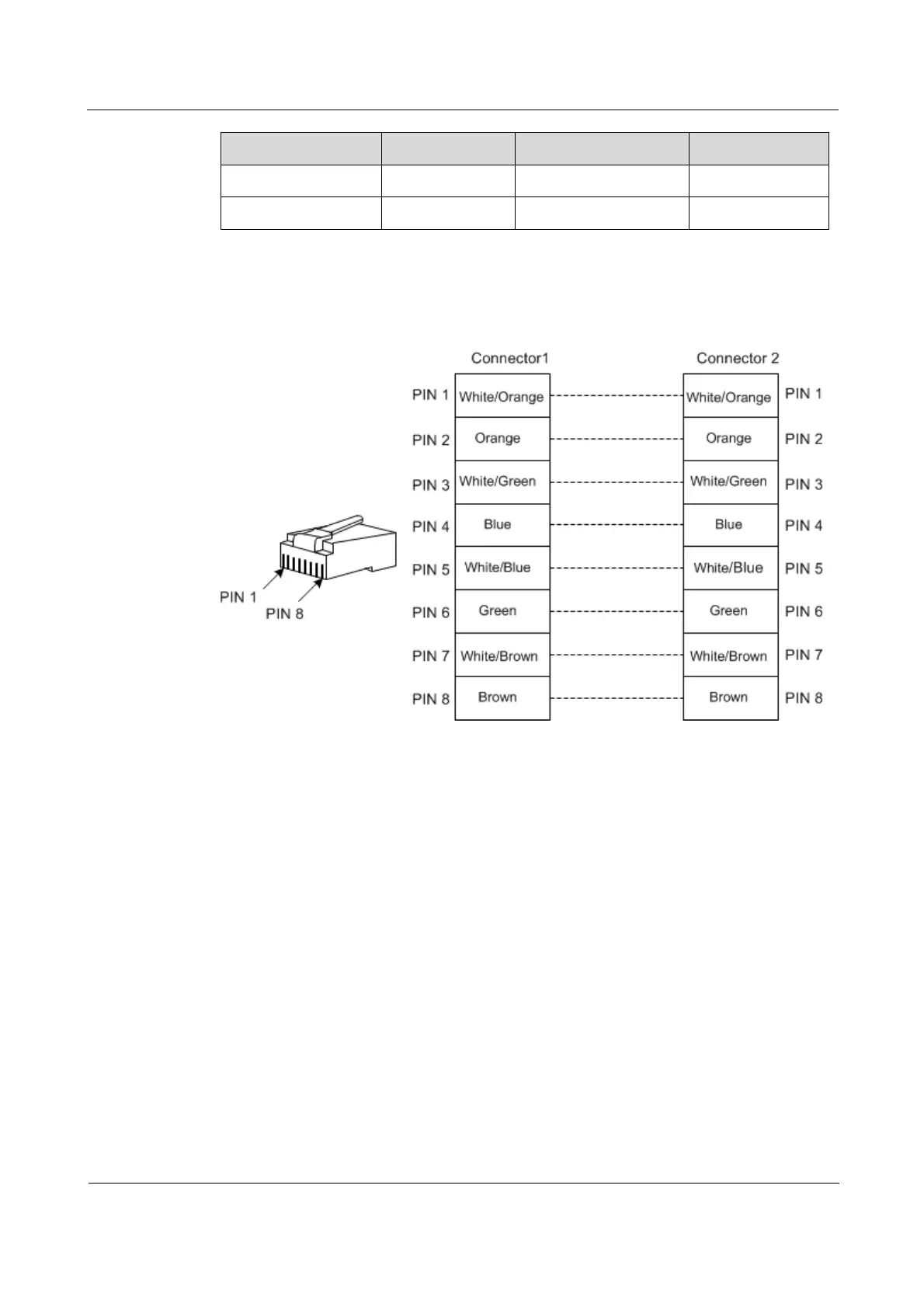

Figure 3-4 shows wiring of the straight-through cable.
Figure 3-4 Wiring of the straight-through cable wiring
Crossover cable
Wiring of the 100 Mbit/s crossover cable is different from that of the 1000 Mbit/s crossover
cable.
One RJ45 connector of the 100 Mbit/s crossover cable follows EIA/TIA568A wiring; the
other RJ45 connector follows EIA/TIA568B wiring.
Figure 3-5 shows wiring of the 100 Mbit/s crossover cable.
