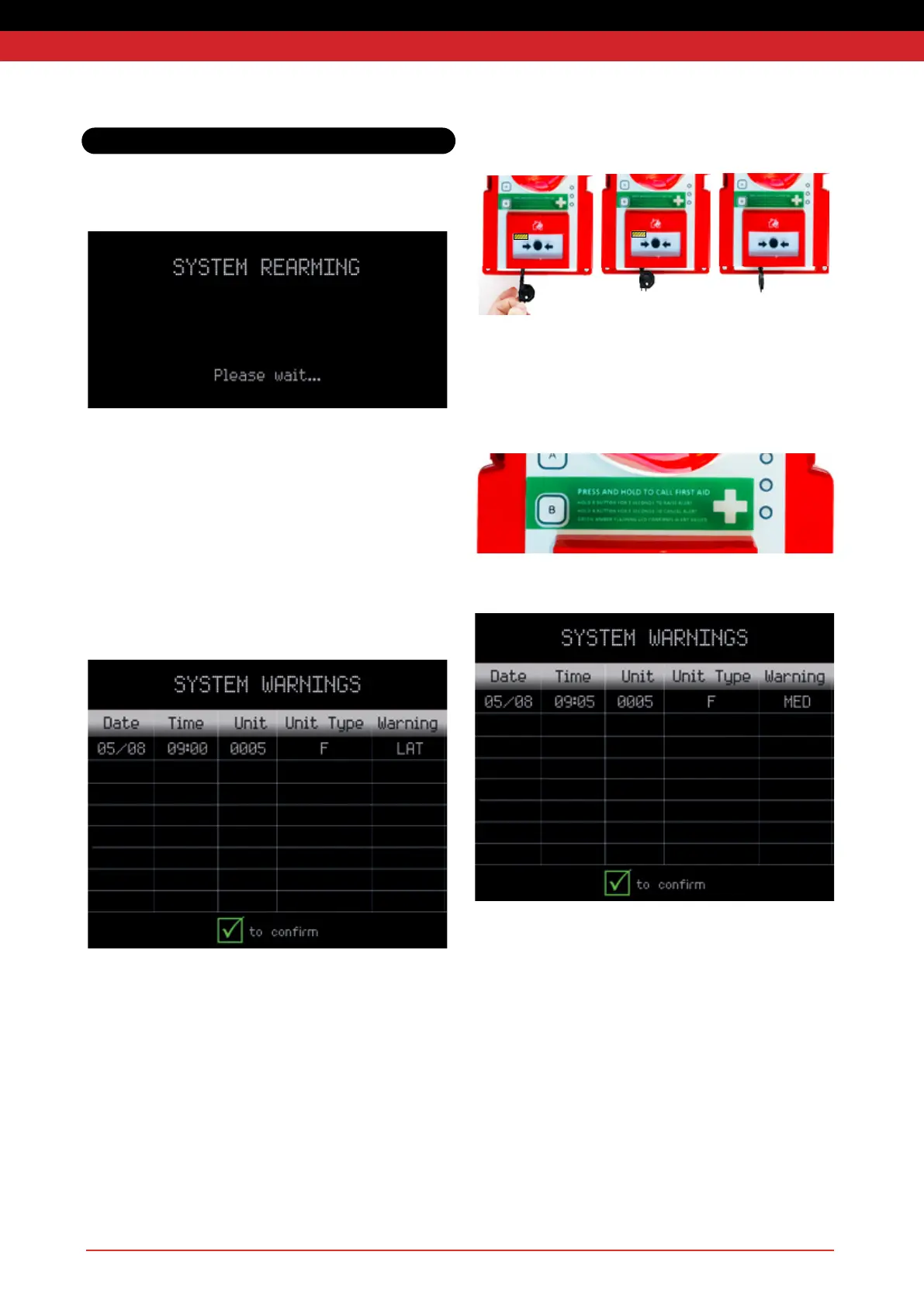

Raising a Medical Alert
The medical alert can be raised from any call point by pressing and
holding the B button for 2 seconds, until the alternating amber-green
LEDsashrepeatedly.
Raising a medical alert sends a message to the CONNECT unit. It
does not trigger any alert on other units.
Cancelling a Medical Alert
The medical alert can be cancelled either from the call point used to
create it, or from the CONNECT unit.
To cancel from the call point, press and hold the B button for 5
seconds, until the alternating LEDs turn off. To cancel from the
CONNECT unit, select the alert on the Warnings screen and press the
R,thenpressthearrownexttoYestoconrm.Theaccesscodeis
required to cancel a medical alert. The default PIN number is 1234.
During the re-arm period, the alarm cannot be reactivated. It is
thereforevitaltoconrmthatthereisnorehazardbeforesilencing
the alarm.
Resetting a Call Point
Anyrepointunitswithactivatedcallpointswillperiodicallybeepafter
the re-arm period has ended as a reminder that the call points need to
be mechanically reset using the key before they can be used to raise
arealarm.
The Latched call point alert displayed on the CONNECT will show
which individual call point (or call points) need to be reset:
1) Insert reset key with tab to the right as shown below.
2) Push key in as far as possible (take care not to use excessive
force as this could damage the unit)
3) Turn key anti-clockwise until a loud mechanical click is heard.
4) Remove the key
Ensure the call point is fully reset before removing the key. Partially
resetting a latched call point after the alarm has been cancelled can
retriggertherealarm.
