100
PD 1309.6269.62-02
3.7 Return Loss Measurement
(For R&S FSH models with a tracking generator and
a built-in VSWR bridge only, order no. 1309.6000.24
or 1309.6000.28)
The R&S FSH-Z28 (0 GHz to 8 GHz) or R&S FSH-Z29
(0 GHz to 3.6 GHz) calibration standard is required
for measuring the return loss.

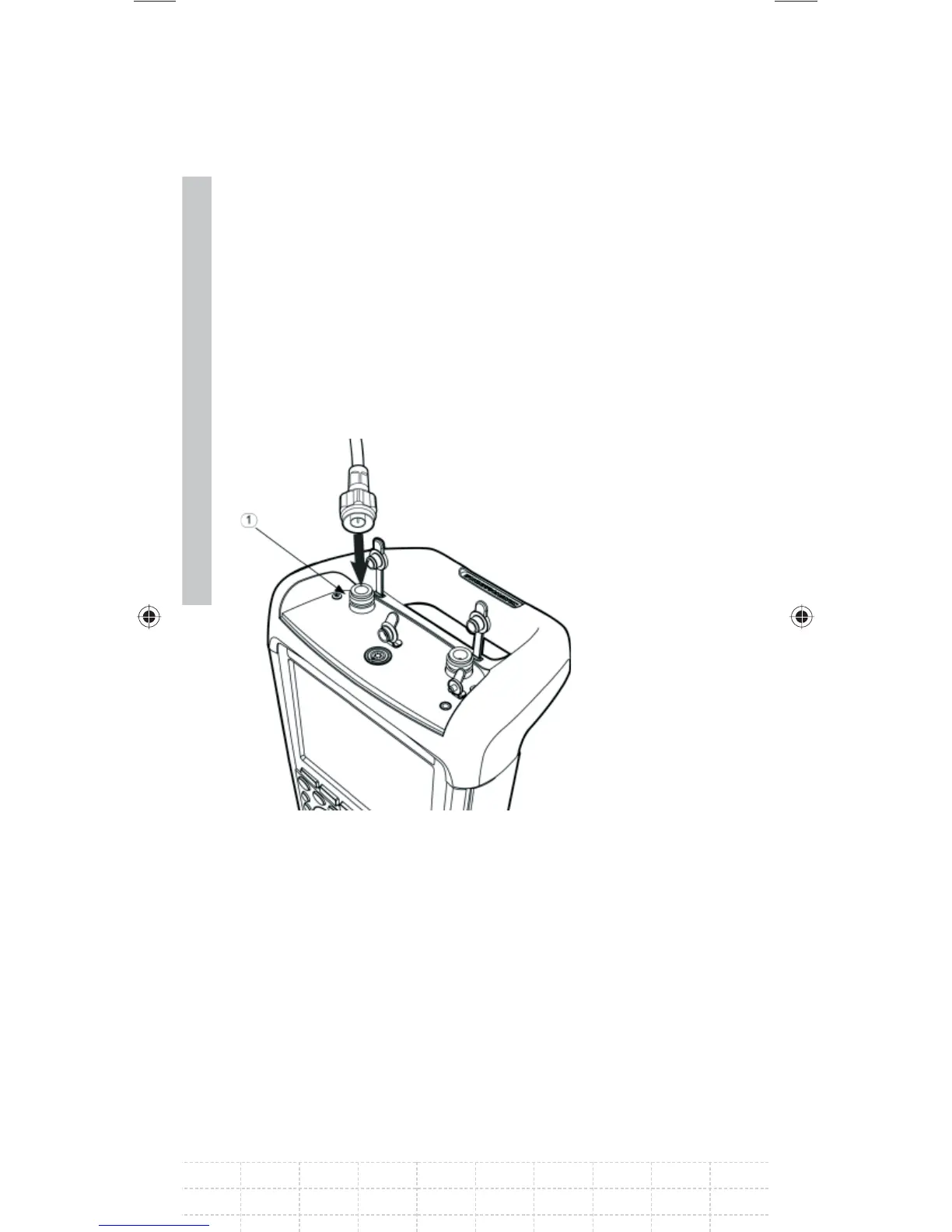

PORT 1 (1)Fig.:
The refl ection measurement can be taken using
the R&S FSH with the built-in VSWR bridge at
either port 1 or port 2. The fi gure above shows the
connection of the device under test to PORT 1.
