R&S FSH series User Manual

96
PD 1309.6269.62-02

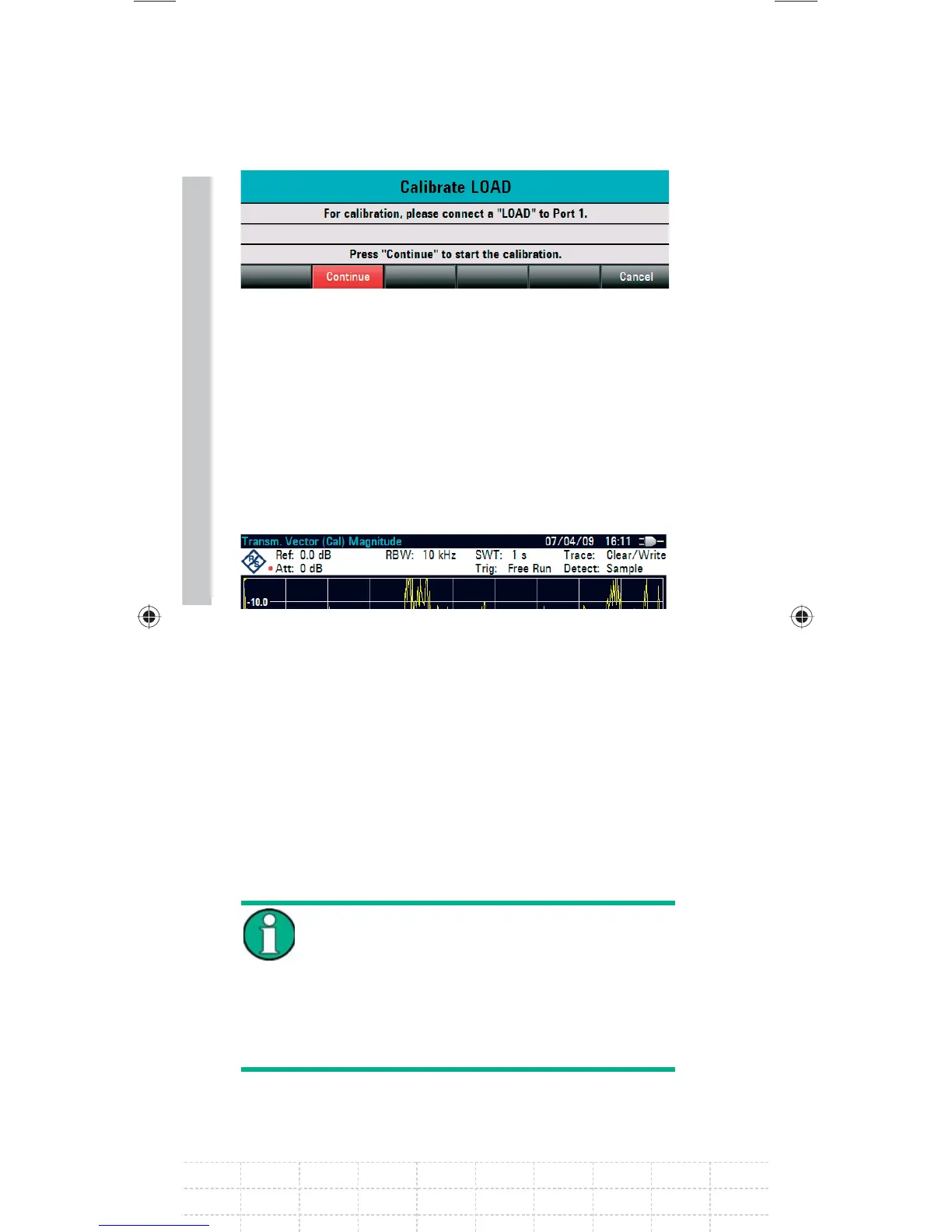

 Connect the generator output with the 50 Ω
termination.
 Press the CONTINUE softkey.
When calibration is over, TRANSM. VECTOR (CAL)
is displayed in the upper area of the screen to
indicate that the R&S FSH is vector-calibrated for
transmission measurement.
3.6.2 Calibrating the R&S FSH for Scalar
Measurement of the Transmission
Function
The following example shows a scalar
measurement of the transmission function. If the
option R&S FSH-K42 is installed, the measurement
must fi rst be switched to scalar (only for R&S FSH
models 1309.6000.24 or 1309.6000.28).
Select VECTOR to increase the accuracy
(for R&S FSH models 1309.6000.24 and
1309.6000.28 with option K42 (vector
network measurements) only). For
R&S FSH models 1309.6000.14 and
1309.6000.18 and without option K42 only
SCALAR can be selected.
GalaxyE_v1-10_3.indd 96GalaxyE_v1-10_3.indd 96 08.04.2009 15:21:5008.04.2009 15:21:50

R&S FSH series Specifications

General

Input Impedance	50 Ω
Display	640 x 480 pixels
Tracking generator	Optional
Interfaces	USB, LAN
Third Order Intercept (TOI)	+15 dBm typical
Input VSWR	≤1.5:1 (typical)
Input Connector	N (f)
Power Supply	100 V to 240 V
Frequency range	9 kHz to 3.6/8/13.6/20 GHz
Battery life	Approx. 4 hours (standard battery)
