R&S FSH series User Manual

108
PD 1309.6269.62-02
3.8 Measuring Cable Faults
(For R&S FSH models with a tracking generator and
a built-in VSWR bridge only, order no. 1309.6000.24
or 1309.6000.28, and installed option R&S FSH-K41
(distance to fault measurement). The R&S FSH-Z20
spare RF cable and the spare FSH-Z28 (0 GHz
to 8 GHz) or R&S FSH-Z29 (0 GHz to 3.6 GHz)
calibration standard are also required.)

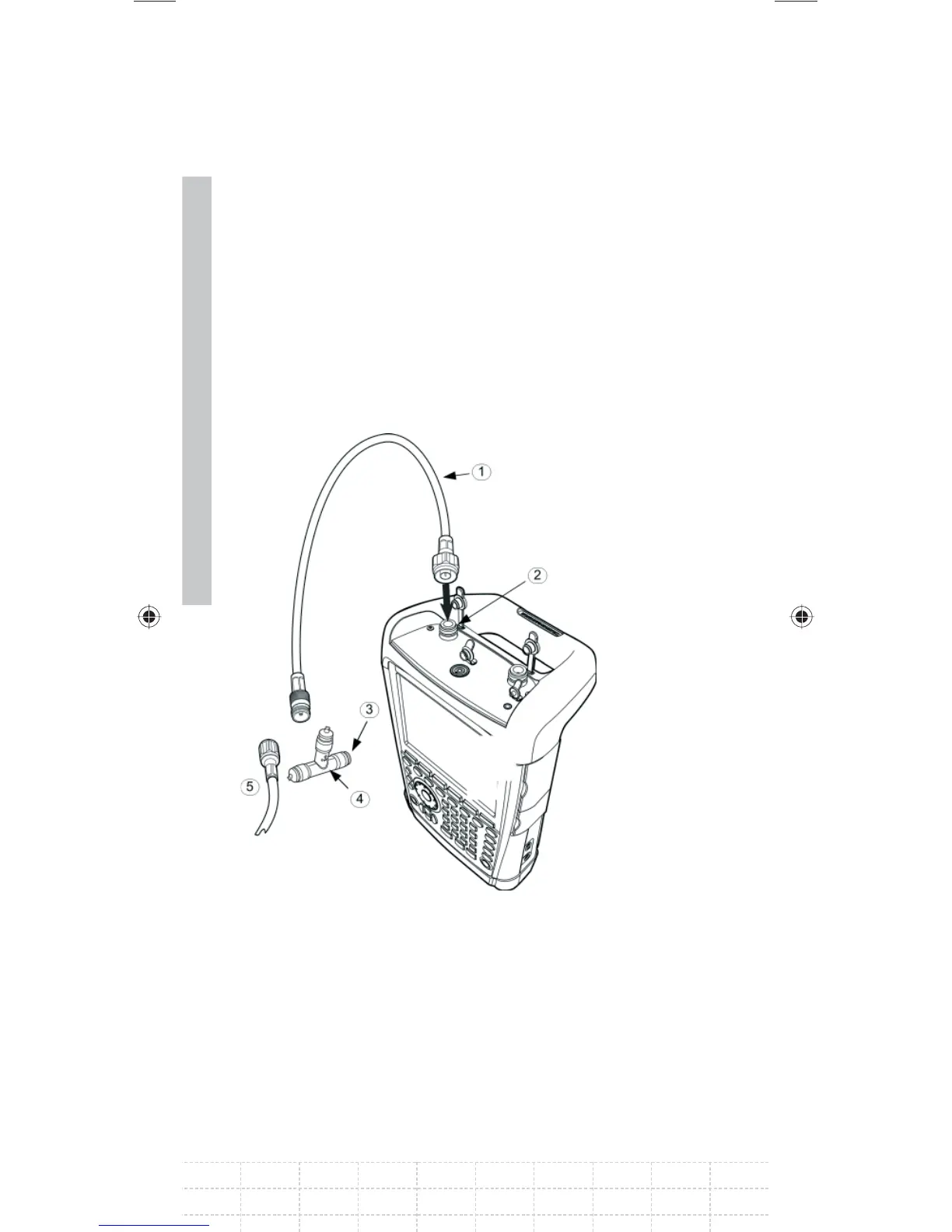

1 Measurement cable
2 PORT 1 RF-Input
3 Short
4 Calibration standard R&S FSH-Z28 or R&S
FSH-Z29
5 Device under test
GalaxyE_v1-10_3.indd 108GalaxyE_v1-10_3.indd 108 08.04.2009 15:21:5208.04.2009 15:21:52

R&S FSH series Specifications

General

Input Impedance	50 Ω
Display	640 x 480 pixels
Tracking generator	Optional
Interfaces	USB, LAN
Third Order Intercept (TOI)	+15 dBm typical
Input VSWR	≤1.5:1 (typical)
Input Connector	N (f)
Power Supply	100 V to 240 V
Frequency range	9 kHz to 3.6/8/13.6/20 GHz
Battery life	Approx. 4 hours (standard battery)
