R&S FSH series User Manual

98
PD 1309.6269.62-02

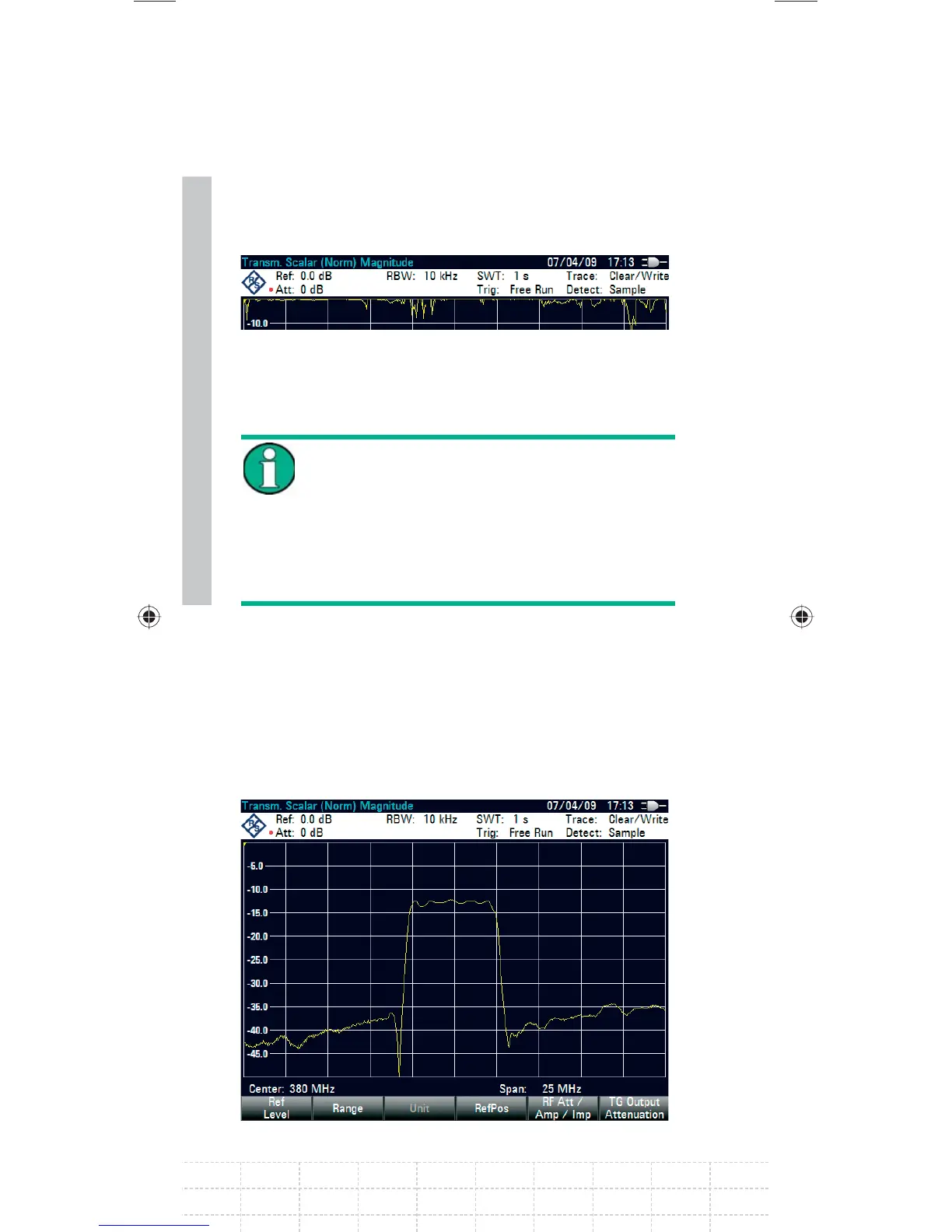

After the calibration is fi nished, the R&S FSH
displays TRANSM. SCALAR (NORM) at the top.
3.6.3 Measure the magnitude of the
transfer function
After a two-port calibration it is possible
to switch between forward and reverse
without having to recalibrate the R&S FSH
anew. See also the paragraph on two-port
calibration in the chapter on measuring
the scalar return loss (for R&S FSH models
1309.6000.24 and 1309.6000.28 only).
 Connect the DUT between the RF input and the
generator‘s output.
The R&S FSH displays the magnitude of the
transfer function. You can read out values with the
markers, for example.
GalaxyE_v1-10_3.indd 98GalaxyE_v1-10_3.indd 98 08.04.2009 15:21:5108.04.2009 15:21:51

R&S FSH series Specifications

General

Input Impedance	50 Ω
Display	640 x 480 pixels
Tracking generator	Optional
Interfaces	USB, LAN
Third Order Intercept (TOI)	+15 dBm typical
Input VSWR	≤1.5:1 (typical)
Input Connector	N (f)
Power Supply	100 V to 240 V
Frequency range	9 kHz to 3.6/8/13.6/20 GHz
Battery life	Approx. 4 hours (standard battery)
