65
E-02

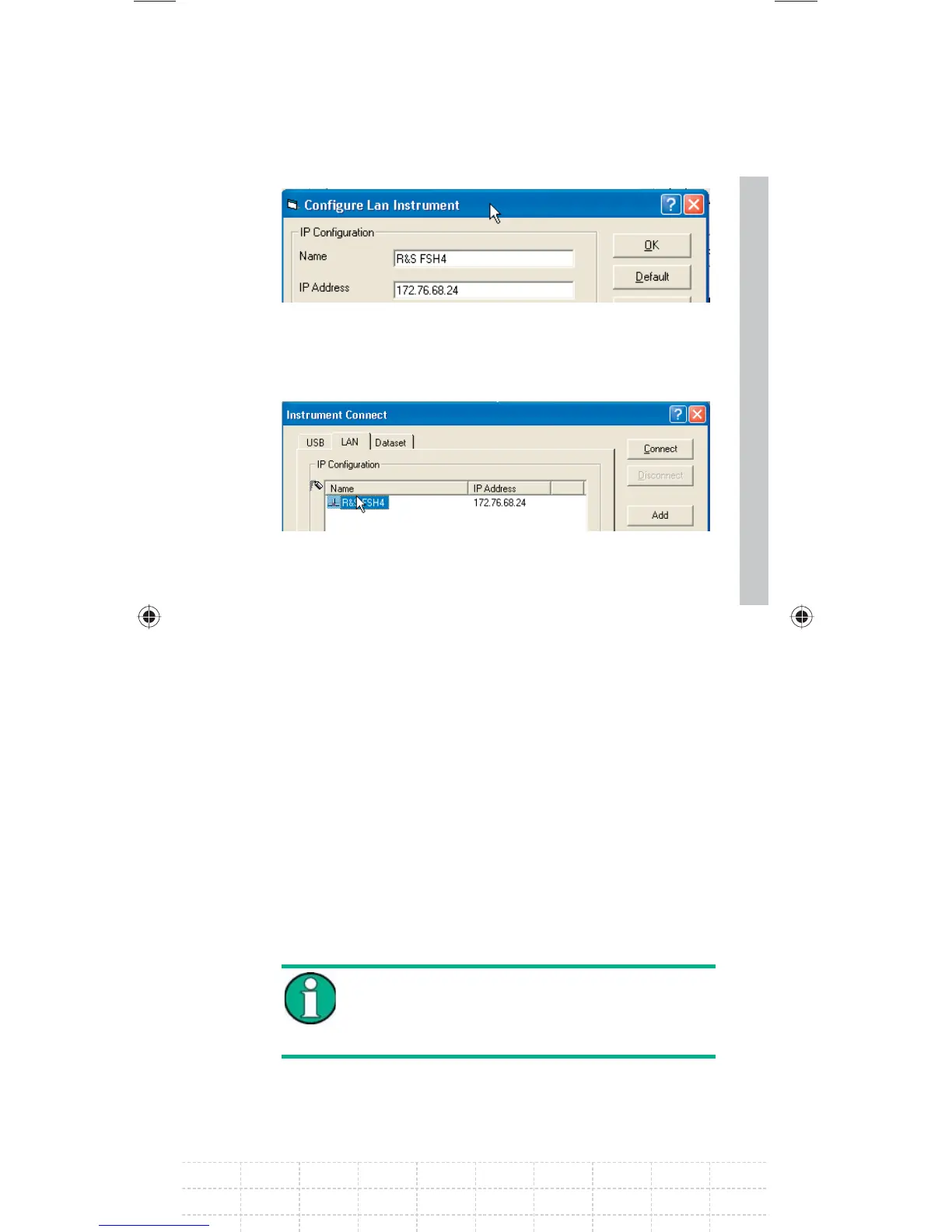

The connection is now confi gured and appears in
the INSTRUMENT CONNECT window.
Select the new connection named “R&S FSH4”
and make the connection to the R&S FSH with
CONNECT.
2.9.2 Connection via an existing LAN
network
The R&S FSH’s IP address can be automatically
drawn from the DHCP server, or a fi xed
address can be defi ned manually. With manual
allocation, a fi xed IP address and subnet mask
must be assigned to the R&S FSH as described
in the chapter on direct LAN connection. The
R&S FSH4View software must then be confi gured
as described with the assigned IP address.
Contact your IT system manager to obtain
a free IP address.
