 Press the SPAN key.
 Using the numeric keys, enter the span.
Alternately, the start and stop frequencies can be
entered using the START FREQ and STOP FREQ
softkeys in the frequency menu.
3.6.1 Calibrating the R&S FSH for Vector
Measurement of the Transmission
Function
(Only for R&S FSH models 1309.6000.24 and
1309.6000.28 with option R&S FSH-K42)
 Press the MEAS key.
 Press the CALIBRATE softkey.
 Select TRANSMISSION FWD (PORT1 -> 2) using
the rotary knob and confi rm with ENTER or the
CALIBRATE softkey.
To calibrate the transfer measurement, the
R&S FSH requests that the RF input be connected
to the tracking generator output.

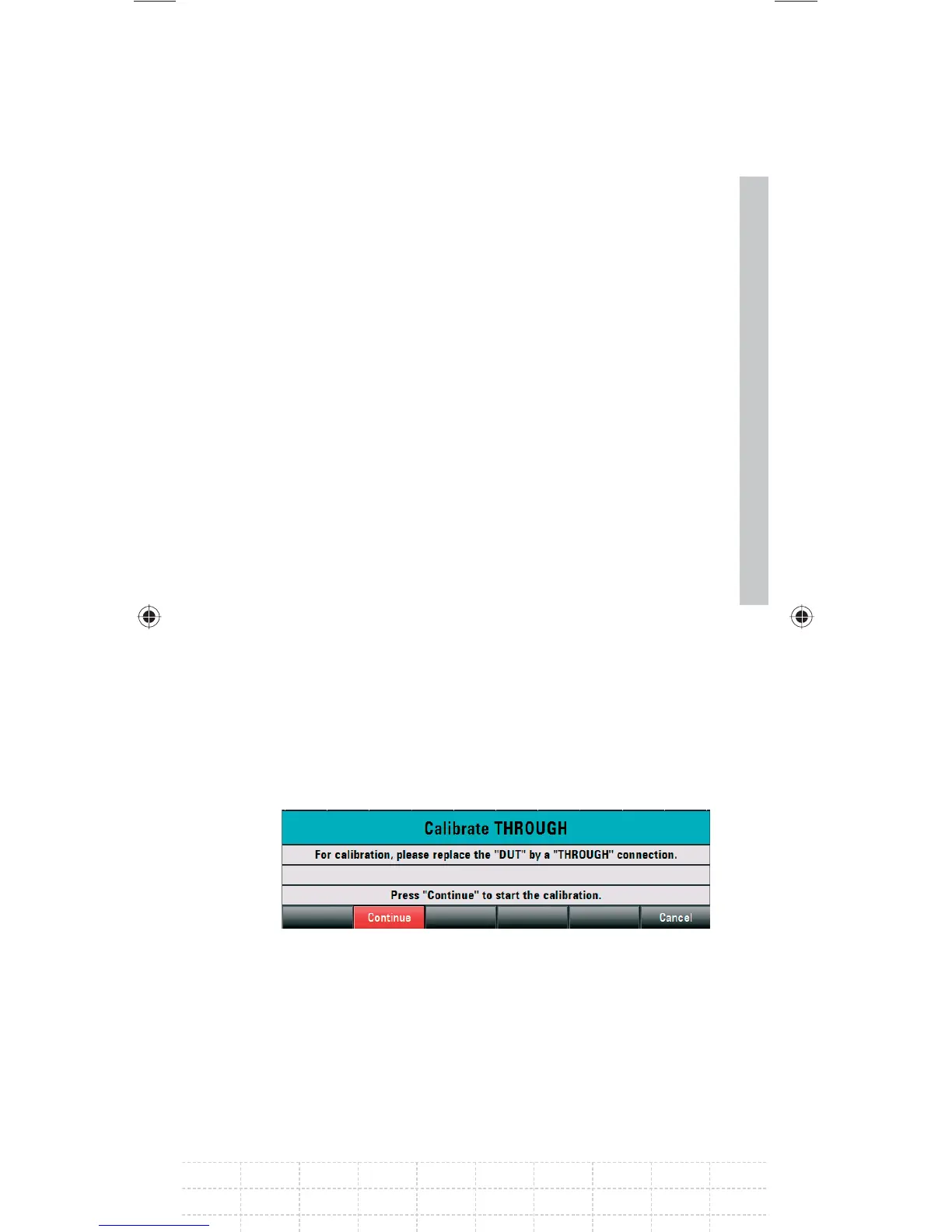

 Connect the RF input of the R&S FSH directly to
the tracking generator output without the DUT.
 Press the CONTINUE softkey to start calibration.
The R&S FSH then requests to terminate the output
of the tracking generators into 50 Ω (LOAD).
GalaxyE_v1-10_3.indd 95GalaxyE_v1-10_3.indd 95 08.04.2009 15:21:5008.04.2009 15:21:50

R&S FSH series Specifications

General

Input Impedance	50 Ω
Display	640 x 480 pixels
Tracking generator	Optional
Interfaces	USB, LAN
Third Order Intercept (TOI)	+15 dBm typical
Input VSWR	≤1.5:1 (typical)
Input Connector	N (f)
Power Supply	100 V to 240 V
Frequency range	9 kHz to 3.6/8/13.6/20 GHz
Battery life	Approx. 4 hours (standard battery)
