3.9 Saving and Recalling Settings
and Test Results
The R&S FSH can store measuring results and
settings in the internal memory or on a removable
SD memory card. Results and settings are always
stored together, allowing them to be interpreted
in context when recalled. The R&S FSH can store
at least 100 data records in the internal memory
which are differentiated by their names.

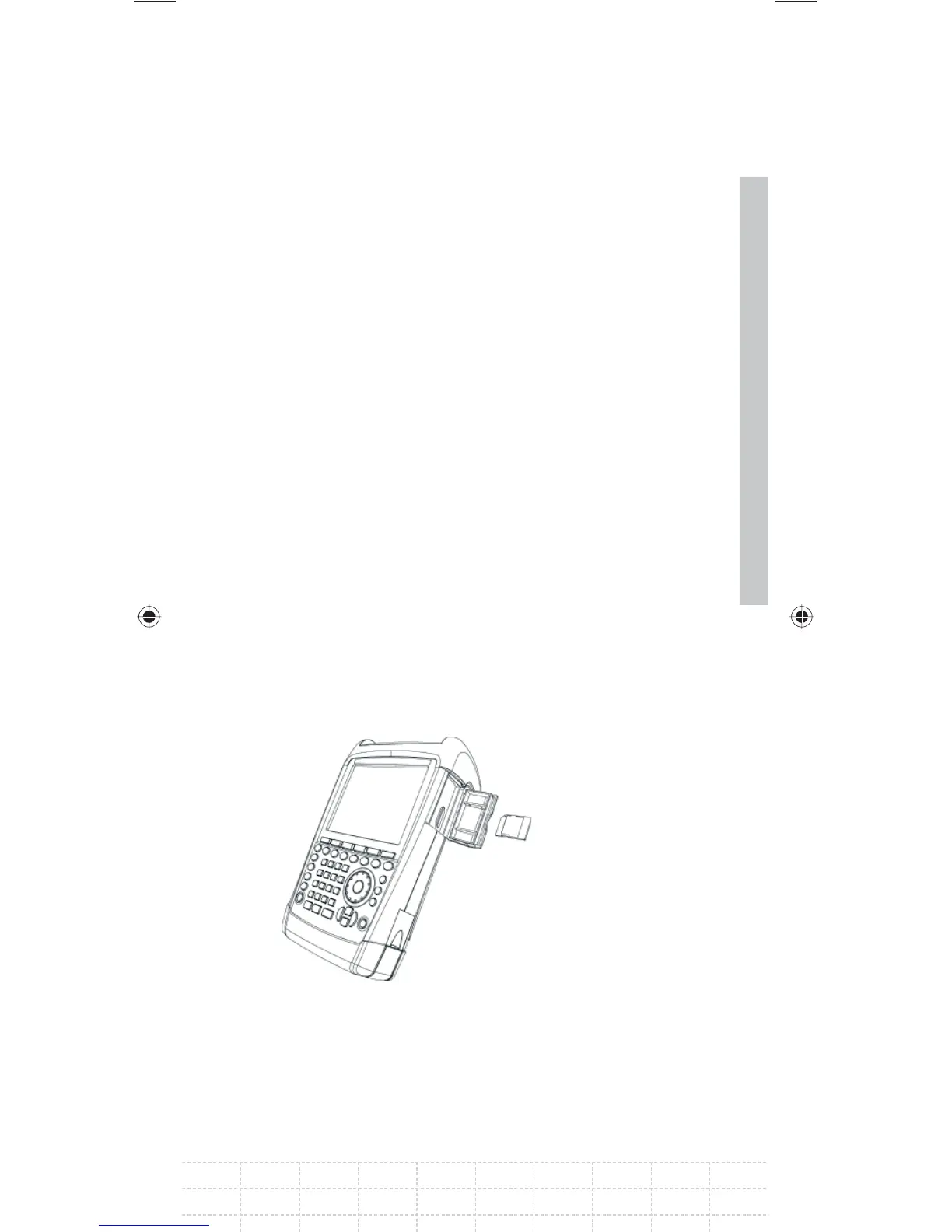

A removable SD card can be used as a memory
extension or for data transfer to a PC without
a direct LAN or USB connection. The SD
memory card (e.g. R&S HA-Z231, 1GB, order no.
1309.6217.00) is inserted into the SD card slot on
the right side of the R&S FSH until it audibly clicks
into place. To remove the SD card, do not pull the
SD card but fi rst release it by pressing it in and
then pull it out.
GalaxyE_v1-10_3.indd 115GalaxyE_v1-10_3.indd 115 08.04.2009 15:21:5308.04.2009 15:21:53

R&S FSH series Specifications

General

Input Impedance	50 Ω
Display	640 x 480 pixels
Tracking generator	Optional
Interfaces	USB, LAN
Third Order Intercept (TOI)	+15 dBm typical
Input VSWR	≤1.5:1 (typical)
Input Connector	N (f)
Power Supply	100 V to 240 V
Frequency range	9 kHz to 3.6/8/13.6/20 GHz
Battery life	Approx. 4 hours (standard battery)
