R&S FSH series User Manual

119
E-02
3.9.2 Recalling Measurement Results
Use the R&S FSH’s recall function to review
previously saved measurement results and
settings.
 Press the SAVE / RECALL key.
 Press the RECALL softkey.

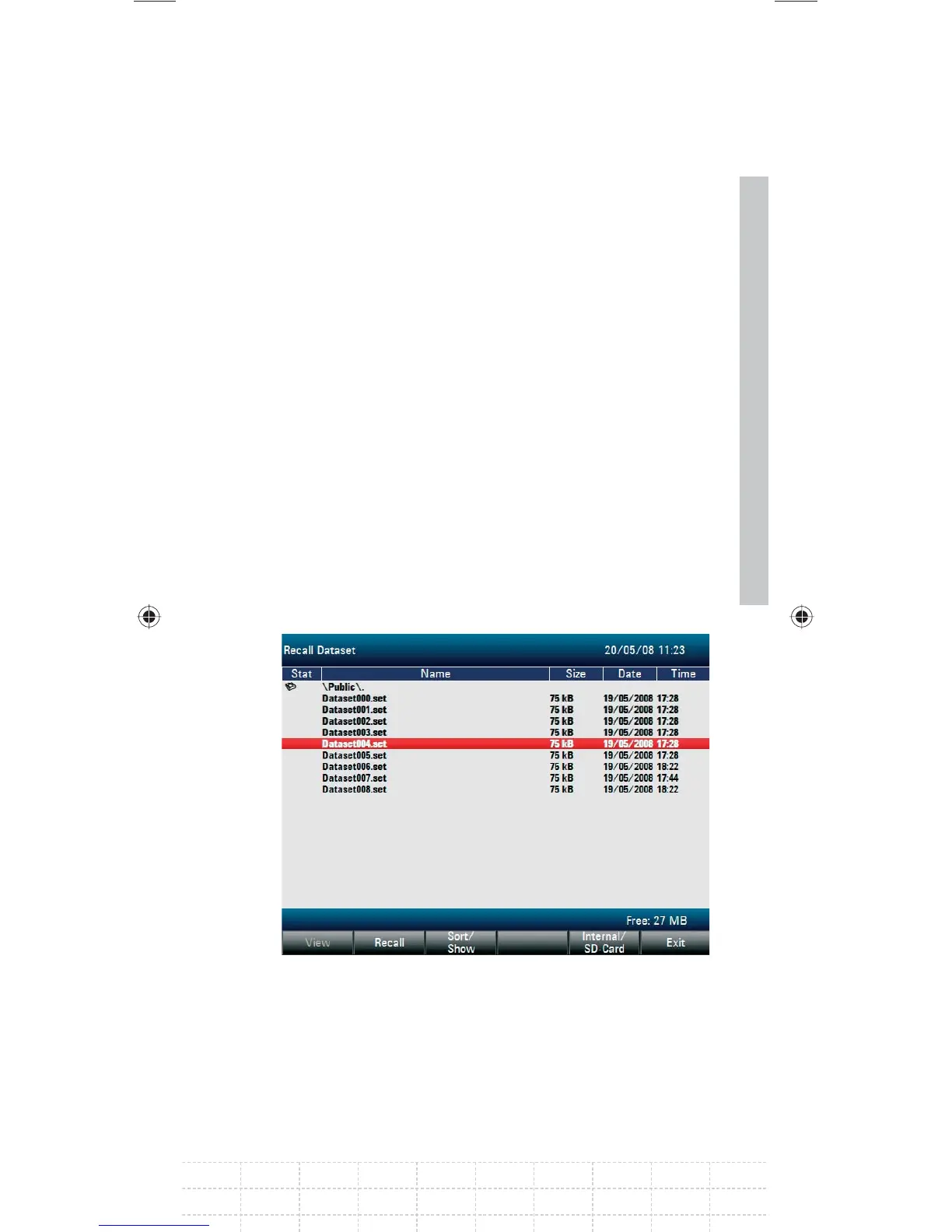

A list of all saved data sets opens. If a measuring
result is to be called from the SD card, press the
INTERNAL/SD-CARD softkey. All data records on
the SD card are displayed.
 Select a data set from the list using the rotary
knob or the cursor keys (∧ or ∨). Confi rm your
selection by pressing the RECALL softkey.
GalaxyE_v1-10_3.indd 119GalaxyE_v1-10_3.indd 119 08.04.2009 15:21:5308.04.2009 15:21:53

R&S FSH series Specifications

General

Input Impedance	50 Ω
Display	640 x 480 pixels
Tracking generator	Optional
Interfaces	USB, LAN
Third Order Intercept (TOI)	+15 dBm typical
Input VSWR	≤1.5:1 (typical)
Input Connector	N (f)
Power Supply	100 V to 240 V
Frequency range	9 kHz to 3.6/8/13.6/20 GHz
Battery life	Approx. 4 hours (standard battery)
