R&S FSH series User Manual

102
PD 1309.6269.62-02
Alternatively, the start and stop frequency can
be input using the START FREQ and STOP FREQ
softkeys in the frequency menu.
3.7.1 Calibrate the R&S FSH for the
Vector Return Loss Measurement
 Press the MEAS key.
 Press the CALIBRATE softkey.
 Select REFLECTION PORT 1 using the rotary
knob or the cursor keys.
 Confi rm with ENTER or by pressing the
CALIBRATE softkey.

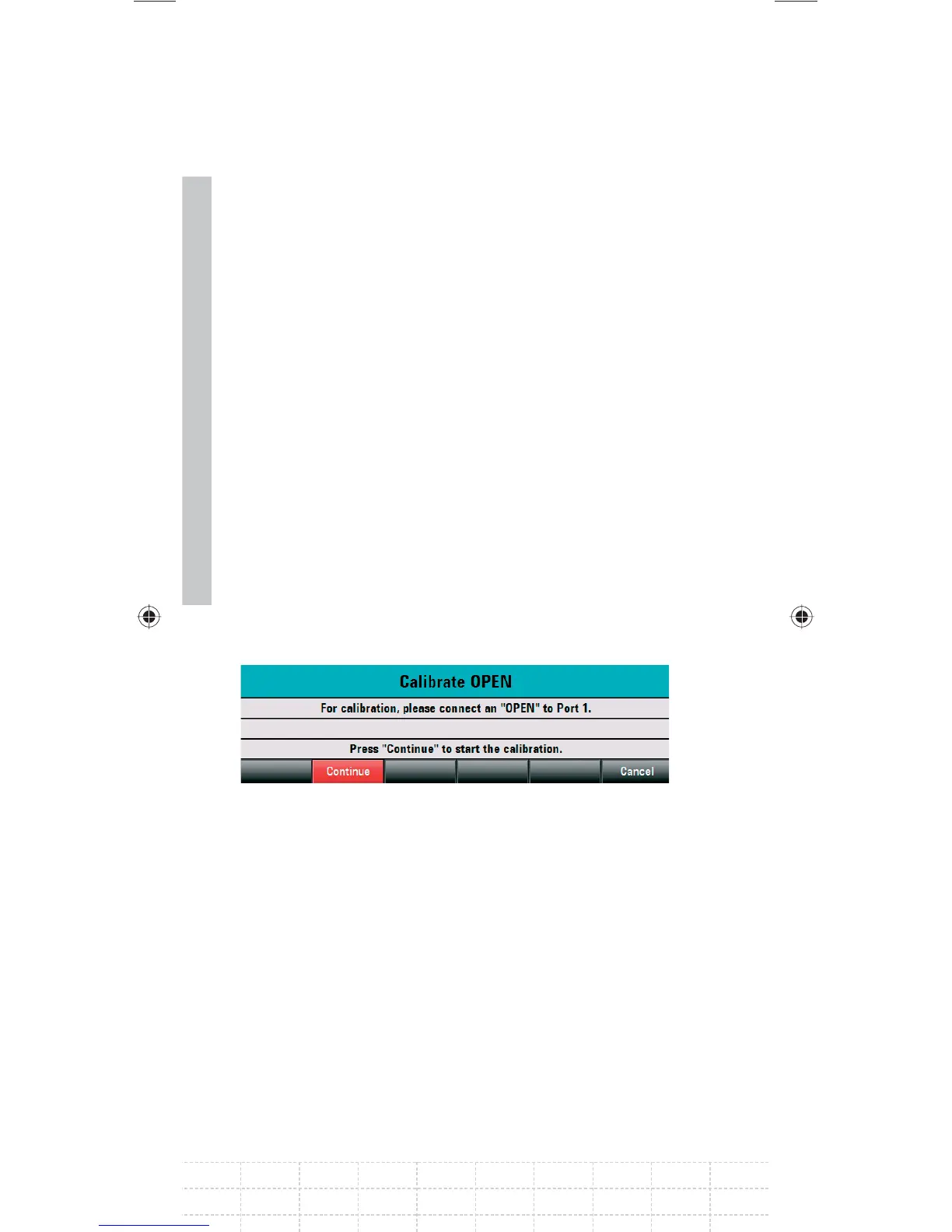

The R&S FSH displays a message requesting
termination of the measurement input into an open
circuit (Open).
 Terminate the measurement input of the VSWR
bridge or the end of the measurement cable
into an open circuit.
 Start open-circuit calibration by pressing
CONTINUE.
When the open-circuit calibration is done, the
R&S FSH outputs a message requesting the
termination of the measurement port into a short
circuit (SHORT).
GalaxyE_v1-10_3.indd 102GalaxyE_v1-10_3.indd 102 08.04.2009 15:21:5208.04.2009 15:21:52

R&S FSH series Specifications

General

Input Impedance	50 Ω
Display	640 x 480 pixels
Tracking generator	Optional
Interfaces	USB, LAN
Third Order Intercept (TOI)	+15 dBm typical
Input VSWR	≤1.5:1 (typical)
Input Connector	N (f)
Power Supply	100 V to 240 V
Frequency range	9 kHz to 3.6/8/13.6/20 GHz
Battery life	Approx. 4 hours (standard battery)
