R&S FSH series User Manual

103
E-02

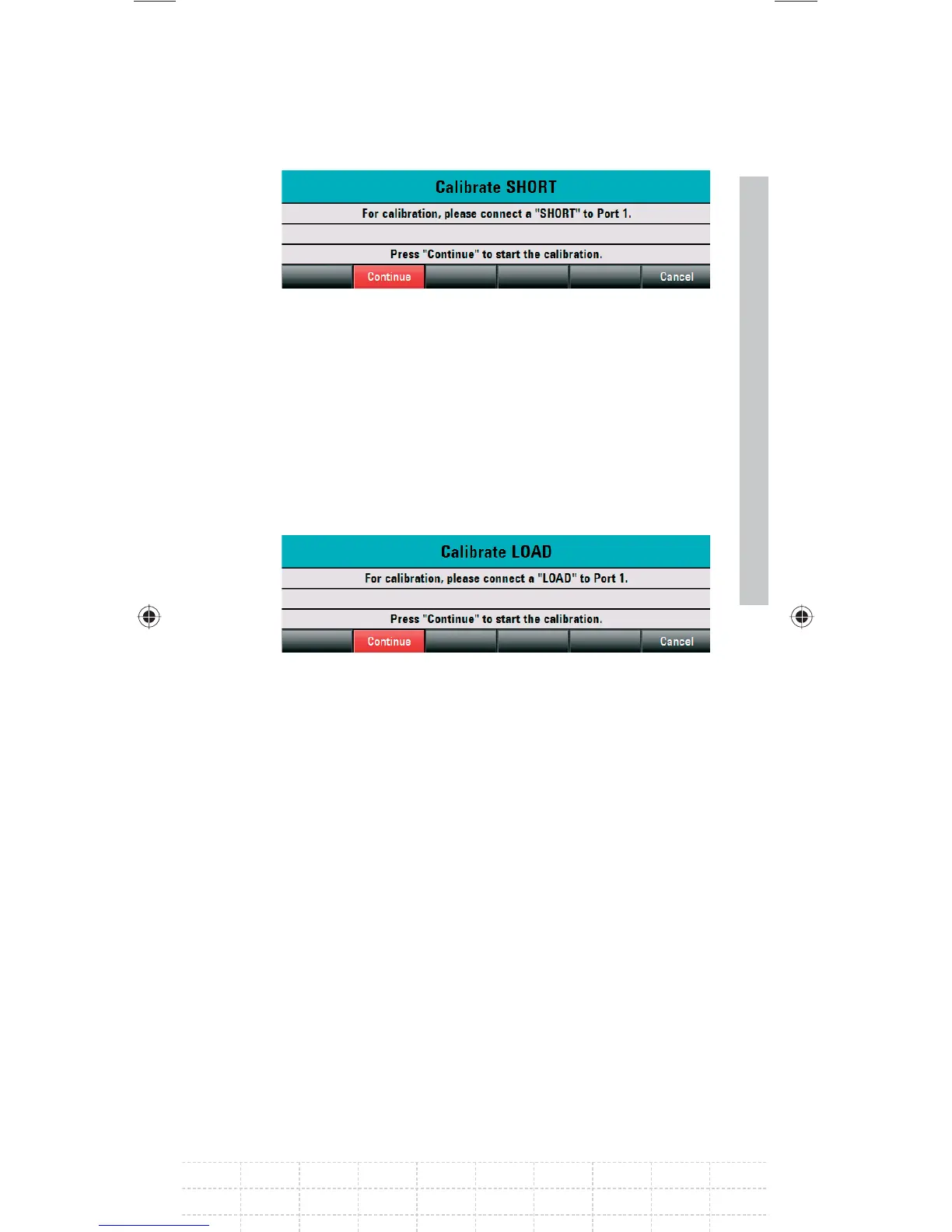

 Terminate the measurement input of the bridge
or the end of the measurement cable into a
short circuit.
 Start the short-circuit calibration by pressing
CONTINUE.
In the third step of calibration, terminate the
measurement port into a 50 Ω termination.
 Terminate the measurement input of the bridge
or the end of the measurement cable into a
50 Ω termination (LOAD)
 Start termination calibration by pressing
CONTINUE.
When calibration is done, the R&S FSH outputs
the message “Calibration Done” for three seconds.
REFL. VECTOR (CAL) is displayed in the upper area
of the diagram. The R&S FSH is vector-calibrated
for refl ection measurements.
Vector refl ection measurements
Select a measurement within the FORMAT softkey
menu. A detailed description of the measurements
is given in the Oerating Manual in chapter
“Measuring the Refl ection Magnitude”.
GalaxyE_v1-10_3.indd 103GalaxyE_v1-10_3.indd 103 08.04.2009 15:21:5208.04.2009 15:21:52

R&S FSH series Specifications

General

Input Impedance	50 Ω
Display	640 x 480 pixels
Tracking generator	Optional
Interfaces	USB, LAN
Third Order Intercept (TOI)	+15 dBm typical
Input VSWR	≤1.5:1 (typical)
Input Connector	N (f)
Power Supply	100 V to 240 V
Frequency range	9 kHz to 3.6/8/13.6/20 GHz
Battery life	Approx. 4 hours (standard battery)
