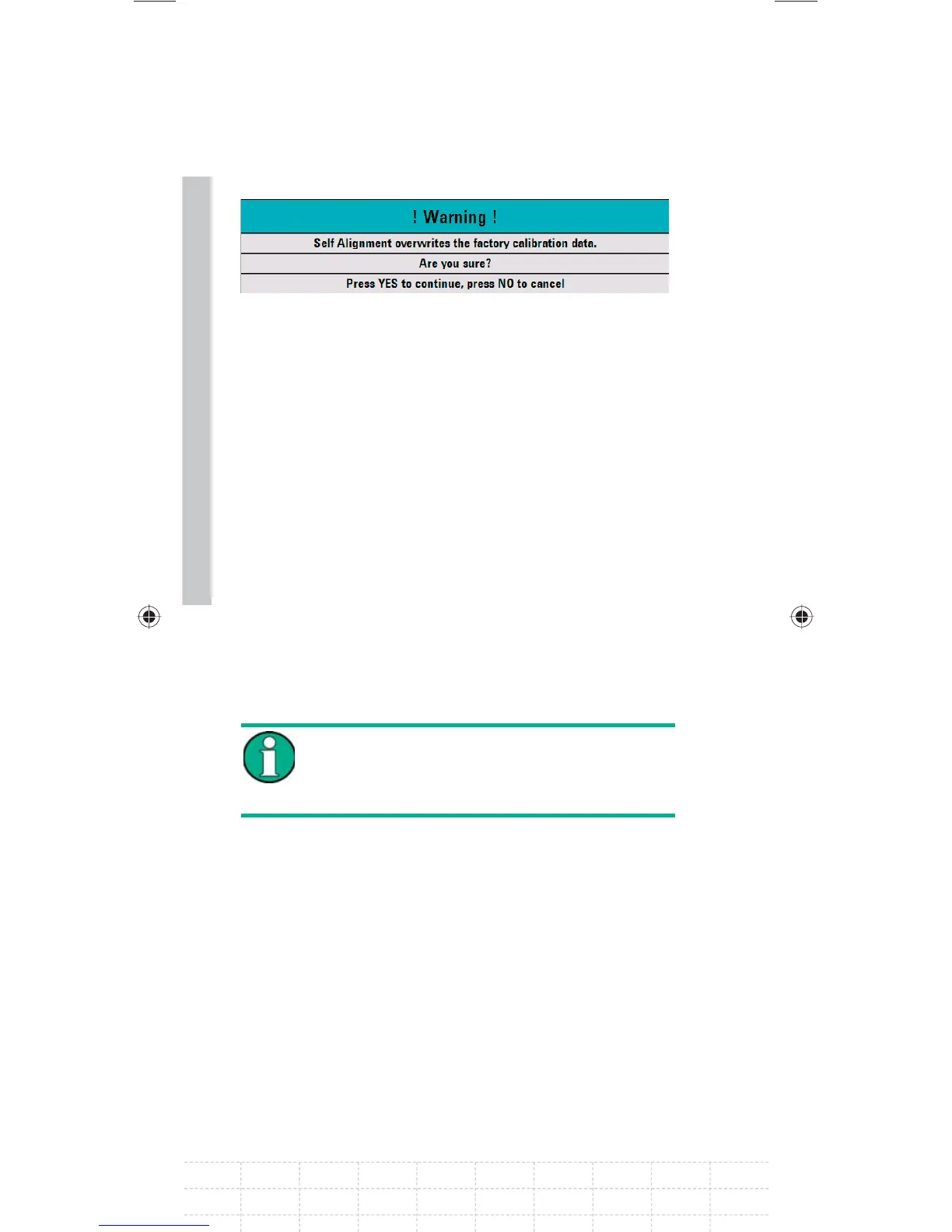

A warning is shown:
Pressing YES will perform the self alignment.
Pressing NO discards this action. Follow the
instructions displayed on the screen.
2.4 Setting the Instrument Default
Setup
2.4.1 Setting Preset
The PRESET key sets the R&S FSH to the default
setup. This allows a new confi guration based on
defi ned measurement parameters to be entered,
without parameters from a previous setting
unintentionally still being active.
Setting the instrument to default setup
only affects the present mode you are
working with.
 Press the PRESET key.
The R&S FSH is set to the default setup. The span
depends on the model. With the R&S FSH4, it is 3.6
GHz; with the R&S FSH8 it is 8 GHz.
GalaxyE_v1-10_3.indd 54GalaxyE_v1-10_3.indd 54 08.04.2009 15:21:4408.04.2009 15:21:44

R&S FSH series Specifications

General

Input Impedance	50 Ω
Display	640 x 480 pixels
Tracking generator	Optional
Interfaces	USB, LAN
Third Order Intercept (TOI)	+15 dBm typical
Input VSWR	≤1.5:1 (typical)
Input Connector	N (f)
Power Supply	100 V to 240 V
Frequency range	9 kHz to 3.6/8/13.6/20 GHz
Battery life	Approx. 4 hours (standard battery)
