3.10 GPS Information Display
(requires HA-Z240 GPS receiver, order
no.1309.6700.02)
Locate your exact position with the GPS receiver
function. The GPS receiver function is set in the
INSTRUMENT SETUP menu.
The reference frequency is automatically
adjusted as soon as the GPS receiver
function is enabled and there is a fi x
connection with enough satellites.

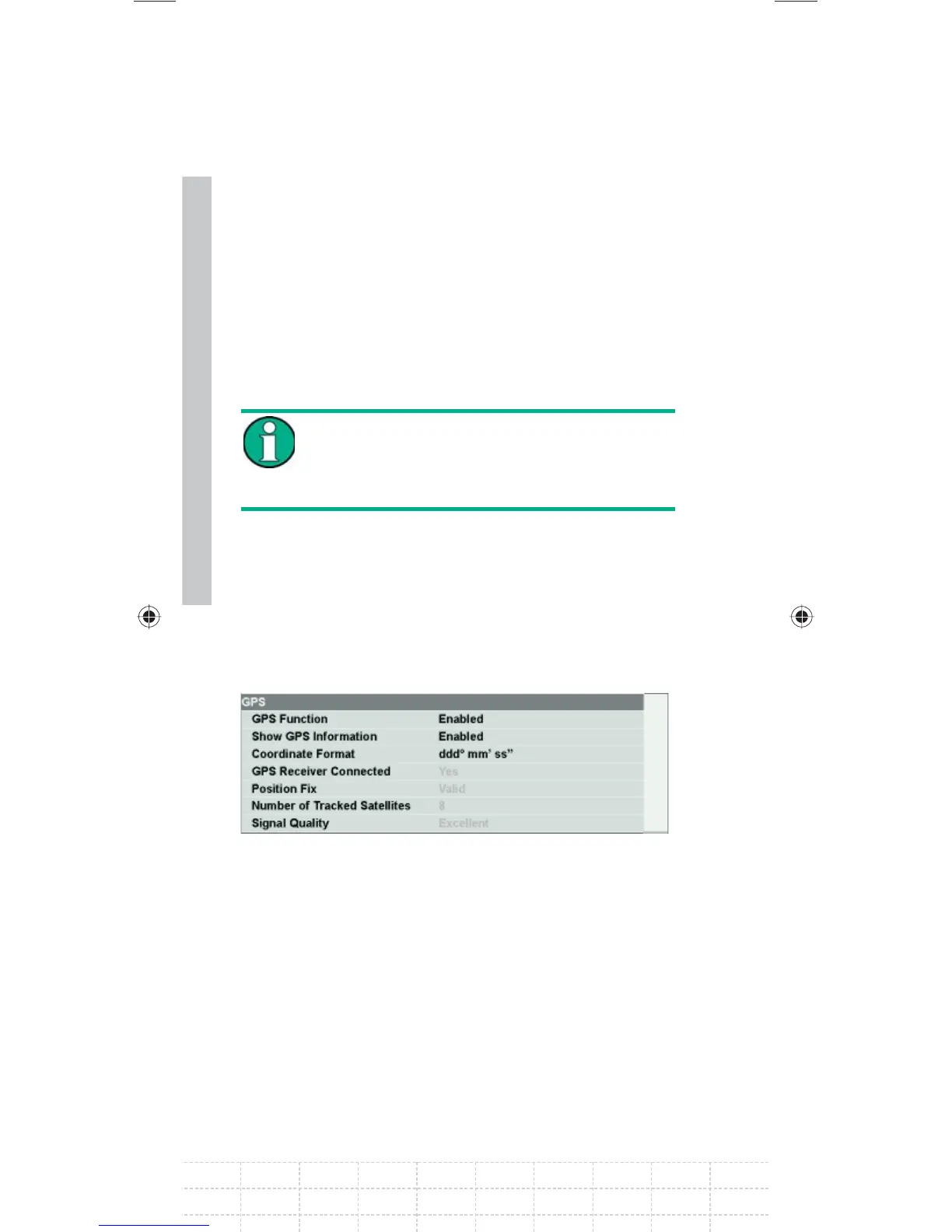

Enable the GPS information
 Press the SETUP key.
 Press the INSTRUMENT SETUP softkey.
The R&S FSH opens a list of general settings.
 Select GPS FUNCTION from the list using the
rotary knob or the cursor keys (∧ or ∨) and
confi rm with ENTER.
 Select ENABLED and confi rm with ENTER.
 Select SHOW GPS INFORMATION from the list
using the rotary knob or the cursor keys (∧ or ∨)
and confi rm with ENTER.
