R&S FSH series User Manual

64
PD 1309.6269.62-02
 An input fi eld opens. Enter the subnet mask
used on the PC, e.g. 255.255.255. 0 with the
numeric keys and confi rm with the ENTER key.

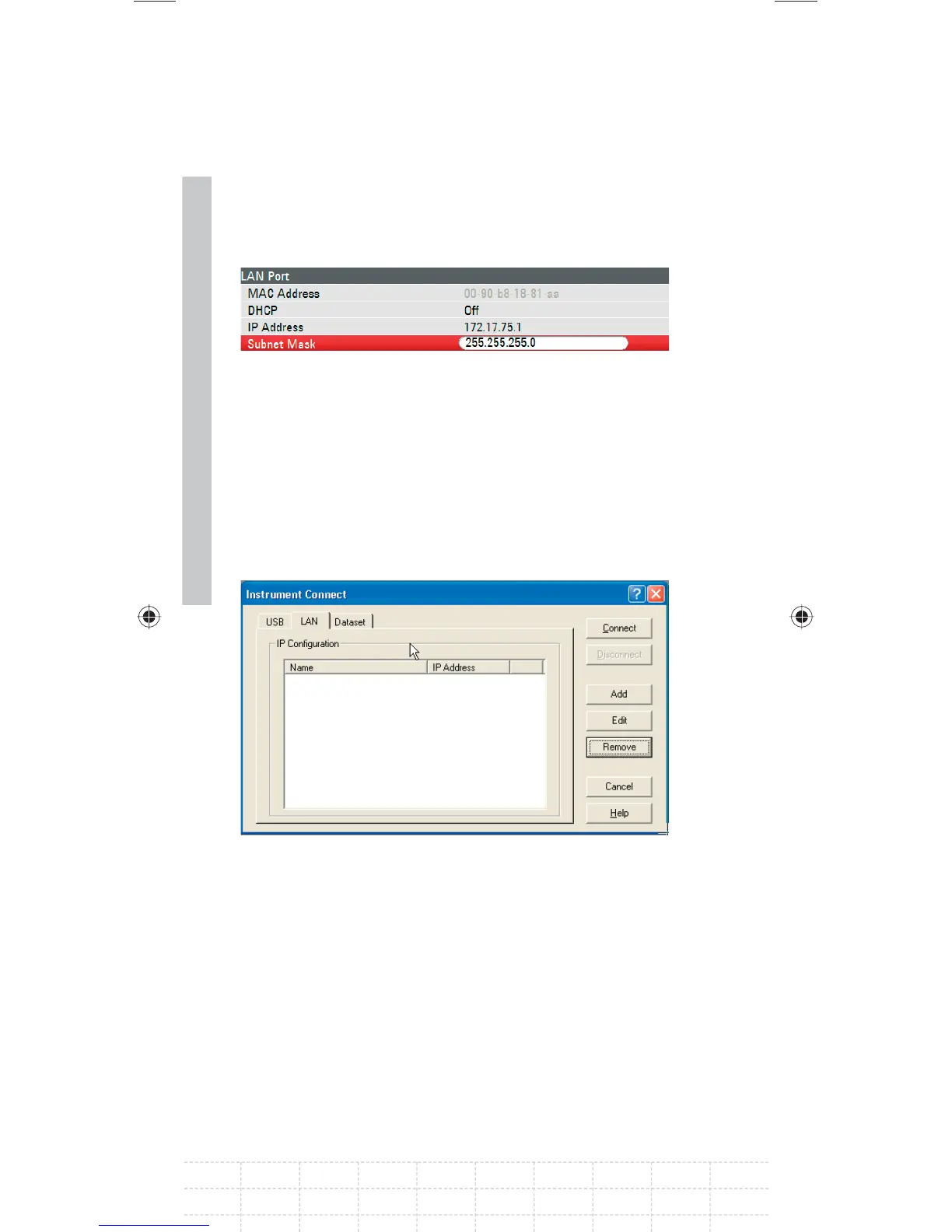

Setting the subnet mask on the R&S FSHFig.:
R&S FSH4View software confi guration:
 Start the R&S FSH4View software on the PC.
 Select the LAN tab in the INSTRUMENT
CONNECT dialog window.
 Click ADD to create a new network connection.
 Enter the name for the new network connection
in the open window, e.g. R&S FSH4.
 Enter the IP address set for the R&S FSH in the
IP Address input fi eld, in this case 172.76.68.24,
and confi rm with OK.
GalaxyE_v1-10_3.indd 64GalaxyE_v1-10_3.indd 64 08.04.2009 15:21:4508.04.2009 15:21:45

R&S FSH series Specifications

General

Input Impedance	50 Ω
Display	640 x 480 pixels
Tracking generator	Optional
Interfaces	USB, LAN
Third Order Intercept (TOI)	+15 dBm typical
Input VSWR	≤1.5:1 (typical)
Input Connector	N (f)
Power Supply	100 V to 240 V
Frequency range	9 kHz to 3.6/8/13.6/20 GHz
Battery life	Approx. 4 hours (standard battery)
