R&S FSH series User Manual

47
E-02
 Enter the desired brightness value with the
rotary knob or the cursor keys in 10 % steps or
enter the value directly via the numeric keys.
 Confi rm with ENTER.
The input range lies between 0 % and 100 %.

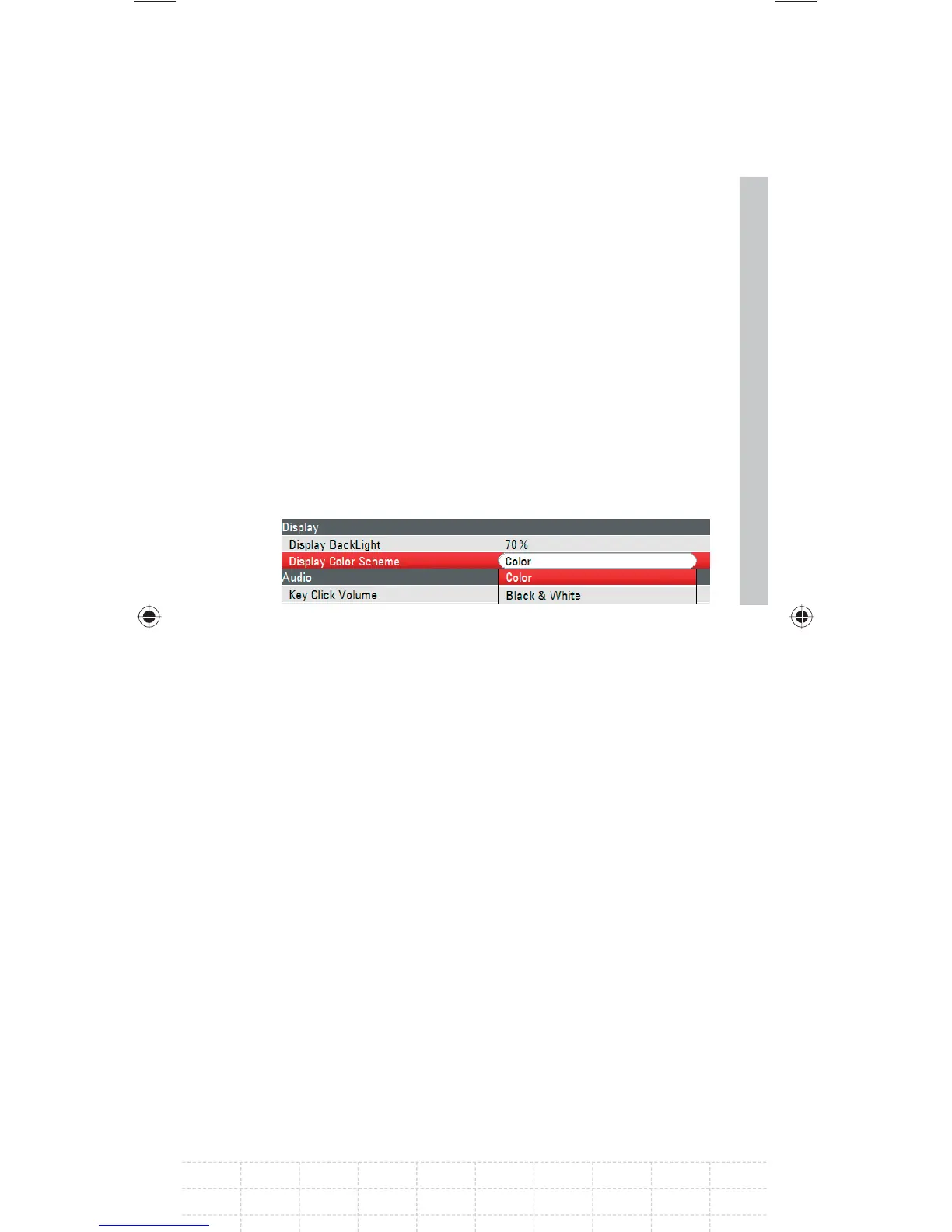

Setting the display color scheme
 Press the SETUP key.
 Press the INSTRUMENT SETUP softkey.
The R&S FSH opens a list of general settings.
 Select the DISPLAY COLOR SCHEME menu item
below the heading DISPLAY with the rotary
knob or the cursor keys (∧ or ∨).
 Confi rm with ENTER.
A submenu opens.
 Select COLOR (color screen display) with
the rotary knob or the cursor keys (∧ or ∨) or
BLACK & WHITE (monochrome display).
 Confi rm with ENTER.
GalaxyE_v1-10_3.indd 47GalaxyE_v1-10_3.indd 47 08.04.2009 15:21:4308.04.2009 15:21:43

R&S FSH series Specifications

General

Input Impedance	50 Ω
Display	640 x 480 pixels
Tracking generator	Optional
Interfaces	USB, LAN
Third Order Intercept (TOI)	+15 dBm typical
Input VSWR	≤1.5:1 (typical)
Input Connector	N (f)
Power Supply	100 V to 240 V
Frequency range	9 kHz to 3.6/8/13.6/20 GHz
Battery life	Approx. 4 hours (standard battery)
