R&S FSH series User Manual

52
PD 1309.6269.62-02
 Select the SET DATE menu item below the
heading DATE AND TIME with the rotary knob
or the cursor keys (∧ or ∨).
 Confi rm with ENTER.
An input fi eld opens. In the input fi eld, the date is
shown in the currently selected format:
dd/mm/yyyy or mm/dd/yyyy.
 Depending on the date format, change the day
(dd) or month (mm) with the rotary knob, cursor
keys or a numerical entry.
 Confi rm with ENTER.
The cursor then automatically moves to the second
fi eld in the date (day or month, depending on the
date format). Proceed with the next two fi elds as
with the fi rst.
Setting the time
 Press the SETUP key.
 Press the INSTRUMENT SETUP softkey.
The R&S FSH opens a list of general settings.
 Press the SETUP key. Select the SET TIME
menu item below the heading DATE AND TIME
with the rotary knob or the cursor keys (∧ or ∨).
 Confi rm with ENTER.

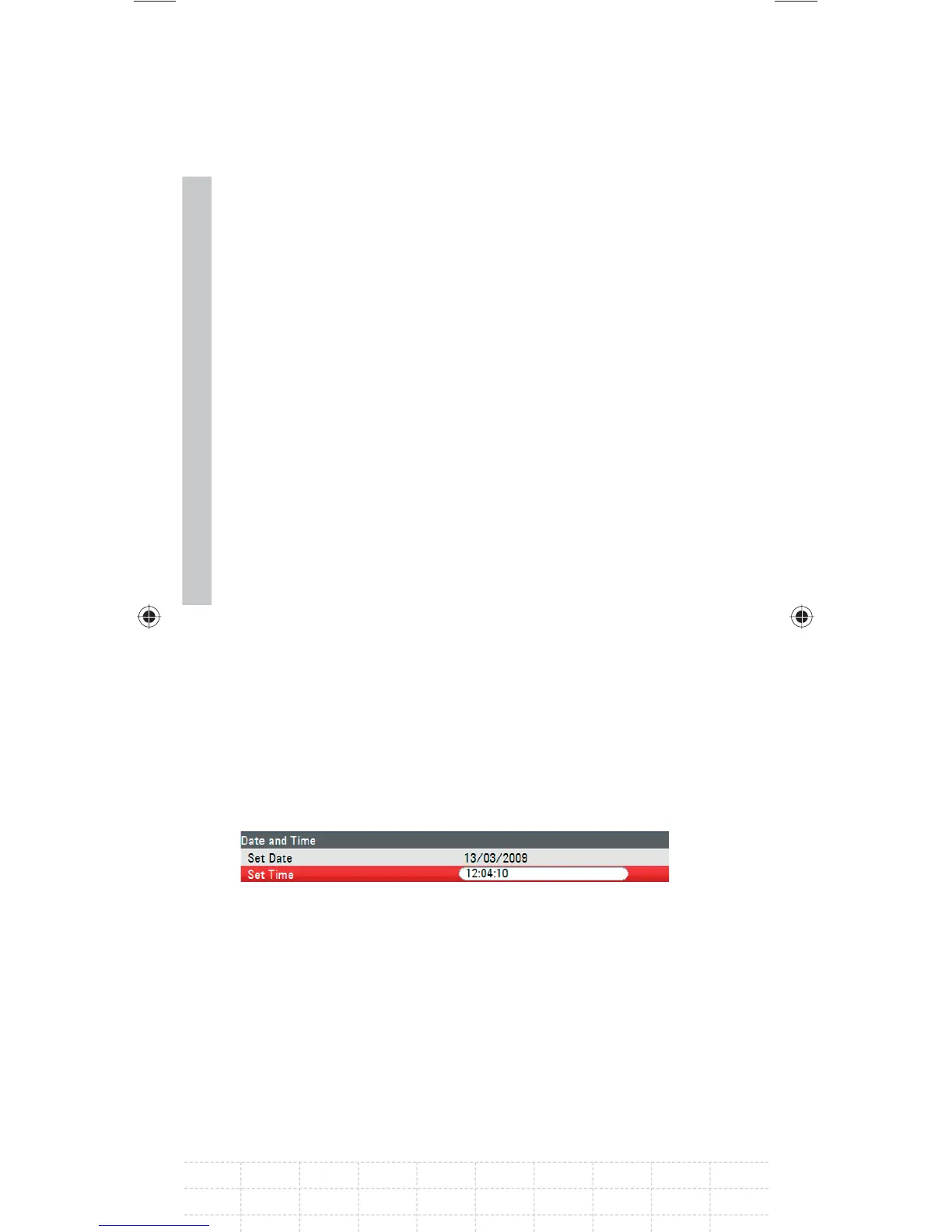

The currently set time appears in “hours:minutes”
format in the input fi eld.
GalaxyE_v1-10_3.indd 52GalaxyE_v1-10_3.indd 52 08.04.2009 15:21:4408.04.2009 15:21:44

R&S FSH series Specifications

General

Input Impedance	50 Ω
Display	640 x 480 pixels
Tracking generator	Optional
Interfaces	USB, LAN
Third Order Intercept (TOI)	+15 dBm typical
Input VSWR	≤1.5:1 (typical)
Input Connector	N (f)
Power Supply	100 V to 240 V
Frequency range	9 kHz to 3.6/8/13.6/20 GHz
Battery life	Approx. 4 hours (standard battery)
