R&S FSH series User Manual

68
PD 1309.6269.62-02

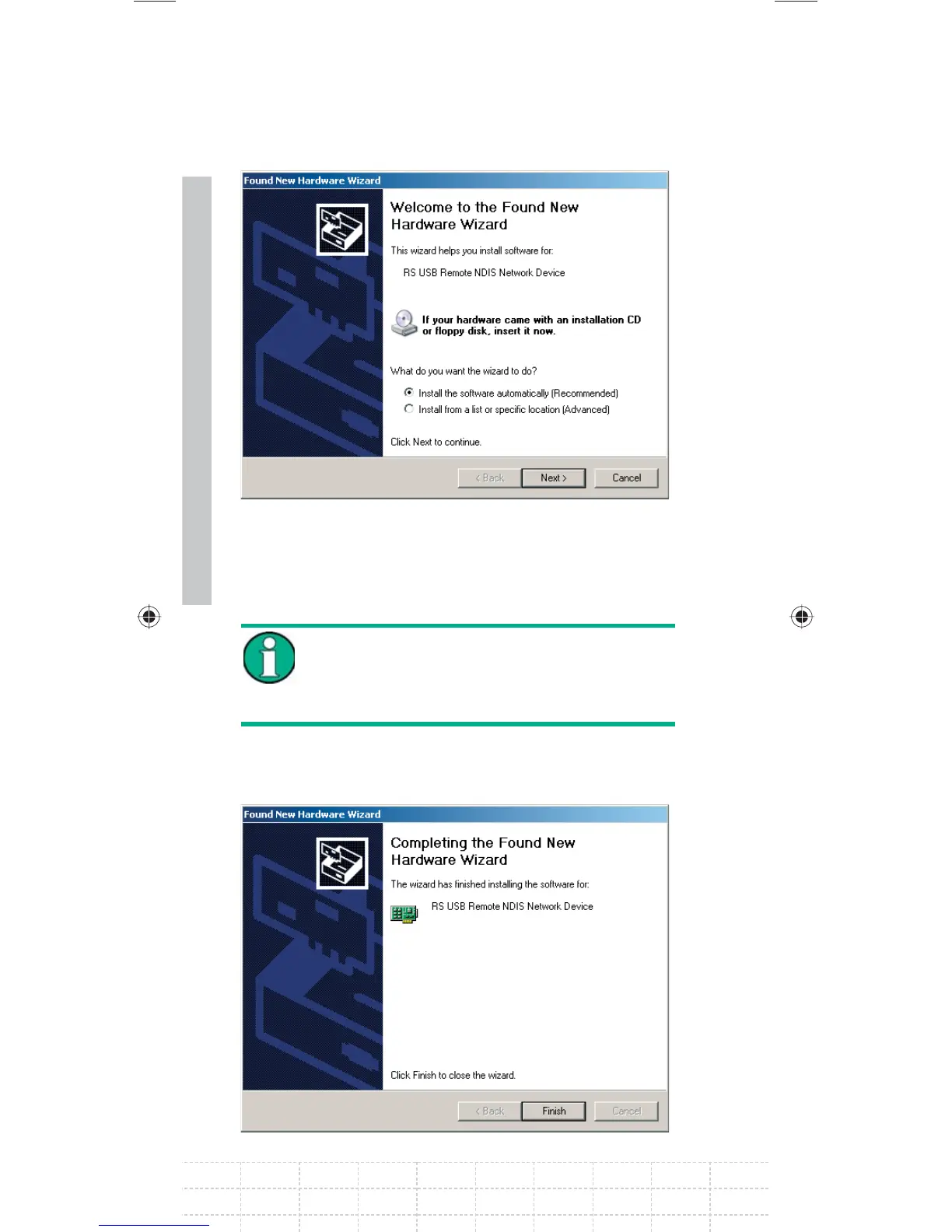

 Select INSTALL THE SOFTWARE
AUTOMATICALLY (RECOMMENDED).
 Confi rm with NEXT.
The R&S FSH4View software must be
installed on the PC. Only then can the
hardware wizard fi nd the necessary drivers
for the USB connection.
After a few seconds, the wizard reports that the
software for the new hardware has been installed.
GalaxyE_v1-10_3.indd 68GalaxyE_v1-10_3.indd 68 08.04.2009 15:21:4508.04.2009 15:21:45

R&S FSH series Specifications

General

Input Impedance	50 Ω
Display	640 x 480 pixels
Tracking generator	Optional
Interfaces	USB, LAN
Third Order Intercept (TOI)	+15 dBm typical
Input VSWR	≤1.5:1 (typical)
Input Connector	N (f)
Power Supply	100 V to 240 V
Frequency range	9 kHz to 3.6/8/13.6/20 GHz
Battery life	Approx. 4 hours (standard battery)
