3 | Product description
80.06.083_iCombiPro-iCombiClassic_IM_en-US 13 / 100
3 Product description

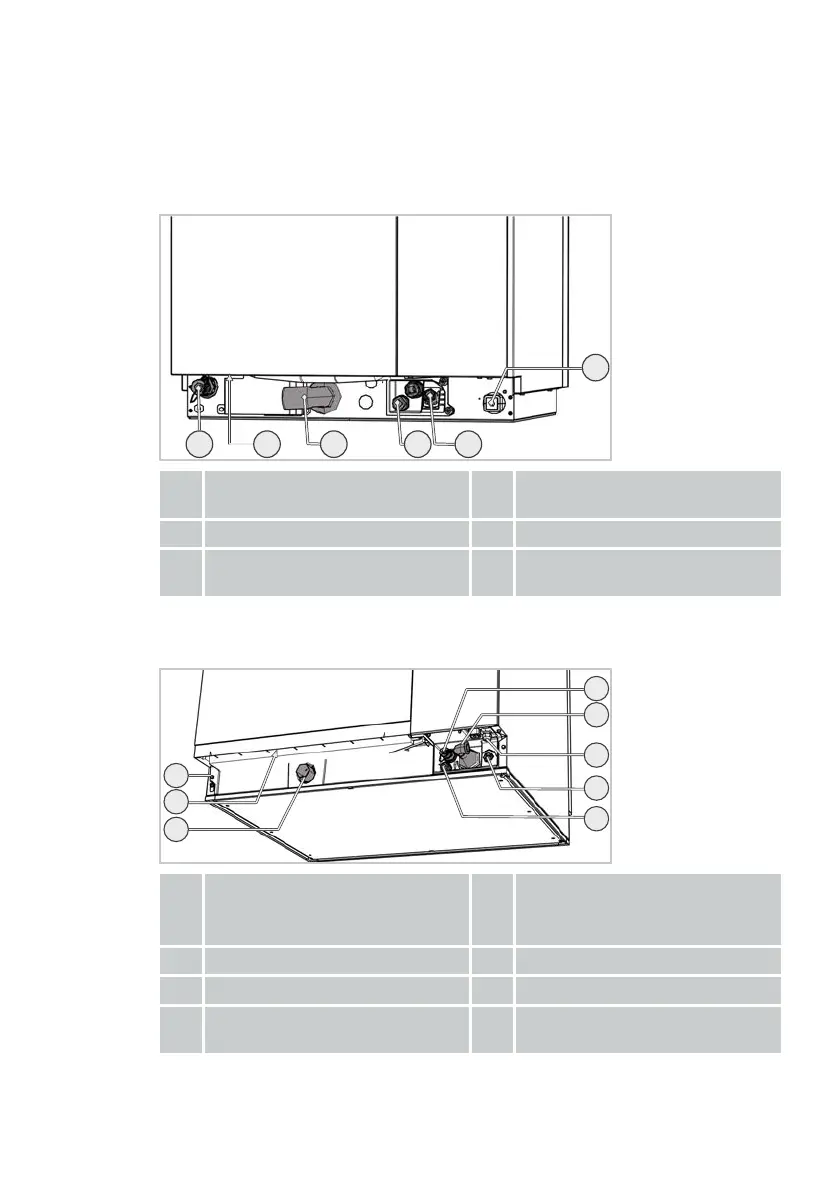

3.1 Unit description
Unit size XS GN
The connections for the installation are located on the rear side of the unit:
1
23456
1 Equipotential bonding (Earth
ground)
2 Water connection
3 Electrical connection 4 Drain connection
5 Safety overflow for wastewater
connection
6 Network connection
Unit size 6 half size to 10 full size GN
The connections for the installation are located on the rear side of the unit:
1
2
4
8
6
7
3
5
1 Network connection 2 Only for gas units: gas connection
For electric units only: electrical
connection
3 Power supply 4 Water connection
5 Optional connection 6 Wastewater connection
7 Safety overflow for wastewater
connection
8 Equipotential bonding (Earth
ground)
